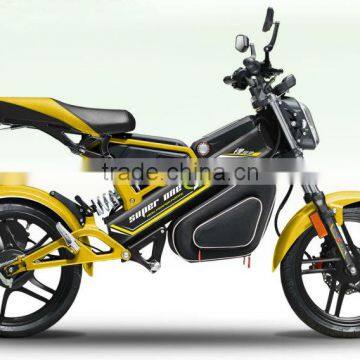

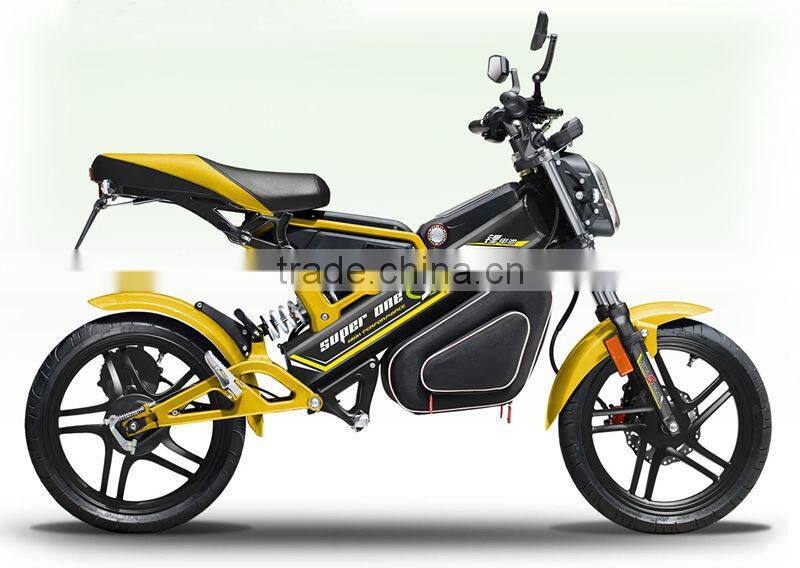

Folding Electric Car ZF-KY Electric Car Made in China

Name: Folding Electric Car ZF-KY Electric Car Made in China
Brand: ZF-KY
Availability: InStock

FOB Price

US$ 900 - 1,300 / Carton

74 Cartons(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Stalls 2-speed, Automatic Transmission
Rated Power 1500W
Maximum speed 45
FR/RR hydraulic disc / Drum
L*W *H 1650 *1100 *650

Technical
Engine
Motor type:	(DC bruchless Automatic engine)
Stalls:	(2-speed, Automatic Transmission)
Rated Power:	1500W
Maximum speed:	45
Transmission System:	(Directly)

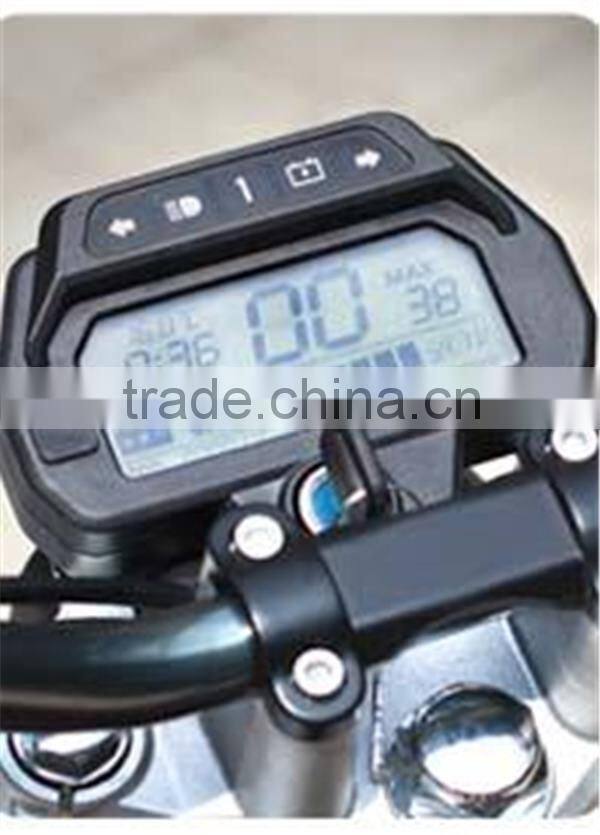

Instrument type:	(Full function LCD meter)
Lighting, signaling system:	LED

CHASSIS
Rear Suspension Type:	(Fork, Central shock absorber)
Front brake mode:	(Manual hydraulic disc brakes)
After brake mode:	(Manual Drum Brakes)
Front tire specifications:	80/80-14 (Vacuum tire)
Rear tire specifications:	80/80-14 (Vacuum tire)
BATTERY SYSTEM
Battery Type	48V/20Ah(lithium battery)
Distance per charge	80Km
Hundred kilometers power consumption:	2KWh
Charger specification:	AC90-220V 3A
Charging time:	8h
Charger input voltage :	AC90-220V 50-60HZ
Controller under voltage:	40V
Controller current-limiting	28A
DIMENSIONS
Overall dimensions (mm):	1650×1100×650
Folding size(mm):	1045×1025×500
Packing size( mm):	1120×1045×310
Dry. Weigth ( kg):	48(Including Battery)
Gross weight(Kg):	56
Container Loading(unit):	20(Container) 74 / 40(Container) 170
Seat Height(mm):	760
Wheelbase(mm):	1150
Min. Ground Clearance(mm):	220
Max. Permissionable Weight(Kg):	150
Rider Capacity:	1
Climbing ability :	45%(Slope)
Body type :	All-aluminum composite

*Features*

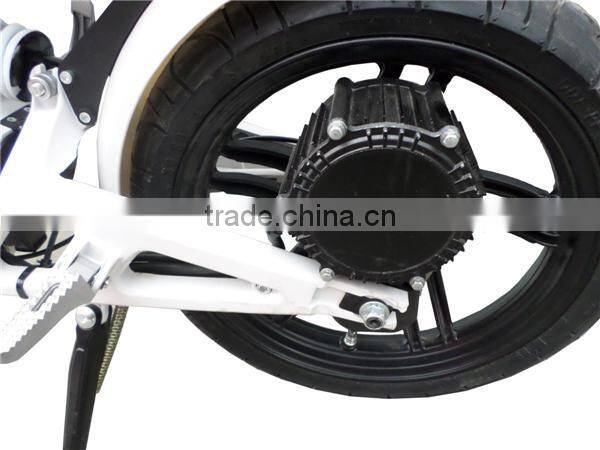

1.Become a direct-drive motor:
2.The ternary lithium battery:
3.Aluminium body:

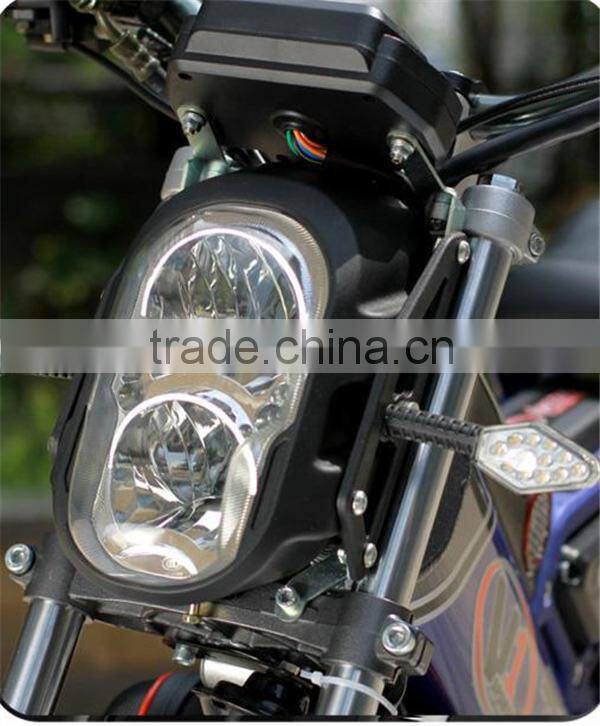

4.LED lamps and lanterns:
5.Iiquid crystal instrument:

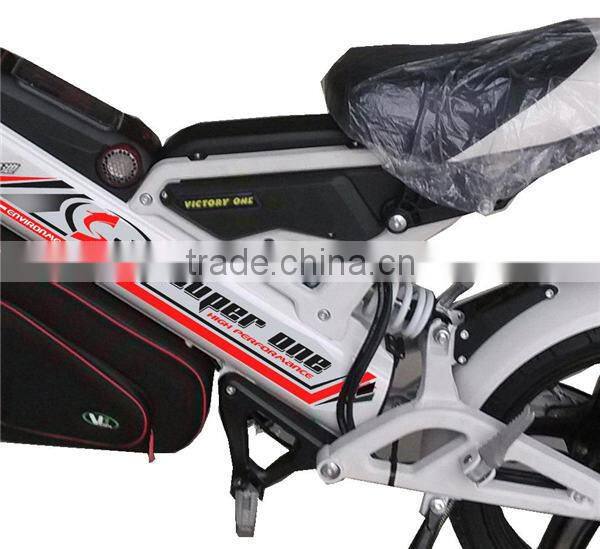

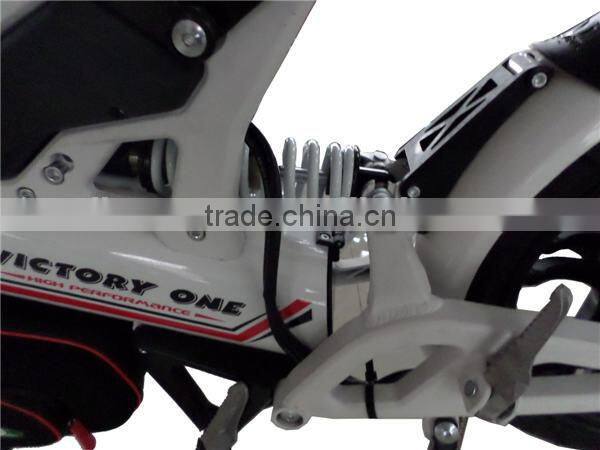

6.shock absorber :

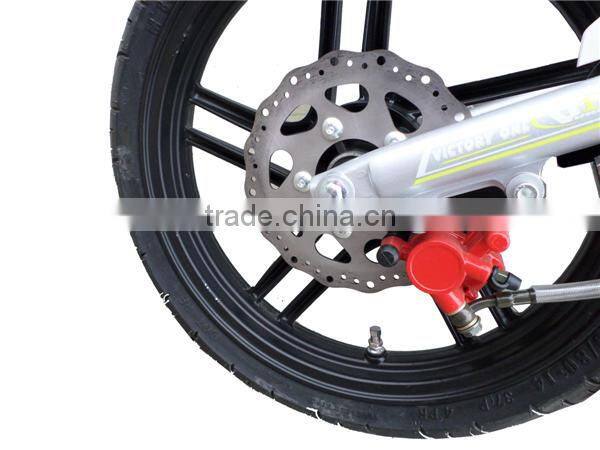

7.Front disc brake:

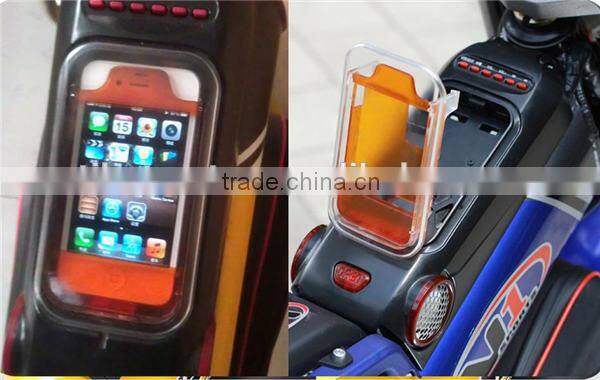

8.Multi-function music player :

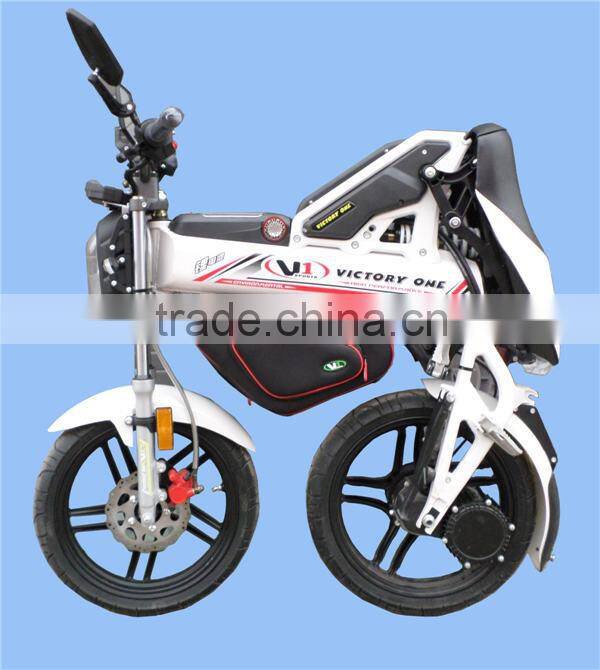

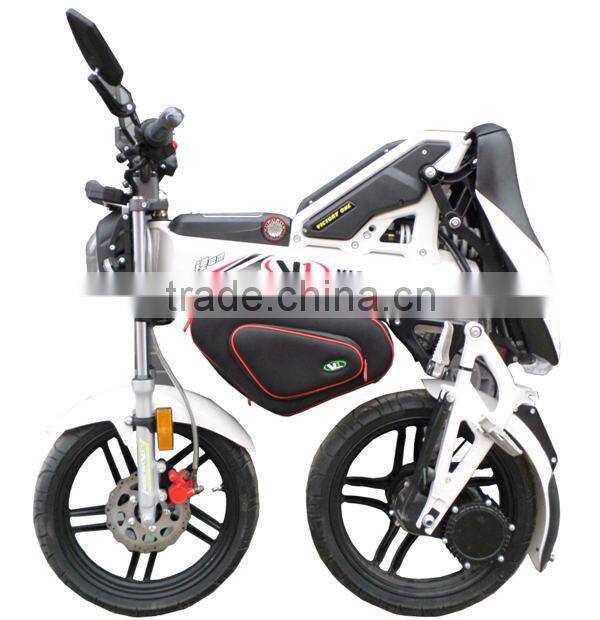

9.Quick folding :

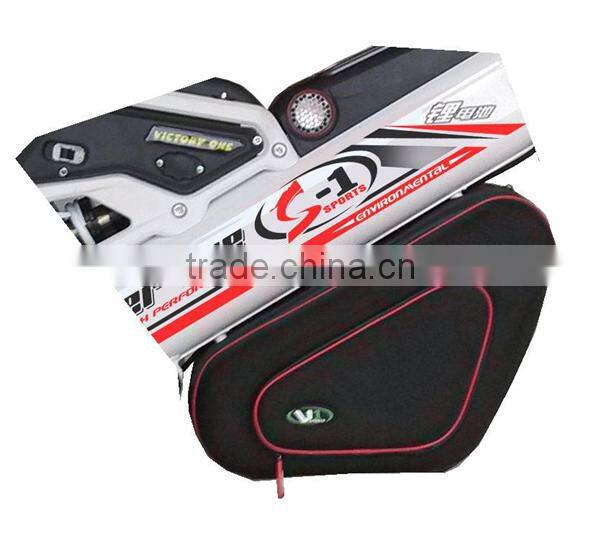

10.Waterproof travel packages:
11.Folding hand quickly :

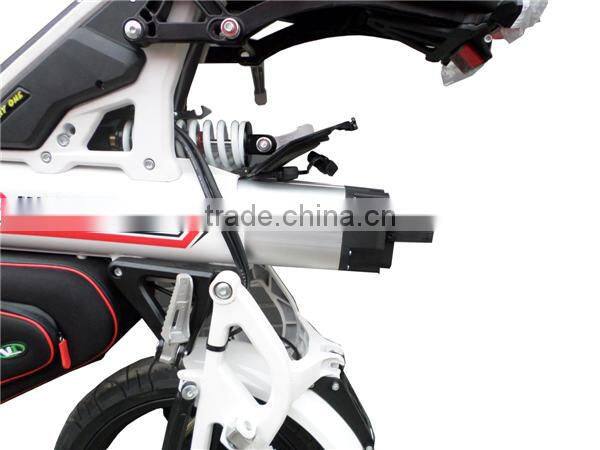

12.Quick disassembling battery :
*Others*
Optional color :	yellow/red/blue/black//green/white
Optional battery:	48V24Ah,48V28Ah
Optional charger :	5A/10A

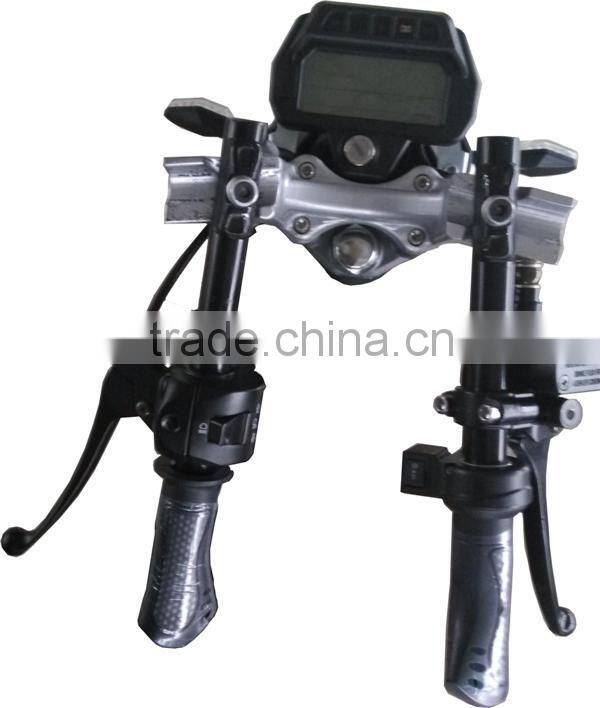

Optional handlebar:	Folding (Optional folding handle)
