Specifications
Three wheel motorcycle150cc,200cc engine
water/air cooled
Drum brake

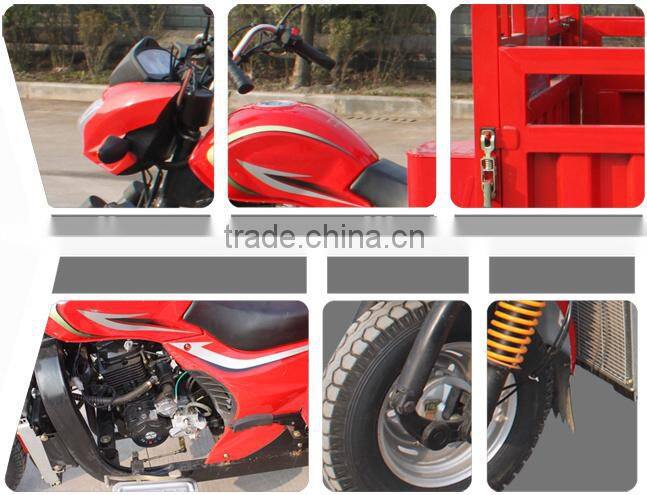

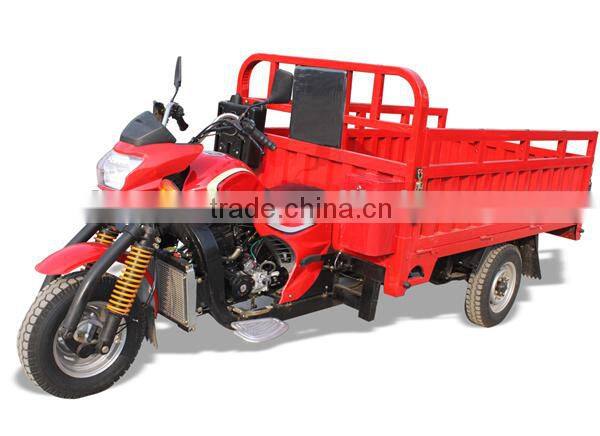

Three Wheel Motorcycle Adult Tricycle Cargo Tricycle
| Specification | |
| POWER SYSTEM | |
| Engine | single cyclinder,water cooled, four stroke |
| Displacement | 197cc |
| Bore and Stroke (mm) | 63.5*62.2 |
| Compression Ratio | 8.9:1 |
| Max.HP | 9/7500R/min |
| Max.Torque(N.m/rpm) | 14.2/5500r/min |
| Max.Speed | 60km/h |
| Lubrication | Splash Lubrication |
| Ignition | CDI |
| Starter | Electric/Kick |
| CHASSIS | |
| Front suspension type | Fork |
| Rear Suspension Type | Steel |
| Front Brake | Drum |
| Rear Brake | Drum |
| Parking | Drum |
| Front tire | 4.50-12 |
| Rear tire | 4.50-12 |
| Battery | 12V18Ah |
| DIMENSIONS | |
| L*W*H(mm) | 3450*1310*1380 |
| Seat Height | 850mm |
| Wheelbase | 2210mm |
| Turning radius | 42 |
| Min.Ground Clearance | 160mm |
| Max.Loading | 300kg |
| Passenger | 1 |
| Net Weight | 315kg |
| Fuel Tank | 13L |
CBU :Iron frame + carton(unassembled :headlight , Fr. Wheel , loosen rear shock-absorbing etc)
SKD :One box for engine , one wooden box for one unit motorcycle parts
CKD : all parts seperately except for engine with a carton box
Ability of quality control
1) To guarantee good quality for every delivery, strict inspections are performed at the each stage of the production process, from raw material to finished product. All of our quality management is under ISO system.
2) All of our products were through the CCC inspection of China and accord with domestic standards in China. Certainly the CCC certification is conform to the emissions standard E-MARK of Europe.
3) Part of models were pass the certification of E-MARK, ECE, EEC of European Union. And obtained EPA, DOT in USA. In addition, some products had the certification OTTC of Russia, and certification of Brazil, Chile, Argentina and other countries.
4) We have 15 years full experiences of motorcycle manufacturing, researching, developing and sel
Unique Feature:
1. Our patented product with excellent performance and most competitive prices.
2. ODM or OEM order is acceptable.
3. According to the customer’s market requirements, accept the product design-self of customer, meet the needs of the customer diversification.
4. Fast and stale supply of parts, and satisfy the customer’s service after the market to improve user’s satisfaction
5. we offer 1% easy damage parts free
