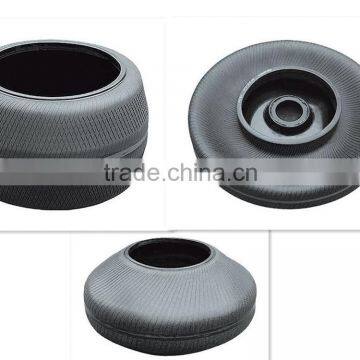

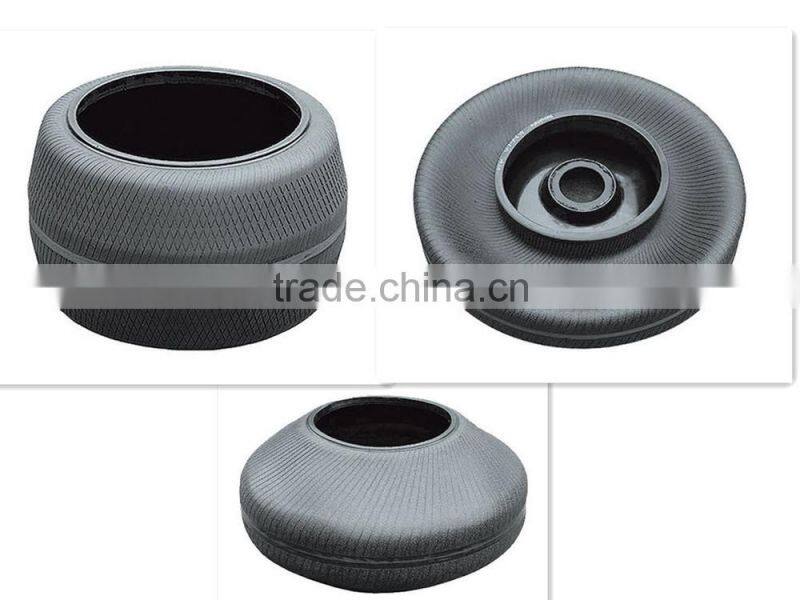

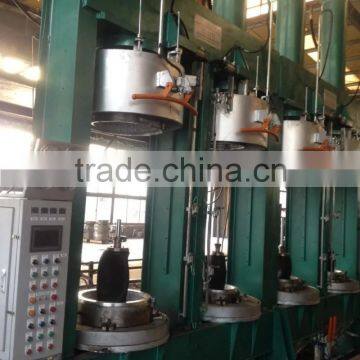

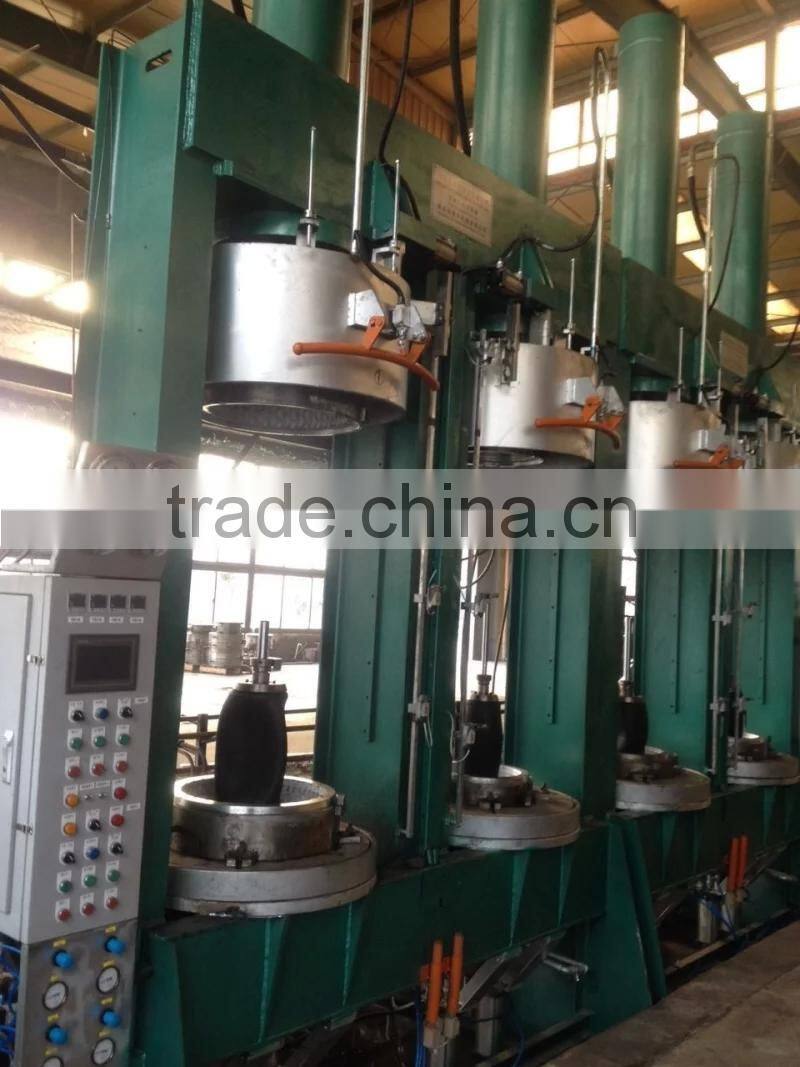

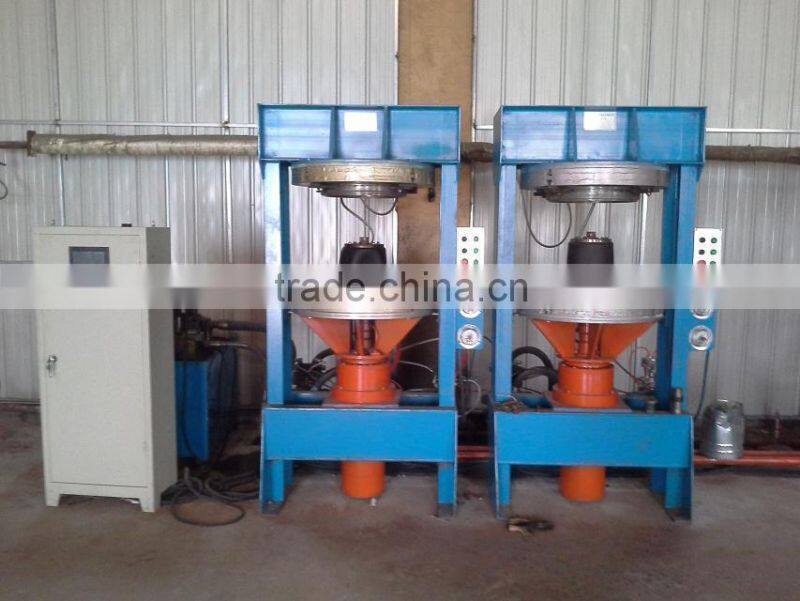

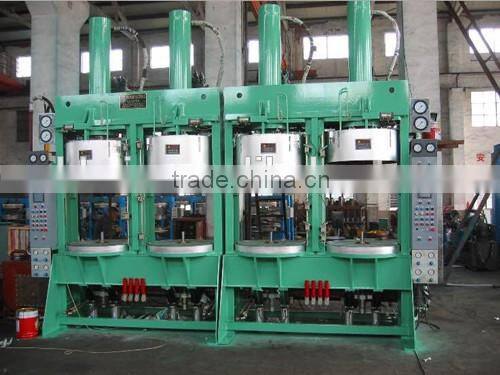

High Capacity Rubber Capsule Vulcanizing Machine
It applies to 4.00-12 ~ 6.50-12 tire size
1. The clamping force: 80 tons
2. Hot plate diameter: φ760mm
3. Hot plate spacing: 900mm
The cylinder stroke: 800mm.
5. The cylinder diameter: φ250mm
6. Plunger Material: chilled cast iron
7. Working layers: 1 layer
8. formal structure: two conjoined
9. The hydraulic system operating pressure: 0-16Mpa
10. Motor power: 4KW
11. Power supply: 380V 50HZ

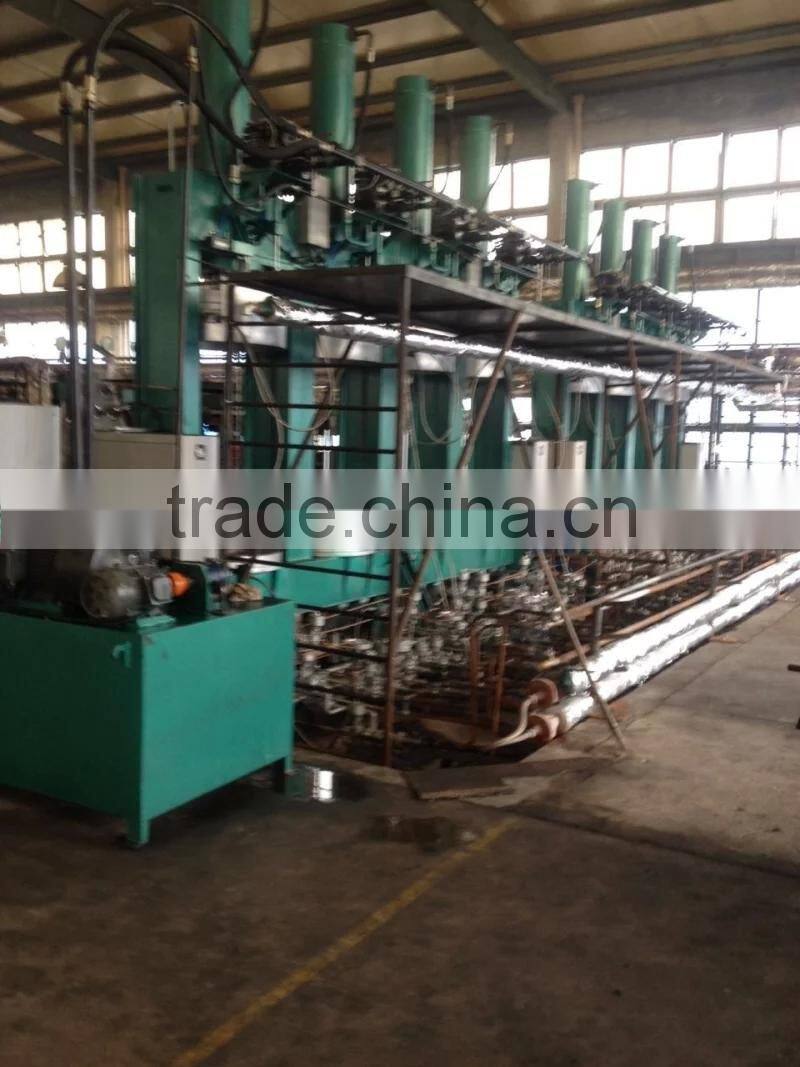

12, three sets of vulcanizing machines share a hydraulic station.
The electrical part:
PLC Taiwan Yonghong, five-inch touch screen.
use domestic Chint AC contactor.
solenoid valve using domestic famous.

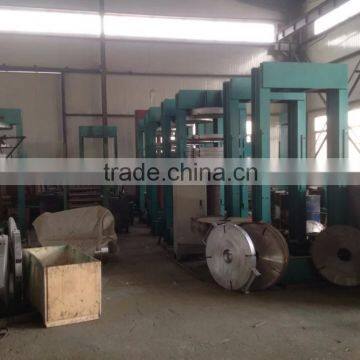

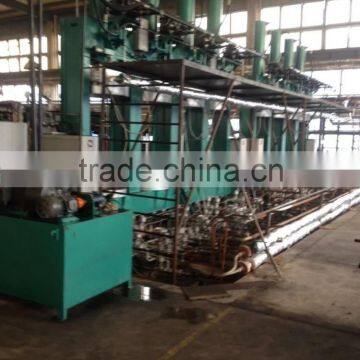

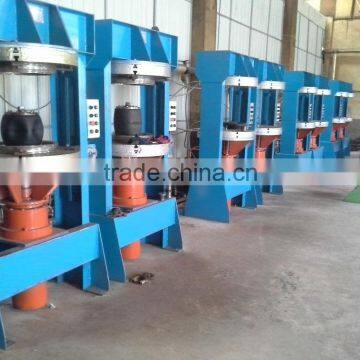

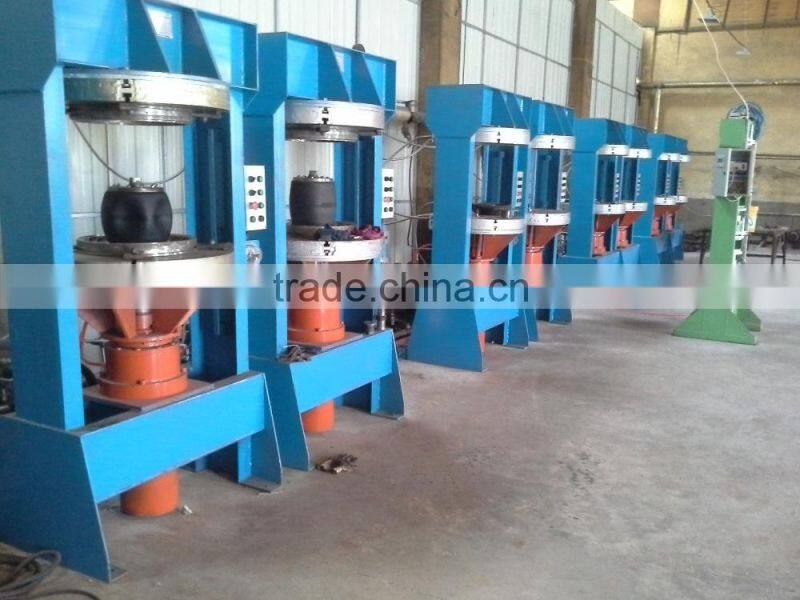

our working machine in factory,when you visit our factory, we can show you our machine in real production nearby factory.
n

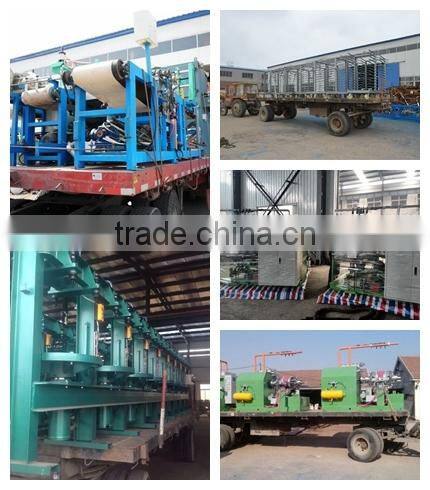

For FCL goods, we usually pack machines with stretched film and then load them to the
container. to ensure safety, we will fix machine with steel .
For LCL goods, we usually pack machines with standard wood boxes first, and then they will be transported .
1 Guarantee : 2 years ,manufacturer sell, We offer lifetime technical support
2After sales:
1 once problems appear, we will reply in 24 hours. And give solutions
2 Engineers available to service machinery overseas; Send the engineers to debug the machines
and instruct your workers to operate the machines, but you are responsible for hound plane tickets
, visa.living and eating, in your place
3 logo design
We can design machine logo according to your request by send us your logo picture
4 Original B/L
We can offer you Original B/L and commercial invoice, packing list , each 3 pcs by TNT
5 Certificate of origin
We can offer you certificate of origin, so that you can get some privilege of import tax.

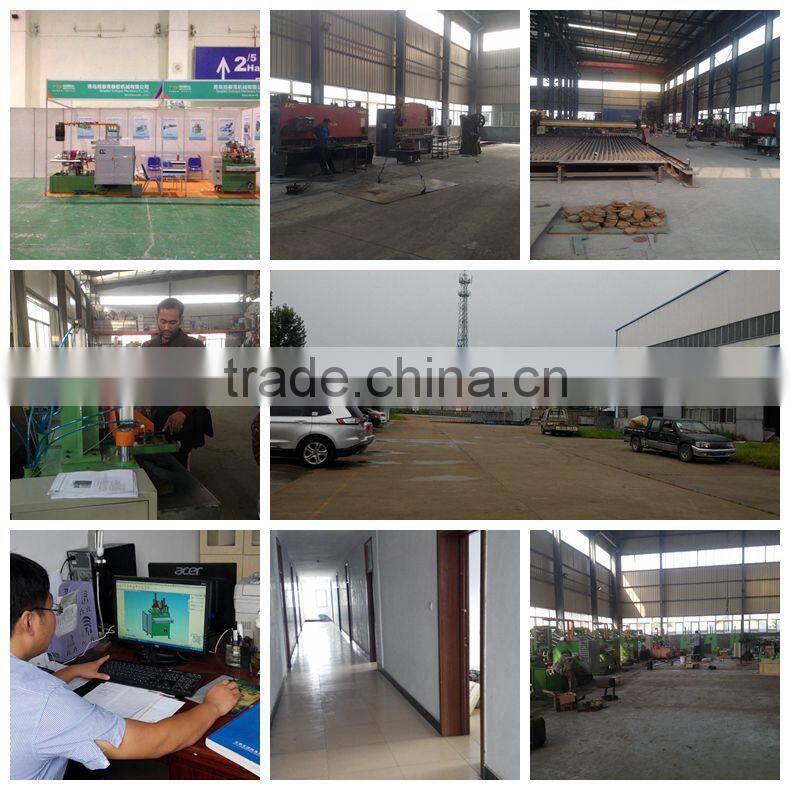

Qingdao Honghesheng Industry Co., LTD, which is located in the west coast of Qingdao economic district, with 10 million registered capital. The company covers an area of 5000 square meters with 26 professional and technical staffs and 5 senior engineers. The technical staffs have working experience in large tire enterprise who can design more suitable equipment for the customer as for tire production process. Also they can provide new factory site planning and other services.
The company’s main products are: Rubber kneader, rubber mixing mill, rubber sheet cooling machine, inner tube production line,tyre production line, vulcanizing press, waste tyre recycling plant…The products have been sold to 20 provinces in China and exported more than 10 countries and areas. The stable quality and timely service obtain the positive feedback and are high praised.
“Quality, integrity, innovation, service”is the aim of our company. We would like to promote cooperation with national new and old customers and foreign clients and seek common development.
1. Q: Are you a manufacturer or training company?
A: We are the manufacturer. We have our own plant,worker and techniques research developing department.
2 .Q: Where is your factory located? How can I visit there?
A: Our factory add is Tieshan industrial Park, Jiaonan, Qingdao, Shandong province, China.
Nearest airport is Qingdao liuting international airport
Kindly send plane information in advance, so that we can pick you up at the airport, and book hotels as you require.
3. Q: What are your hot sale machine?
A: Our rubber and plastic machines are popular in the foriengn market. And main products are the motorcycle, electric bike and bicycle tire making machine.
4. Q: How does your factory do regarding quality control?
A: Quality is priority and we have our own quality control department. We win make a strick inspectin before the machines leave the factory.
5 .Q: Are the techncal parameter is fixed?
A: Basically, each model corresponding to the related machine. But we can design different type machine according to the client’s requirement.
6 How to send us your enquiry? Kindly tell me answer
-1 Leave your cellphong? Skype? whatsApp?viber? so that we can talk efficiently
