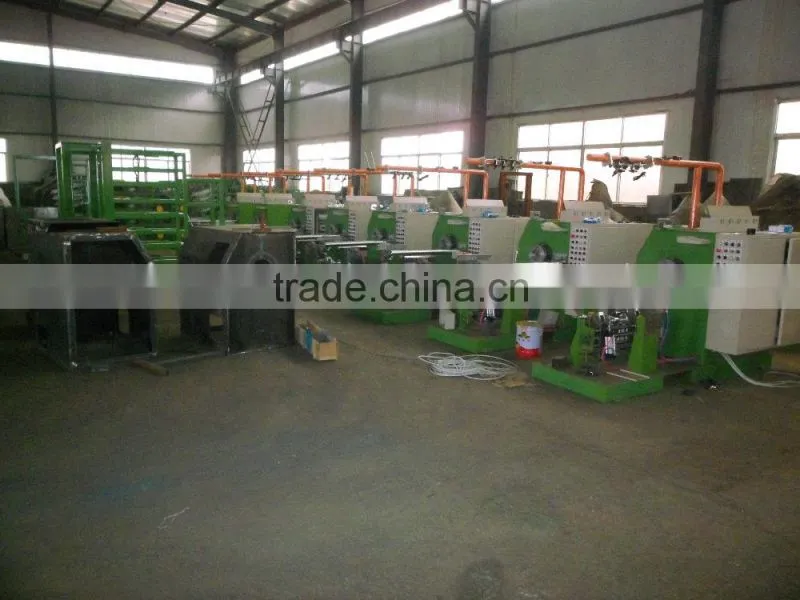

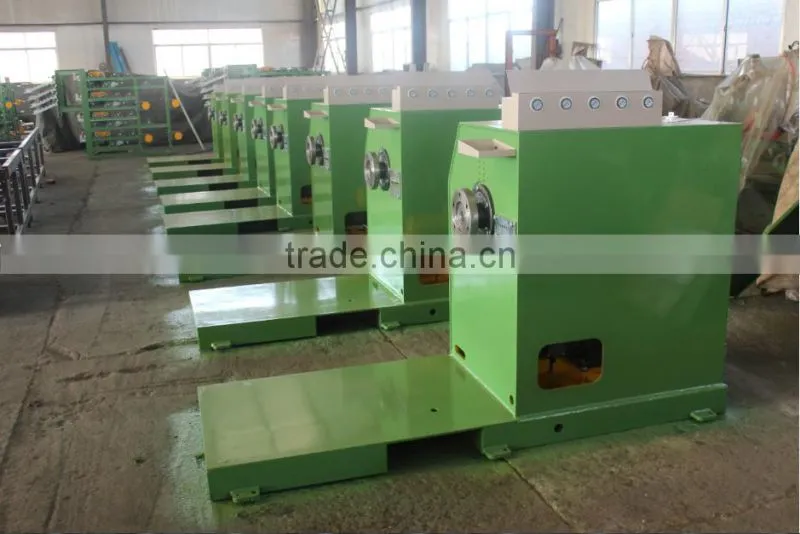

Tyre building machine
High Quality and Stable Technology

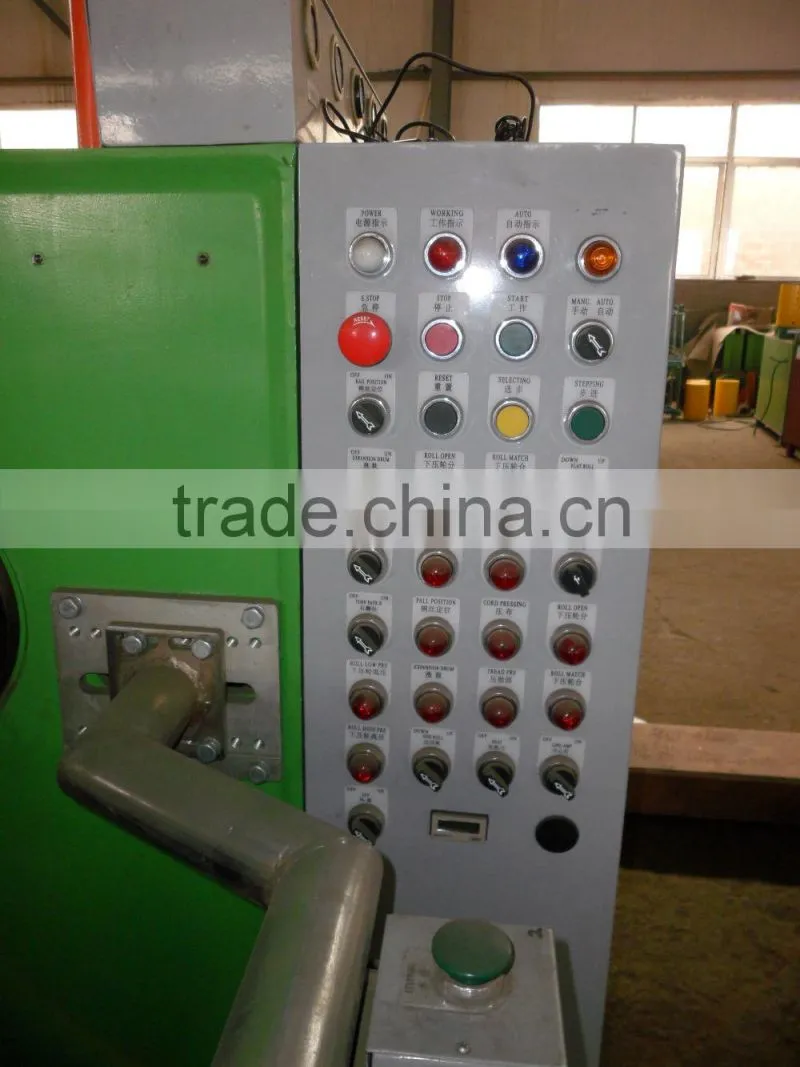

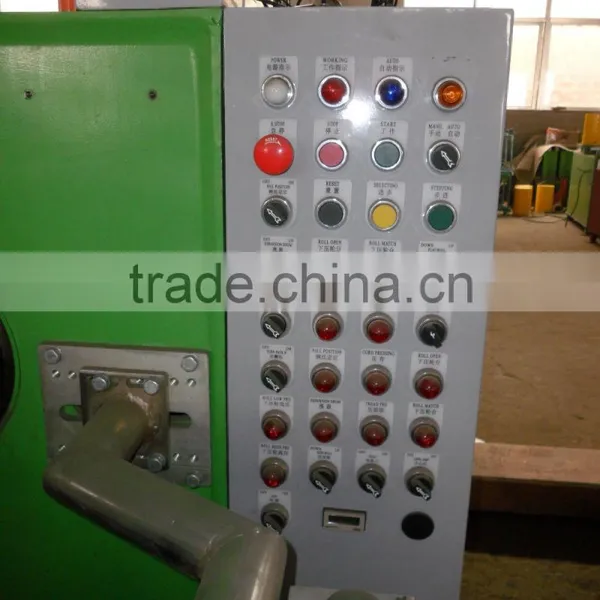

PLC control system
High Efficiency
Long using time
Labor cost saving
1.Usage:

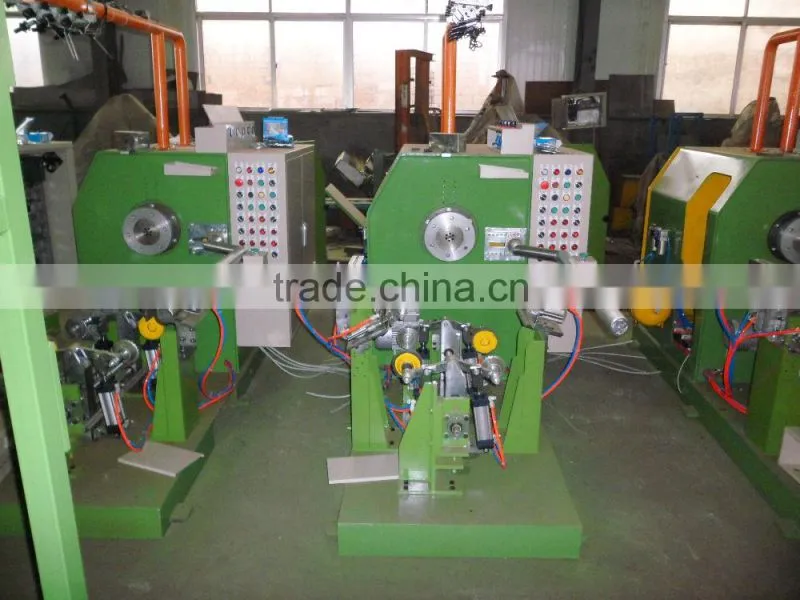

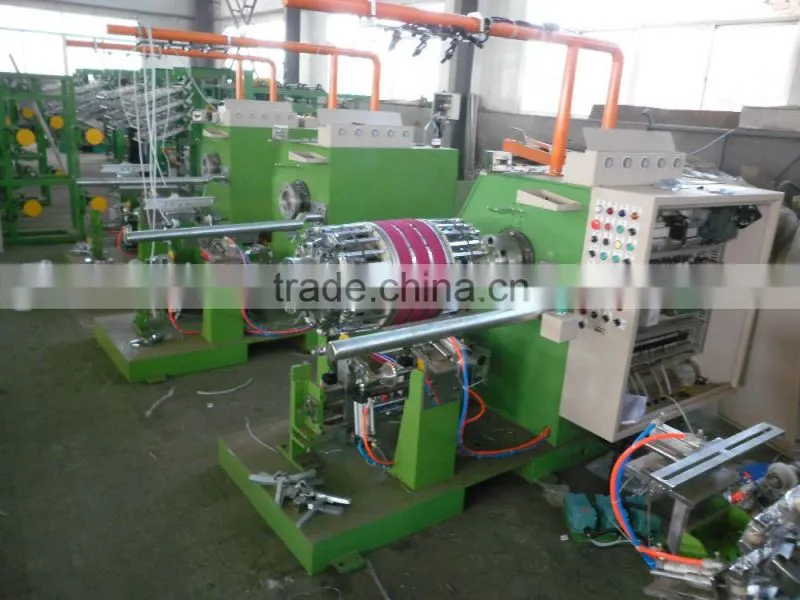

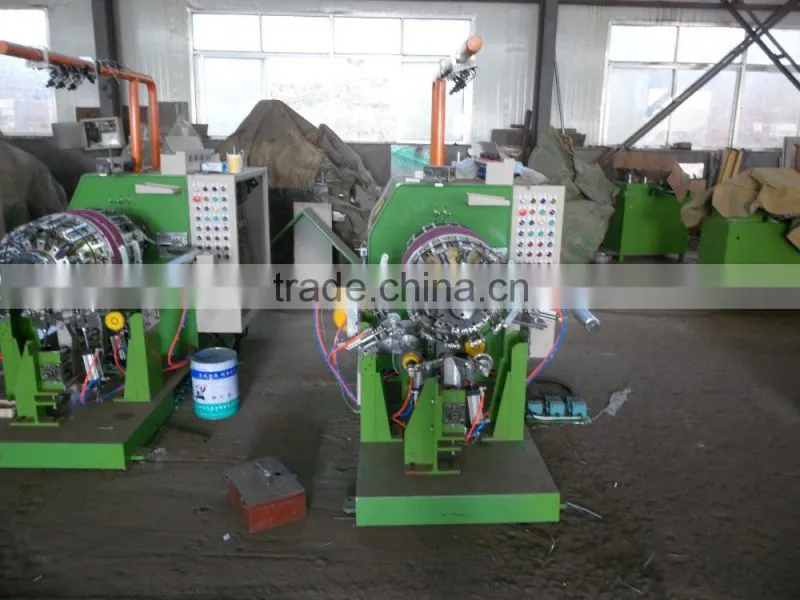

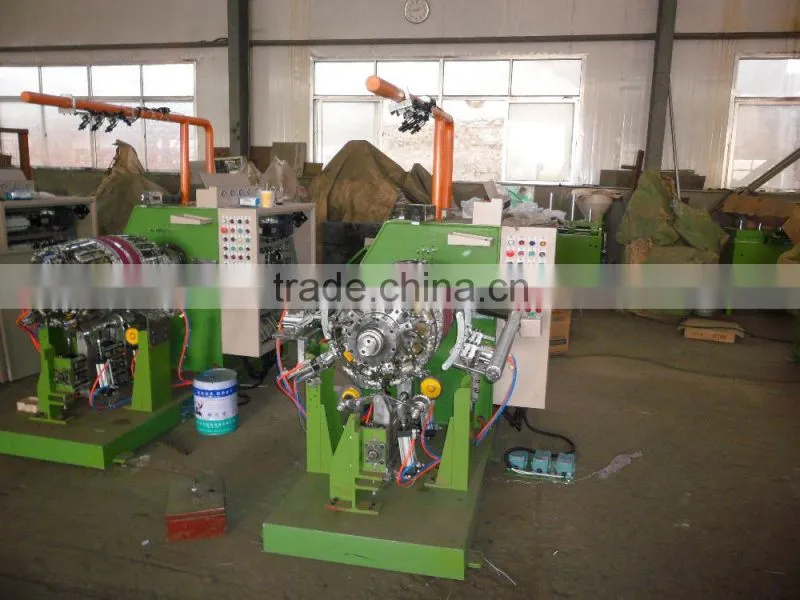

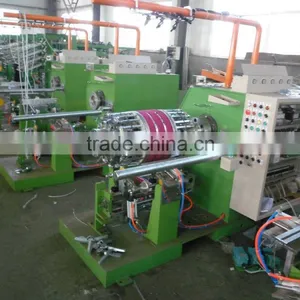

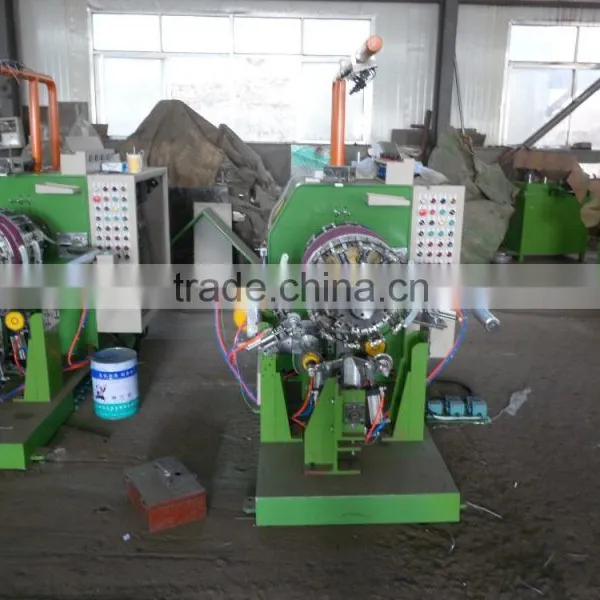

motorcylce tyre spring turn-up building machine is commonly used for motorcycle tyre building equippment in domestic & overseas at present, mainly used for produce motorcycle tyre and motorcycle tubeless green tire building. integration of ply applying, bead applying & cord turn-up, high degree of automation, good quality green tyre building, easy and simple operation, it is advance tyre building equipment in China.
2.Features:

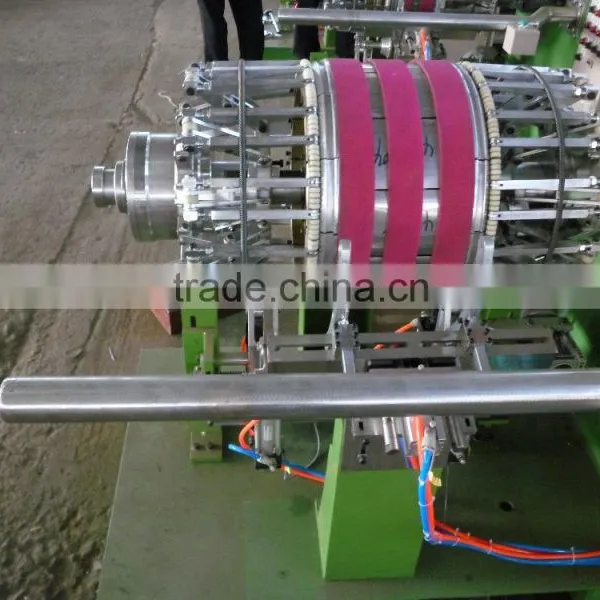

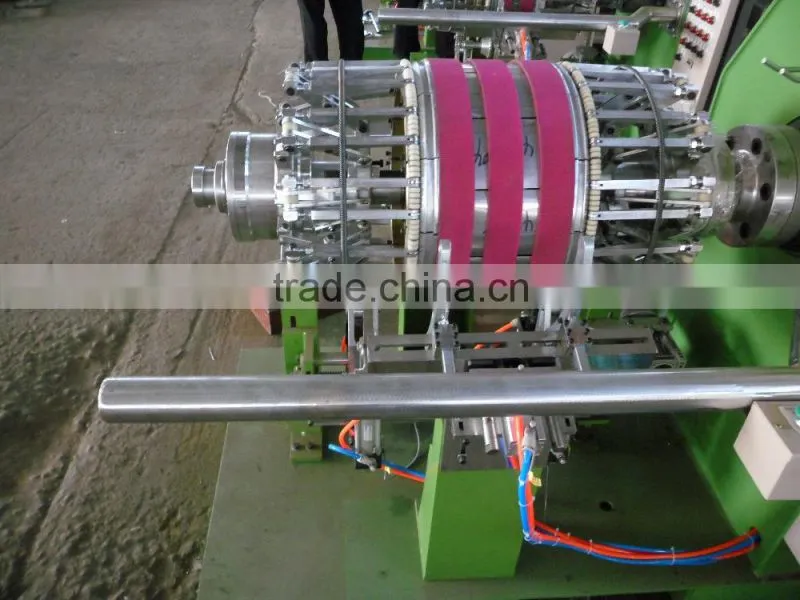

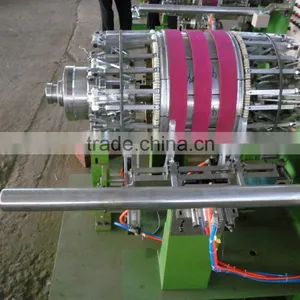

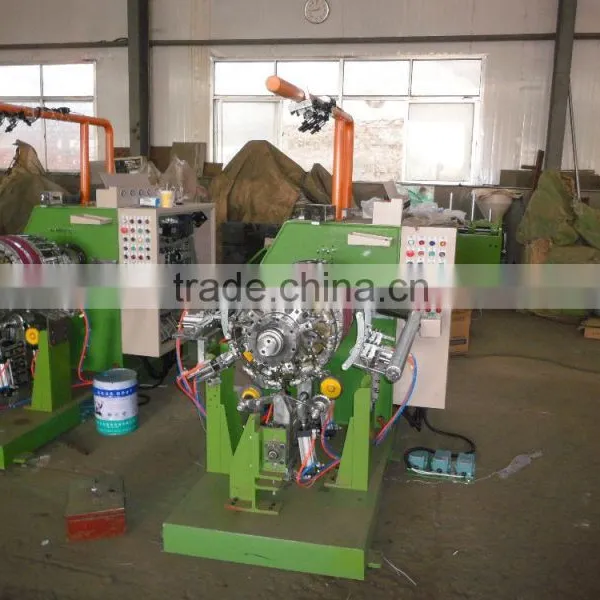

It consists of building drum, down cpmpression roller, bead suction device, cord fabric, tread infrared centering device, compacting mechanism, servicer etc.
3.Technical spcifications:(Special specifications can be designed according to customers' requirements)
Size of tire |
Locomotive Tyre |
Nylon cord |
8¹¹-18¹¹ |
Cord fabric roll diameter(max) |
400mm |
lnner cloth roll diameter(max) |
300mm |
Revolution of drum |
180/60rpm |
Main drive motor |
2.2kw |
Under stitcher motor |
0.55kw |
Ply servicer motor |
1/2HP×4P×1/20/each ply |
Compressed air |
5-7kg/cm² |
Overall dimension |
2300L×2200W×2050H |
Building speed |
2PLY building 500pcs/8hrs 4PLY building 400pcs/8hrs
|
1 Guarantee : 2 years ,manufacturer sell, We offer lifetime technical support
2After sales:
1 once problems appear, we will reply in 24 hours. And give solutions
2provide facory layout drawing . Engineers available to service machinery overseas; Send the engineers to debug the machines
.

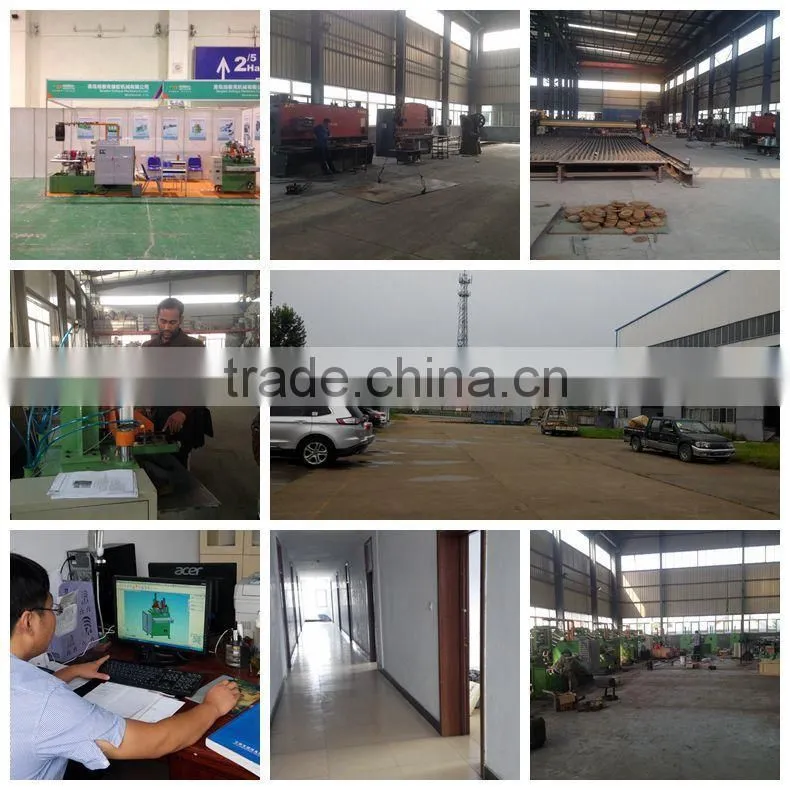

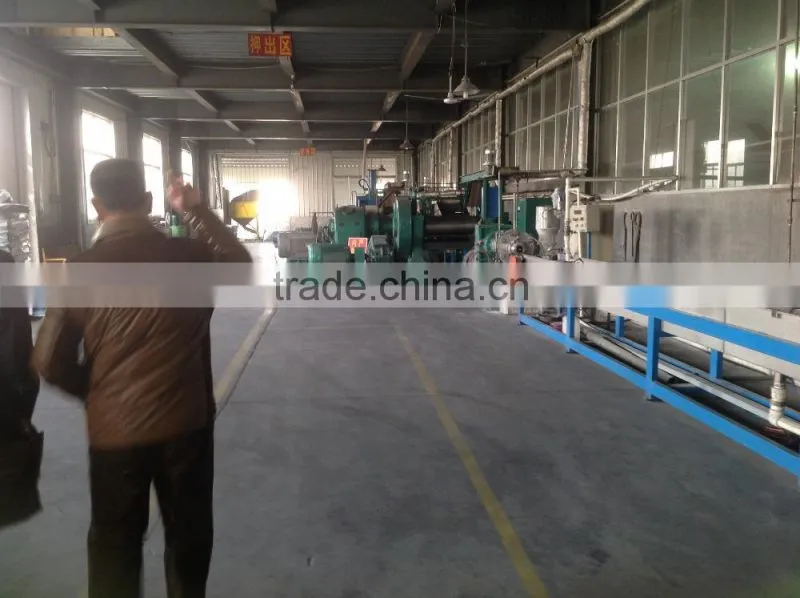

Qingdao Honghesheng Industry Co., LTD, manufacturer of rubber machine,which is located in the west coast of Qingdao economic district, with 10 million registered capital. The company covers an area of 5000 square meters with 26 professional and technical staffs and 5 senior engineers. The technical staffs have working experience in large tire enterprise who can design more suitable equipment for the customer as for tire production process. Also they can provide new factory site planning and other services.
The company’s main products are: Rubber kneader, rubber mixing mill, rubber sheet cooling machine, inner tube production line,tyre production line, vulcanizing press, waste tyre recycling plant…
welcome to visit our factory!
1. Q: Are you a manufacturer or training company?
A: We are the manufacturer. We have our own plant,worker and techniques research developing department.
2 .Q: Where is your factory located? How can I visit there?
A: Our factory add is Tieshan industrial Park, Jiaonan, Qingdao, Shandong province, China.
Nearest airport is Qingdao liuting international airport
Kindly send plane information in advance, so that we can pick you up at the airport, and book hotels as you require.
3. Q: What are your hot sale machine?
A: Our rubber and plastic machines are popular in the foriengn market. And main products are tyre recyling plant and other machine.
4. Q: How does your factory do regarding quality control?
A: Quality is priority and we have our own quality control department. We win make a strick inspectin before the machines leave the factory.
5 .Q: Are the techncal parameter is fixed?
A: Basically, each model corresponding to the related machine. But we can design different type machine according to the client’s requirement.
