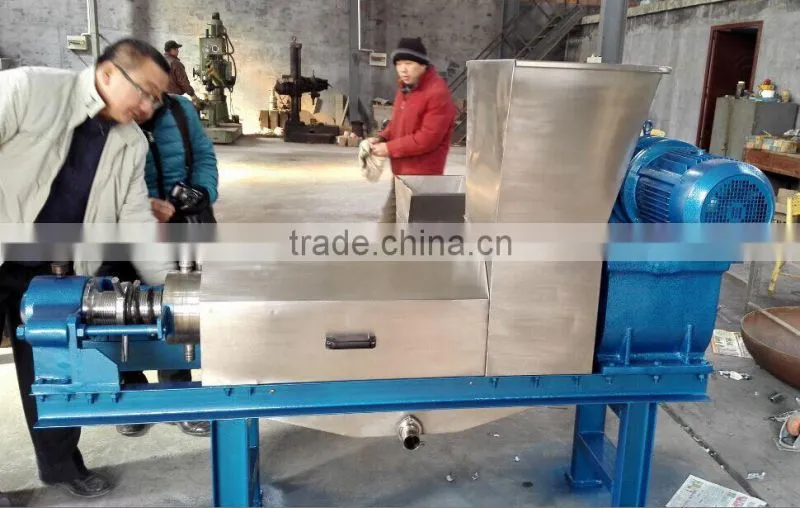

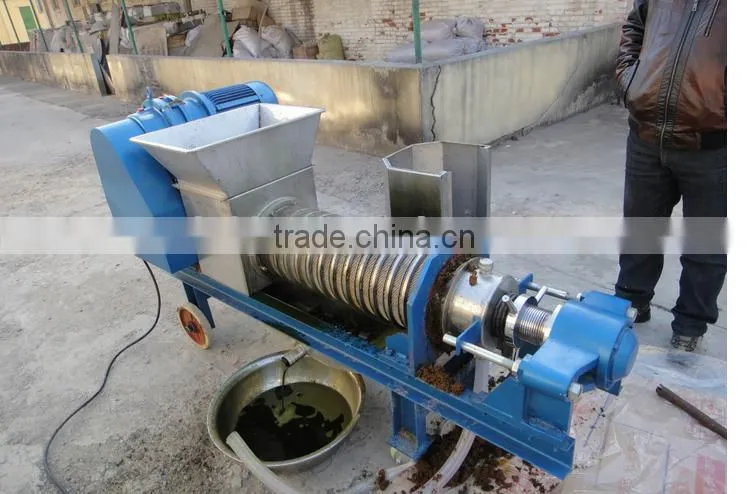

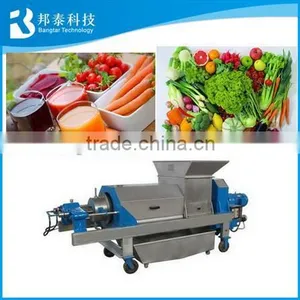

Double screw Squeezer industrial juicer extractor machine for leaves
Application for Industrial apple juice extractor/industrial juicer extractor machine :
(1) This juice extractor is suitable for extracting juice from grape, tomato, fruits and vegetables. separating residues and pulps from seedless
(2) Its range of extracting ratio is very wide. The space between screw stem and cylinder can be adjusted according to different material extracted.
Features of Industrial apple juice extractor/industrial juicer extractor machine :

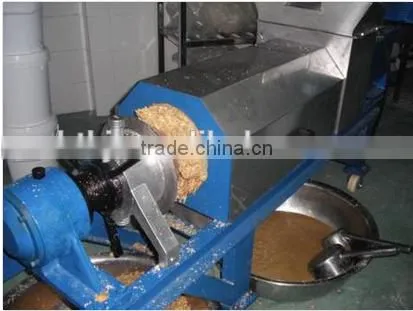

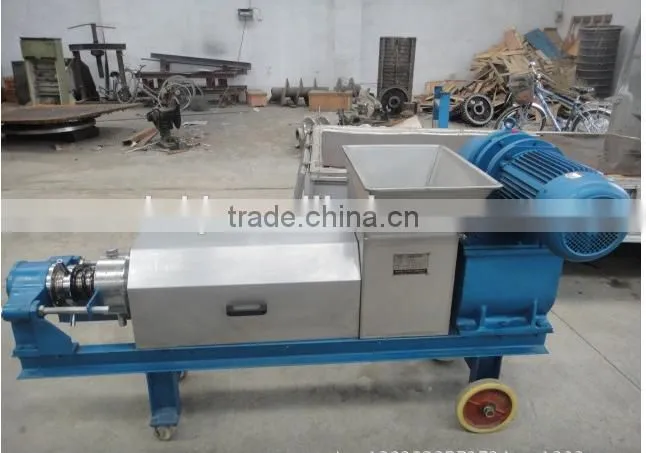

The Double Screw fruit and vegetable juice extractor is made of high-quality acid-proof stainless steel . The machine consists of frame, transmission, feed section, juice section, hydraulic systems and electrical control section and the shroud and other components. Press screw rotates together with the spindle, material handling screw set screw on the spindle and press for reverse rotation, the material of the press force of the uniform, taphole cone by the Night cylinder control oil pressure can be varied to adjust the material pressure effect, thereby adjusting the juice yield, the effect will be some differences due to different materials.
Technical data for Industrial apple juice extractor/industrial juicer extractor machine:
Model |
YZJ-1.5T |
YZJ-3T |
YZJ-5T |
YZJ-10T |
Specification |
1.5T |
3T |
5T |
10T |
Power |
5.5kw |
7.5kw |
11kw |
18.5KW |
Screw Diameter(mm) |
260 |
350 |
420 |
200 |
Treatment Capacity(kg/h) |
200-1500 |
200-2300 |
200-4700 |
200-8000 |
Mesh size(mm) |
1mm(adjustable) |
1mm(adjustable) |
1mm(adjustable) |
1mm(adjustable) |
Material |
304 stainless steel for the suspension contacts part |
|||
Voltage |
380V |
380V |
380V |
380V |
Weight |
650kg |
1400kg |
2800kg |
3100kg |
Dimension(mm) |
2200*900*1050 |
3500*900*1100 |
3580*1100*1470 |
3900*1400*1700 |
Warranty |
One year(will not eliminate vulnerable and artificial damage) |
|||
