Hydraulic Water Pressing Machine For Auto Parts
1.Suitable for:

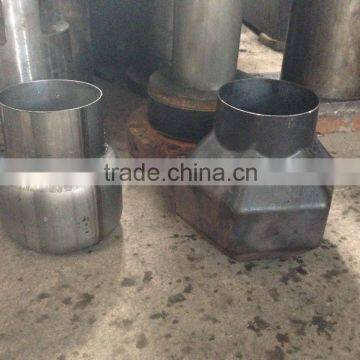

Hydraulic Water Pressing Machine For Auto Parts is used for forming the part with complex surface.This is designed and manufactured for the realization of this process.The machine can be used for the hydraulic bulging process of vacuum cup,thermos,bottle and other tableware and containers made of stainless steel ,cooper,aluminum,iron and other materials.
2.Main Features:
1.Application:for forming the part with complex surface.
2.Speed control of the second section of moving beam;No-load rapid & slow copy deep drawing
3.Safety protection device should be equipped to provide security guarantee for the operators
4.Auto count function should be equipped
5.Locking-mould force and water pressure are adjustable
3.Main technical specification:
DESCRIPTION |
UNIT |
Y98-100 |
Nominal Capacity |
KN |
500 |
Master Cylinder Stroke |
MM |
500 |
Nominal Capacity Of Pressurized Cylinder |
KN |
500 |
Stroke Of Pressurized Cylinder |
MM |
410 |
Max. Capacity Of Injection Cylinder |
L |
5 |
Max. Injection Pressure Of Injection Cylinder |
MPA |
40 |
Max. Shut Height |
MM |
1200 |
Working Table Size |
MM |
500(L) x 500(W) |
Sliding Platform Size |
MM |
400(L) x 380(W) |
Downing Speed |
MM/S |
360 |
Pressing Speed |
MM/S |
30 |
Return Speed |
MM/S |
300 |
Motor Power |
KW |
11+2.2 |
Overall Size |
MM |
2020(L) x 1350(W) x 3150(H) |
1.The special specification can be custom made separately
2.Engineer is available to service oversea
