YDK-500 H Frame Hydraulic Press Machine For Edge Cutting
- China Port
- T/T
You May Like
Product Details
| Condition | New | CNC or Not | Normal | |
| Power Source | Hydraulic | Place of Origin | Guangdong, China | |
| Brand Name | yongheng | Model Number | YDK-500 | |
| Voltage | 110-440V | Power(W) | 7.5KW | |
| Weight | 5.8T | Dimension(L*W*H) | 1325(L) x 1200(W) x 1865(H) | |
| Certification | ISO9001:2000 | Warranty | One Year, One year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
YDK-500 H Frame Hydraulic Press Machine For Edge Cutting
1.Suitable for:

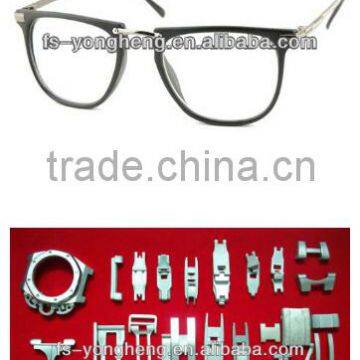

YDK-500 H Frame Hydraulic Press Machine For Edge Cutting is suitable for Embossing,extruding shaping,light stretching,shaping,laminating and edge cutting for metal or non metal parts.It can press such typical products as watchcase,watchband,glass frame and parts,image frame,tableware,tags,lock,motor parts and metal parts etc.
2.Main Feature:
1.Apply general steel plate welding frame,feature outstanding rigidity and high press strength
2.Pressure,travel and pressure-keeping are customized according to the pressing techinque
3.With such derivative machines as lower lifting,upper lifting,upper and lower compound lifting,and light stretching etc
4.After closing the mould,it features quick pressing and only costs several seconds to reach the rated pressure.
5.Apply lower oil tank,convenient for replacing and cleaning the oil tank
6.Photo-electric protection device is equipped.
3.Main technical specification:
DESCRIPTION | UNIT | YDK-500 |
Nominal Capacity | KN | 5000 |
Work Pressure | MPA | 25 |
Max. Stroke Of Workable | MM | 160 |
Distance From Workable and Lower Surface of Upper Beam | MM | 450 |
Working Table Size | MM | 700(L) x 670(W) |
Speed Of Workable Rising | MM/S | 150 |
Size Of Machine | MM | 1325(L) x 1200(W) x 1865(H) |
Motor Power | KW | 7.5 |
1.The special specification can be custom made separately
2.Engineer is available to service oversea
