H Frame Up Stroke Oil Press Machine
- 30 Set / Sets per Month
- Shenzhen Port
- T/T
You May Like
-
Up Stroke H Frame Hydraulic Pressing Machine
-
H Frame Cooker Pressing Machine For Induction Circle
-
H Frame Hydraulic Press Machine
-
H Frame Uplifting Hydraulic Press Machine For Light Stretching Metal
-
H Frame Up Stroke Hydraulic Press Machine
-
H Frame Uplifting Hydraulic Press Machine For Motor parts pressing
Product Details
| Condition | New | CNC or Not | Normal | |
| Power Source | Hydraulic | Place of Origin | Guangdong, China | |
| Brand Name | yongheng | Model Number | YDK-700 | |
| Voltage | 110-440V | Power(W) | 11KW | |
| Weight | 11 Ton | Dimension(L*W*H) | 1650 x 1585 x 2400mm | |
| Certification | ISO9001:2000 | Warranty | One Year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

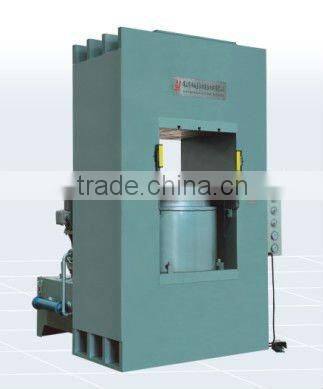

H Frame Up Stroke Oil Press Machine
1.Suitable for:
H Frame Up Stroke Oil Press Machine is suitable for Embossing,extruding shaping,light stretching,shaping,laminating and edge cutting for metal or non metal parts.It can press such typical products as watchcase,watchband,glass frame and parts,image frame,tableware,tags,lock,motor parts and metal parts etc.
2.Main Feature:
1.Apply general steel plate welding frame,feature outstanding rigidity and high press strength
2.Pressure,travel and pressure-keeping are customized according to the pressing techinque
3.With such derivative machines as lower lifting,upper lifting,upper and lower compound lifting,and light stretching etc
4.After closing the mould,it features quick pressing and only costs several seconds to reach the rated pressure.
5.Apply lower oil tank,convenient for replacing and cleaning the oil tank
6.Photo-electric protection device is equipped.
3.Main technical specification:
DESCRIPTION | UNIT | YDK-700 |
Nominal Capacity | KN | 7000 |
Work Pressure | MPA | 24 |
Max. Stroke Of Workable | MM | 250 |
Distance From Workable and Lower Surface of Upper Beam | MM | 500 |
Working Table Size | MM | 820(L) x 820(W) |
Speed Of Workable Rising | MM/S | 80 |
Size Of Machine | MM | 1650(L) x 1585(W) x 2400(H) |
Motor Power | KW | 11 |
1.The special specification can be custom made separately
2.Engineer is available to service oversea
