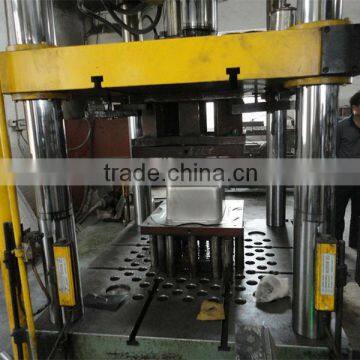

600Ton Four Pillars Double Action Deep Drawing Hydraulic Press Machine
- 50 Set / Sets per Month
- China Port
- T/T
You May Like
-
Four Pillar Cooking Utensil Deep Drawing Hydraulic Press Machine
-
80Ton Secondary Deep Drawing Hydraulic Press Machine
-
Four Pillars Double Action Hydraulic Draw Press Machine
-
100Ton Four-column Hydraulic Baling Press Machine
-
Hydraulic Deep Drawing Press
-
Kitchen Utensil Double Action Deep Drawing Hydraulic Press Machine
Product Details
| Place of Origin | Guangdong, China | Brand Name | yongheng | |
| Model Number | Y28-600 | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

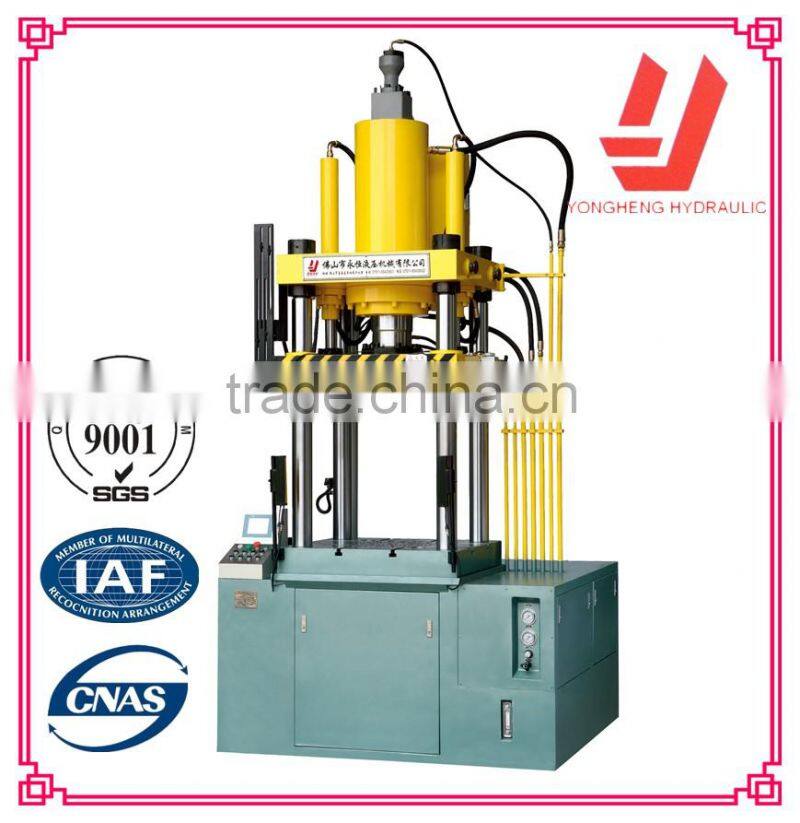

600Ton Four Pillars Double Action Deep Drawing Hydraulic Press Machine
1.Suitable for

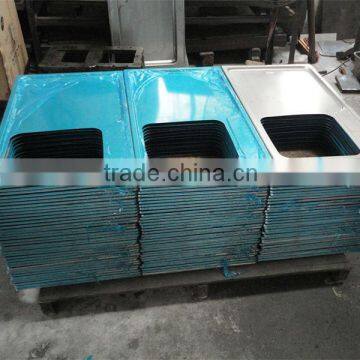

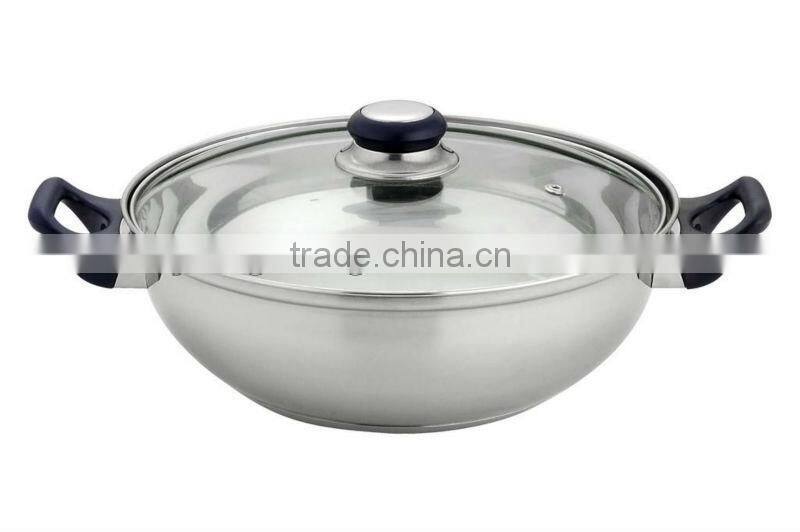

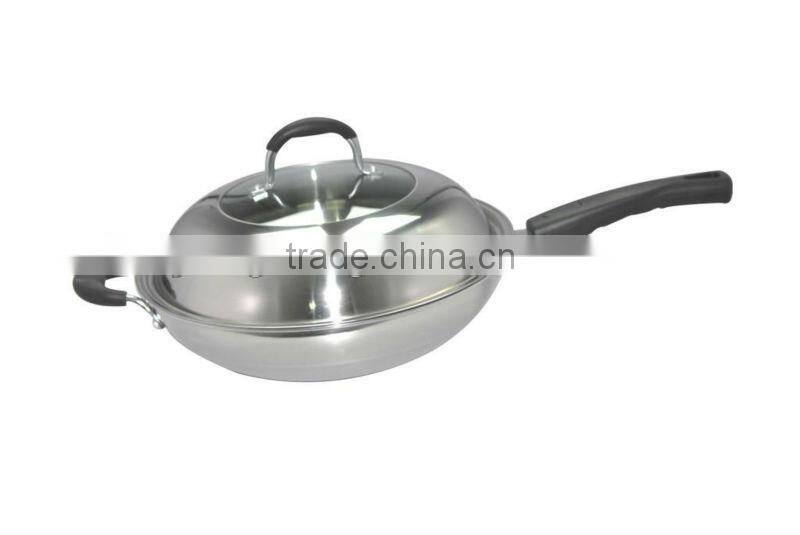

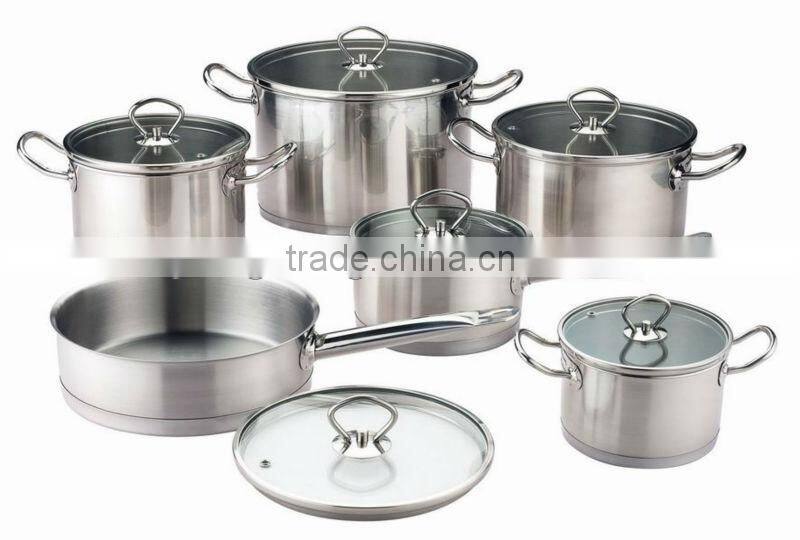

600Ton Four Pillars Double Action Deep Drawing Hydraulic Press Machine is suitable for aluminum products and stainless steel products,which is particularly used for drawing aluminum sheet,pressing and forming aluminum products,drawing stainless steel sheet,as well as pressing and forming stainless steel products.
2. Main feature
1.Low energy consumption,and small noise
2.Speed control of the second section of moving beam;No-load rapid & slow copy deep drawing
3.Safety protection device should be equipped to provide security guarantee for the operators
4.Auto count function should be equipped.
5.The deep drawing force and blank holder force are adjustable
6.Mitsubishi PLC control,touching screen display
3.Main technical specification
DESCRIPTION | UNIT | Y28-600 |
Nominal Capacity | KN | 4000 |
Main Cylinder Pressure | Mpa | 20.5 |
Return Capacity | KN | 143 |
Blankholder Cylinder Capacity | KN | 2000 |
Blankholder Cylinder Max. Pressure | Mpa | 25 |
Upper Ejector Capacity | KN | 62 |
Ram Stroke | MM | 700 |
Blankholder Stroke | MM | 350 |
Ejection Stroke | MM | 320 |
Downing Speed | MM/S | 200 |
Pressing Speed | MM/S | 12.6~18 |
Return Speed | MM/S | 280 |
Motor Power | KW | 55 |
Working table size | MM | 1100(L) x 1300(W) |
Overall Size | MM | 2400(L) x 2000(W) x 4760(H) |
