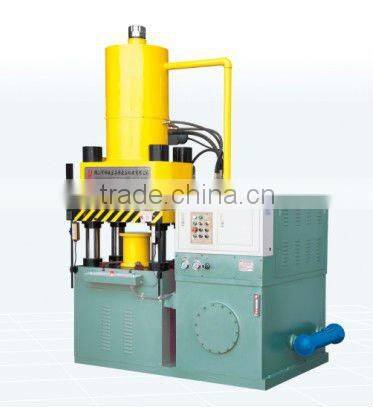

Four-column Cold Extrusion Hydraulic Press Machine
1.Suitable for:
Four-column Cold Extrusion Hydraulic Press Machine is suitable for cold extrutsion of metal parts,particularly in the cold extrusion and forging process of aluminum alloy products.
2.Main Feature:
1.Adopts four-column structure,electrical system adopts PLC to control with reliable movemont,safe and convenient operation.
2.Operation mode: inching adjustment and semi-auto work;high speed under no load,sloe mold closing and extruding function can be realized.
3.High work efficiency and low energy consumption.
4.Good air-proof performance:The products of NOK company and sealtech company are adopted for main sealing elements.
5.Good performance,steady and reliable.
3.Main technical specification:
DESCRIPTION |
UNIT |
Y64-1000 |
Nominal Capacity |
KN |
10000 |
Max. Work Pressure |
MPA |
26 |
Max. Return Capacity Of Master Cylinder |
KN |
370 |
Max. Stroke Of Movable Crossbeam |
MM |
500 |
Height Of Max. Opening |
MM |
1000 |
Height From Worktable To Floor |
MM |
1000 |
Nominal Capacity Ejection Cylinder |
KN |
400 |
Stroke Of Ejection Cylinder |
MM |
200 |
Working Table Size |
MM |
1200(L) x 1300(W) |
Downing Speed |
MM/S |
157 |
Pressing Speed |
MM/S |
6.8-10 |
Return Speed |
MM/S |
≥200 |
Motor Power |
KW |
75 |
1.The special specification can be custom made separately
2.Engineer is available to service oversea
