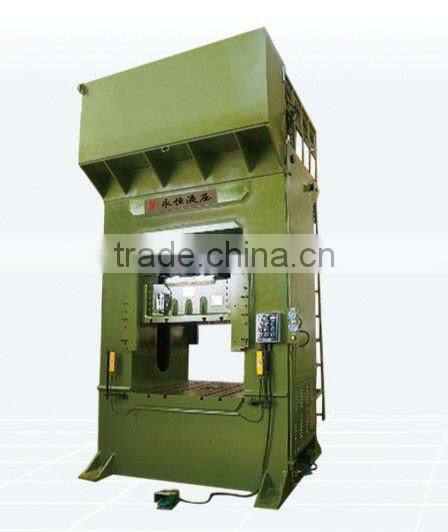

H Frame Aluminum Cold Extrusion Press Machine With Spare Parts
- China Port
- T/T
You May Like
-
YDK-A Series Single Cylinder Induction Forging Machine
-
YDK-A 600 H Frame Cold Extrusion Press Machine
-
YDK-A 1200 Frame Cold Extrusion Press Machine
-
YDK-A 2000 H Frame Cold Extrusion Press Machine
-
Y64-600 Four-column Cold Extrusion Hydraulic Press Machine
-
Y64-700 Four-column Cold Extrusion Hydraulic Press Machine
Product Details
| Condition | New | CNC or Not | CNC | |
| Power Source | Hydraulic | Place of Origin | Guangdong, China | |
| Brand Name | yongheng | Model Number | YDK-A 500 | |
| Voltage | 110-440V | Power(W) | 45KW | |
| Dimension(L*W*H) | 1880 x 1900 x 3100mm | Certification | ISO9001:2000 | |
| Warranty | One Year, One year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
H Frame Aluminum Cold Extrusion Press Machine With Spare Parts
1.Suitable for:
H Frame Aluminum Cold Extrusion Press Machine is application:cold extrusion process of metal parts,praticularly in the cold extrusion and forging process of aluminum and aluminum alloy products.
2.Main Feature:
1.45 degree or 90 degree dctat guide,precision is reliable
2.Constant-power variable-capacity pump is used for supplying oil
3.Hole-arrangement type photo-electric safety device is adopted
4.Good air-proof performance
5.Good performance,steady and reliable.
3.Main technical specification:
DESCRIPTION | UNIT | YDK-A500 |
Nominal Capacity | KN | 5000 |
Max. Work Pressure | MPA | 24 |
Max. Stroke | MM | 450 |
Height Of Max. Opening | MM | 900 |
Height From Worktable To Floor | MM | 450 |
Working Table Size | MM | 780(L) x 810(W) |
Downing Speed | MM/S | 250 |
Pressing Speed | MM/S | 8-18 |
Return Speed | MM/S | ≥250 |
Size Of Machine | MM | 1880(L) x 1900(W) x 3100(H) |
Motor Power | KW | 45 |
1.The special specification can be custom made separately
2.Engineer is available to service oversea
