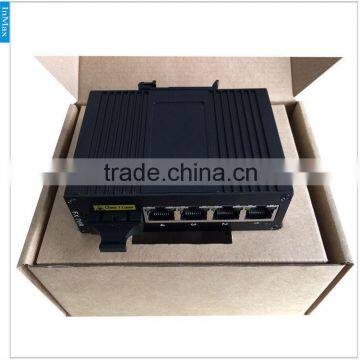

Super Stability 1x100M FX and 4x10/100MBase TX Port Industrial Grade Media Converter I305A
US$ 42 - 48
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
InMax
Model Number:
i305A
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen HK
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Rail and Metro Automation 1x100M FX to 4x10/100MBase TX Industrial Ethernet Switch 10/100M Media Converter I305AUS$ 42 - 48MOQ: 1 Piece -
Factory Produce 5 RJ45 Copper Port Industrial Fiber Optical Switch Fiber-optic Converter I305AUS$ 42 - 48MOQ: 1 Piece
-
Time Discount for Security Monitoring, 3 Port Fiber Media Converter I303AUS$ 42 - 48MOQ: 1 Piece
-
3 Port Network Switch With RJ45 Converter, Sfp DIN- RAIL Media Converter I303AUS$ 42 - 48MOQ: 1 Piece
-
5 Port 1F+4T Industrial Fiber Optical Switch, Fiber Optic Media Converter I305AUS$ 42 - 48MOQ: 1 Piece
Place of Origin
Guangdong, China
Brand Name
InMax
Model Number
i305A
| InMax i305A 4+1 Port Unmanaged Industrial Ethernet Switch | |||
| Main Features | |||
| 4x10/100BaseTX ports+1x100BaseFX | |||
| Industrial-grade design with -40 to +75°C operating temperature and redundant power inputs | |||
| Metal, IP40 protection,DIN-Rail mounting, wall mounting | |||
| Overview | |||
| InMax i305A Unmanaged Redundant Ethernet Switch has one fiber optic Ethernet port. Its highly reliable hardware design is ideal for non-stop industrial applications. | |||
| Specifications | |||
| Standards |
IEEE 802.3 IEEE 802.3u |
||
| Interface | |||
| RJ45 Ports | 10/100BaseTX auto negotiation | ||
| Fiber Ports | 100Base-FX (SC/ST/FC connector) | ||
| LED | |||
| Port Led | Copper: Link 1,2,3,4, Act 1,2,3,4, | ||
| Fiber | Link/ Act5 | ||
| Power Led | PWR | ||
| Power Requirements | |||
| Input Voltage | 24VDC (12 ~ 36VDC), redundant dual inputs | ||
| Input Current | InMax. <0.1A@24VDC,<2.4W | ||
|
Overload Current Protection |
Present | ||
|
Reverse Polarity Protection |
Present | ||
| Connector | 3-contact terminal blocks | ||
| Mechanical Properties | |||
| Housing | Metal, IP40 protection | ||
| Dimensions | 32 x 108 x 78mm | ||
| Weight | 280g | ||
| Installation | DIN-Rail mounting, wall mounting | ||
| Environmental Limits | |||
| Operating Temperature | |||
| Standard Models | 0 to +60°C (32 to 140°F ) | ||
| Wide Temp. Models | -40 to +75°C (-40 to 167°F) | ||
| Storage Temperature | -40 to +85°C (-40 to 185°F ) | ||
|
Ambient Relative Humidity |
5 to 95% (non-condensing) | ||
| Standards and Certifications | |||
| Safety | UL 60950-1 | ||
| EMI | FCC Part 15 Subpart B Class A, EN 55022 Class A | ||
| EMS |
EN 61000-4-2 (ESD) Level 4 EN 61000-4-3 (RS) Level 3 EN 61000-4-4 (EFT) Level 4 EN 61000-4-5 (Surge) Level 4 EN 61000-4-6 (CS) Level 3 EN 61000-4-8 Level 5 |
||
| Shock | IEC 60068-2-27 | ||
| Freefall | IEC 60068-2-32 | ||
| Vibration | IEC 60068-2-6 | ||
| Warranty | |||
| Warranty Period | 5 years | ||
| Ordering Information | |||
| Available Models | Transceiver Type | Connector Type | Temperature Range |
| i305A | 2Km Dual-fiber MMF1310nm |
SC/PC ST/PC FC/PC |
-40°C to +85°C (-40 to 185°F ) |
| 20Km Dual-fiber SMF1310nm | |||
| 40Km Dual-fiber SMF1310nm | |||
| 60Km Dual-fiber SMF1310nm | |||
| 80Km Dual-fiber SMF1550nm | |||
| 120Km Dual-fiber SMF1550nm | |||
|
20Km-120Km BiDI SMF1310nm 20Km-120Km BiDI SMF1550nm | |||
| Dimensions | |||
