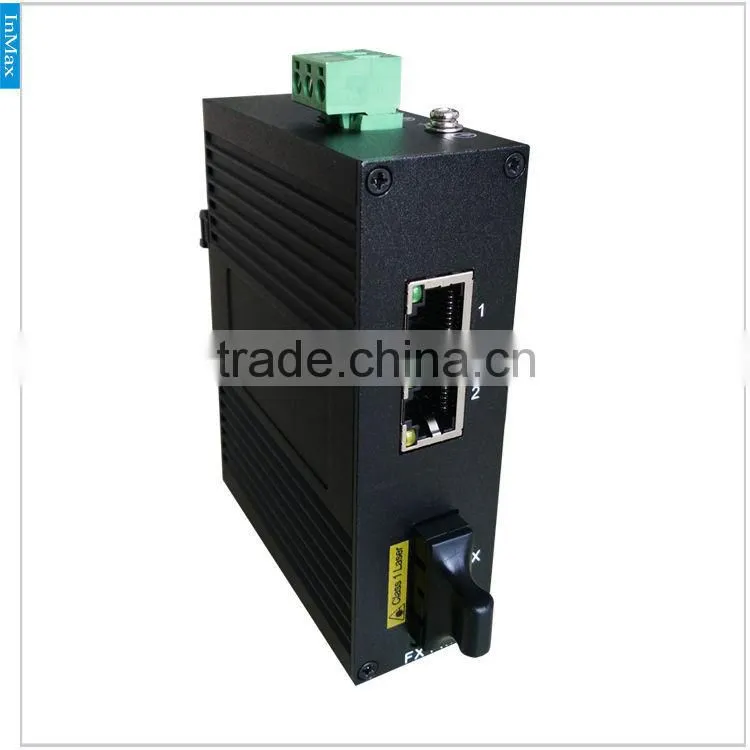

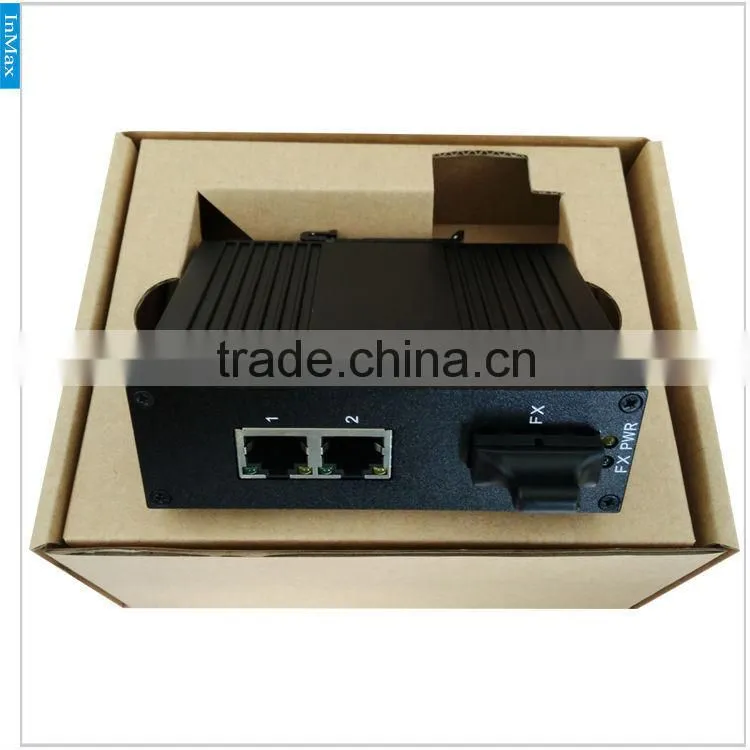

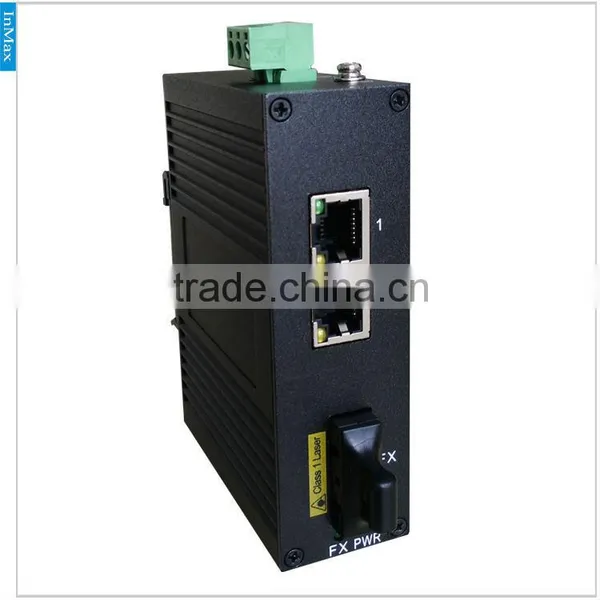

InMax i303A 2+1 Port Unmanaged Industrial Ethernet Switches
Main Features
- 2x10/100BaseTX ports+1x100BaseFX
- Industrial-grade design with -40 to +75°C operating temperature and redundant power inputs
- Metal, IP40 protection,DIN-Rail mounting, wall mounting
Specifications
Standards:
IEEE 802.3
IEEE 802.3u
Interface:
Fiber Ports: 100Base-FX (SC/ST/FC connector)
RJ45 Ports: 10/100BaseTX auto negotiation
LED:
Port Led:Copper: Link1,2, Act1,2
Fiber: Link/ Act3
Power Led:PWR
Power Requirements:
Input Voltage: 24VDC (12 ~ 36VDC), redundant dual inputs
Input Current: MAX. <0.1A@24VDC,<2.4W
Overload Current Protection: Present
Reverse Polarity Protection: Present
Connector: 3-contact terminal blocks
Mechanical Properties:
Housing: Metal, IP40 protection
Dimensions: 32 x 108 x 78mm
Weight: 280g
Installation: DIN-Rail mounting, wall mounting
Environmental Limits:
Operating Temperature:
Standard Models: 0 to +60°C (32 ~ 140°F )
Wide Temp. Models:-40 to +75°C (-40 to 167°F)
Storage Temperature: -40 to +85°C (-40 to 185°F )
Ambient Relative Humidity: 5 to 95% (non-condensing)
Standards and Certifications:
Safety: UL 60950-1
EMI: FCC Part 15 Subpart B Class A, EN 55022 Class A
EMS:
EN 61000-4-2 (ESD) Level 3, EN 61000-4-3 (RS) Level 3,
EN 61000-4-4 (EFT) Level 3, EN 61000-4-5 (Surge) Level 3,
EN 61000-4-6 (CS) Level 3, EN 61000-4-8 Level 3
Shock: IEC 60068-2-27
Freefall: IEC 60068-2-32
Vibration: IEC 60068-2-6
Warranty Period
5 years
Dimensions
Unit (mm)
(W×H×D):32mm×103mm×78mm
