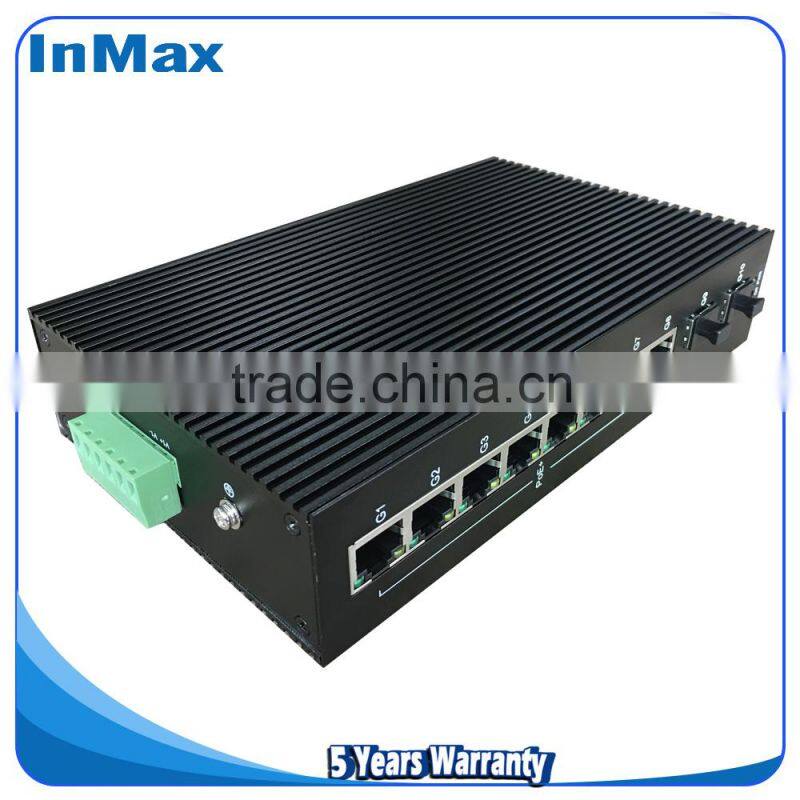

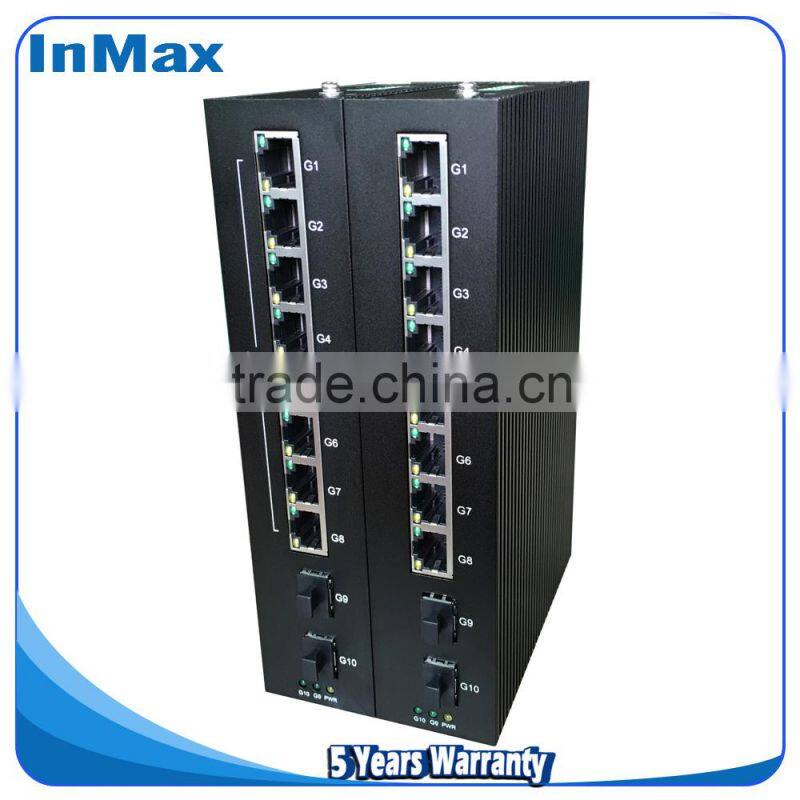

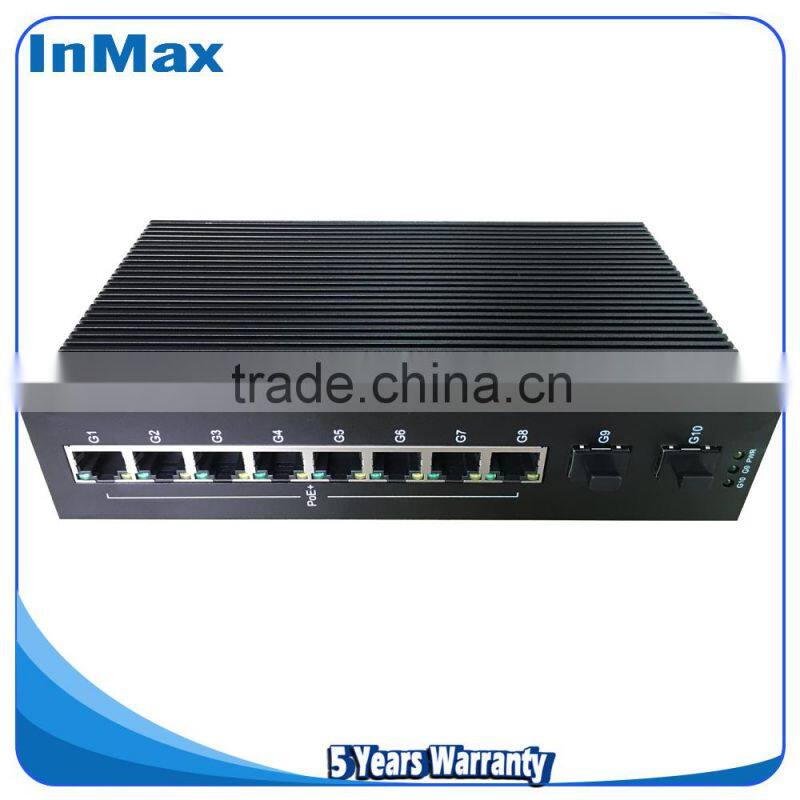

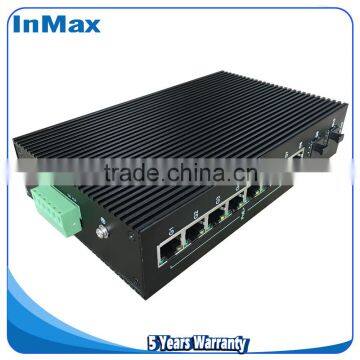

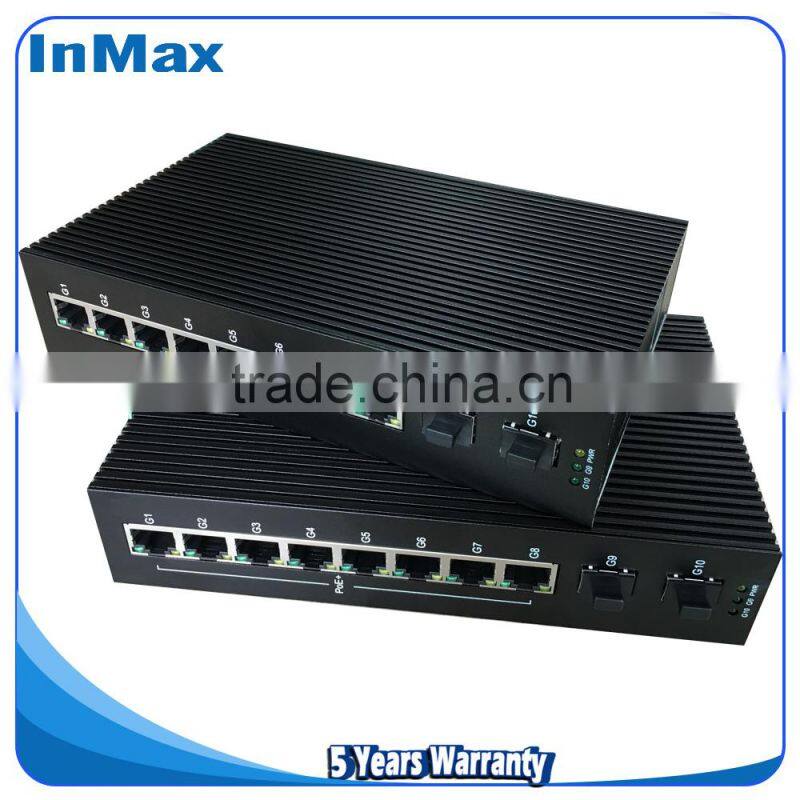

Din-rail Gigabit Switch, 10 Ports Industrial Network Switch for IP Camera P510A
US$ 1 - 220
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
InMax
Model Number:
P510A
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen or Hong Kong
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
8T+2G PoE Full Gigabit Switch for IP Camera, 10 Ports Industrial Ethernet Switch P510AUS$ 1 - 220MOQ: 1 Piece -
Full/Half Duplex Industrial Switch 10 Ports Gigabit PoE Industrial Network Switch P510AUS$ 1 - 220MOQ: 1 Piece
-
10 Ports Full Gigabit PoE Industrial Network Switches With IP40 Protection P510AUS$ 1 - 220MOQ: 1 Piece
-
8T+2G PoE Gigabit Switch, 10 Ports Industrial Network Switches P510AUS$ 1 - 220MOQ: 1 Piece
-
Wide Operating Temperature 10 Ports Gigabit PoE Industrial Network Switches P510AUS$ 1 - 220MOQ: 1 Piece
Place of Origin
Guangdong, China
Brand Name
InMax
Model Number
P510A
P510A Full Gigabit Unmanaged PoE Industrial Ethernet Switches
Features and Benefits
- With 8×10/100/1000BaseT(X) PoE ports, and 2×1000BaseX port
- Up to 30 watts output of each PoE port
- Smart PoE over current and short circuit protection
- Intelligent power consumption detection and classification
- Redundant dual 48 VDC power inputs, Built-in over-current protection, Reverse connection protection
- -40 to 75℃ operating temperature range (WT models)
- No fan, low consumption, industrial design standard, industrial grade electronic components, environmental protection & lead-free production
- Hard aluminum alloy case (Not sheet metal), DIN-rail and wall mounting
- IP Rating up to IP40
- No packet lost in 72 hours full load traffic testing
Introduction
P510A Full Gigabit Unmanaged PoE Industrial Ethernet Switches are equipped with 10 Gigabit Ethernet ports, and up to 8 PoE ports, making them ideal for applications that demand high bandwidth.
No fan, low power consumption design, working function more steady, and no packet lost in 72 hours full load traffic testing.
It accords with FCC, CE, RoHS standard and industrial design requirement. It can work in -40 to 75℃ working temperature steadily, and provide reliable and quick solution for your Ethernet device.
Specs
Technology
| Standards | IEEE 802.3af for 15.4W Power-over-Ethernet |
| IEEE 802.3at for 30W Power-over-Ethernet | |
| IEEE 802.3 for 10BaseT | |
| IEEE 802.3u for 100BaseT(X) | |
| IEEE 802.3ab for 1000BaseT(X) | |
| IEEE 802.3x for Flow Control | |
| IEEE 802.3z for 1000BaseX | |
| IEEE 802.3az for Energy-Efficient Ethernet | |
| Flow Control | IEEE 802.3x Flow Control |
| Back Pressure Flow Control |
Switch Properties
| packet forwarding rate | 16.368Mpps |
| Processing Type | Store and Forward |
| MAC Table Size | 16 K |
| Jumbo Frame Size | 10KBytes |
| Backplane | 22G |
| Packet Buffer Size | 2Mbit |
Interface
| Fiber Ports | 1000BaseX SFP slot |
| RJ45 Ports | 10/100/1000BaseT(X) auto negotiation speed |
| Full/Half duplex mode | |
| MDI/MDI-X connection | |
| PoE Pinout | V+, V+, V-, V- for Pin 1,2,3,6 (End-span) |
| LED | RJ45 Ports: Link/Act RJ45 Green LED G1~G8 |
| Fiber Ports: Link/Act G9~G10 | |
| PoE Indicator: RJ45 Yellow LED G1~G8 | |
| Power: PWR |
Power Requirements
| Connection | 1 removable 6-contact terminal block |
| Input Voltage | 48VDC (44 to 57VDC),Redundant Dual Inputs |
| No-load Power | 5W @ 48VDC |
| Full-load Power | 8W @ 48VDC (Full loading without PDs' consumption) |
| Power Budget | 248W @ 48VDC for total PDs’ and switches' consumption |
| Power Budget of each PoE port | Max. 30W |
| Redundant Dual Inputs | Present |
| Reverse Polarity Protection | Present |
| Over current protection | Present |
Physical Characteristics
| Housing | Hard aluminum alloy case |
| IP Rating | IP40 |
| Dimensions (W×H×D) | 41 × 202 × 128 mm |
| Weight | 750g |
| Installation | DIN-rail mounting, wall mounting |
Environmental Limits
| Operating Temperature | Standard Models: -25 to 60℃ (-13 to 140℉) |
| Wide Temp. Models: -40 to 75℃ (-40 to 167℉) | |
| Storage Temperature | -40 to 85℃(-40 to 185℉) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
Industrial standard
| EMI | FCC Part 15,CISPR (EN55022) class A |
| EMS | EN61000-4-2 (ESD),Level 4 |
| EN61000-4-3 (RS),Level 3 | |
| EN61000-4-4 (EFT),Level 4 | |
| EN61000-4-5 (Surge),Level 4 | |
| EN61000-4-6 (CS),Level 3 | |
| EN61000-4-8,Level 5 | |
| Shock | IEC60068-2-27 |
| Freefall | IEC60068-2-32 |
| Vibration | IEC60068-2-6 |
Warranty
| Warranty Period | 5 years |
Ordering
| Product Model | Description |
| P510A |
With 8 10/100/1000BaseT(X) PoE ports,and 2 1000BaseX SFP slot, without SFP Transceiver. 44 to 57VDC,Redundant Dual Inputs, -25 to 60℃ operating temperature |
| P510A-WT |
With 8 10/100/1000BaseT(X) PoE ports,and 2 1000BaseX SFP slot, without SFP Transceiver. 44 to 57VDC,Redundant Dual Inputs, -40 to 75℃ operating temperature |
| Customization | Provide customized design for Mid-span PoE Pinout(V+, V+, V-, V- for Pin 4,5,7,8 ) |

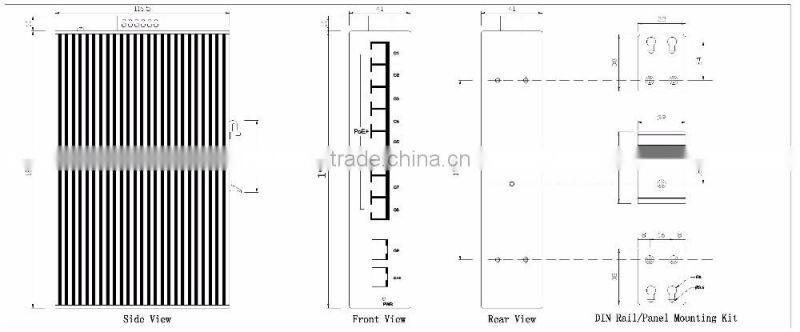

Dimension
