3 Ports Gigabit 1x1000BaseX SFP and 2x10/100/1000BaseT(X)Ports Din-Rail Gigabit Industrial Network Switch I503A
US$ 1 - 199
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
InMax
Model Number:
i503A
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen or Hong Kong
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
For Traffic Monitoring 1x1000BaseX SFP and 1x10/100/1000BaseT(X)Ports Din-Rail Industrial Ethernet Switch I502AUS$ 1 - 199MOQ: 1 Piece -
2 Ports Gigabit Switch, 1x1000BaseX SFP and 1x10/100/1000BaseT(X)Ports Din-Rail Industrial Switch for Wind Power I502AUS$ 1 - 199MOQ: 1 Piece
-
2 Ports Gigabit 1x1000BaseX SFP and 1x10/100/1000BaseT(X)Ports Din-Rail Gigabit Industrial Ethernet Switch for ITS I502AUS$ 1 - 199MOQ: 1 Piece
-
High Performance 2 Ports Gigabit 1x1000BaseX SFP and 1x10/100/1000BaseT(X)Ports Din-Rail Industrial Ethernet Switches I502AUS$ 1 - 199MOQ: 1 Piece
-
Full Gigabit Super Stability 1x1000BaseX SFP and 1x10/100/1000BaseT(X)Ports Din-Rail Industrial Ethernet Switch I502AUS$ 1 - 199MOQ: 1 Piece
Place of Origin
Guangdong, China
Brand Name
InMax
Model Number
i503A
i503A Full Gigabit Unmanaged Industrial Ethernet Switches
Features and Benefits
- With 2×10/100/1000BaseT(X) ports,and 1×1000BaseX SFP slots
- Redundant dual 12/24/48 VDC power inputs,Built-in over-current protection, Reverse connection protection
- -40 to 75℃ operating temperature range (WT models)
- No fan, low consumption, industrial design standard,industrial grade electronic components,environmental protection & lead-free production
- Hard aluminum alloy case(Not sheet metal),DIN-rail and wall mounting
- IP Rating up to IP40
- No packet lost in 72 hours full load traffic testing
Introduction
i503A Full Gigabit Unmanaged Industrial Ethernet Switches are equipped with 3 Gigabit Ethernet ports,and up to 1 fiber optic ports,making them ideal for applications that demand high bandwidth.
No Fan,Low Consumption design,Working function more steady,and No packet lost in 72 hours full load traffic testing.
It accords with FCC, CE standard and industrial design requirement. It can work in -40 to 75℃ working temperature steadily, and provide reliable and quick solution for your Ethernet device.
Specs
Technology
| Standards | IEEE 802.3 for 10BaseT |
| IEEE 802.3u for 100BaseT(X) | |
| IEEE 802.3ab for 1000BaseT(X) | |
| IEEE 802.3x for Flow Control | |
| IEEE 802.3z for 1000BaseX | |
| IEEE 802.3az for Energy-Efficient Ethernet | |
| Flow Control | IEEE 802.3x Flow Control,Back Pressure Flow Control |
Switch Properties
| packet forwarding rate | 8.928Mpps |
| Processing Type | Store and Forward |
| MAC Table Size | 1 K |
| Jumbo Frame Size | 10Byte |
| Backplane | 12G |
| Packet Buffer Size | 1Mbit |
Interface
| Fiber Ports | 1000BaseX SFP Slot |
| RJ45 Ports | 10/100/1000BaseT(X) auto negotiation speed |
| Full/Half duplex mode | |
| MDI/MDI-X connection | |
| LED | RJ45 Ports: Link G1~G2, Act G1~G2 |
| Fiber Ports: Link/Act G3 | |
| Power: PWR |
Power Requirements
| Connection | 1 removable 6-contact terminal block |
| Input Voltage | 12/24/48VDC(9.6 to 60VDC),Redundant Dual Inputs |
| No-load Power | 5W @ 24VDC |
| Full-load Power | 8W @ 24VDC |
| Redundant Dual Inputs | Present |
| Reverse Polarity Protection | Present |
| Over current protection | Present |
Physical Characteristics
| Housing | Hard aluminum alloy case |
| IP Rating | IP40 |
| Dimensions (W×H×D) | 41 × 153.5 × 128 mm |
| Weight | 565g |
| Installation | DIN-rail mounting, wall mounting |
Environmental Limits
| Operating Temperature | Standard Models: -25 to 60℃ (-13 to 140℉) |
| Wide Temp. Models: -40 to 75℃ (-40 to 167℉) | |
| Storage Temperature | -40 to 85℃(-40 to 185℉) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
Industrial standard
| EMI | FCC Part 15,CISPR (EN55022) class A |
| EMS | EN61000-4-2 (ESD),Level 4 |
| EN61000-4-3 (RS),Level 3 | |
| EN61000-4-4 (EFT),Level 4 | |
| EN61000-4-5 (Surge),Level 4 | |
| EN61000-4-6 (CS),Level 3 | |
| EN61000-4-8,Level 5 | |
| Shock | IEC60068-2-27 |
| Freefall | IEC60068-2-32 |
| Vibration | IEC60068-2-6 |
Warranty
| Warranty Period | 5 years |
Ordering
| Product Model | Description |
| i503A |
with 2 10/100/1000BaseT(X) ports,and 1 1000BaseX SFP slots, without SFP Transceiver. 9.6 to 60VDC,Redundant Dual Inputs, -25 to 60℃ operating temperature |
| i503A-WT |
with 2 10/100/1000BaseT(X) ports,and 1 1000BaseX SFP slots, without SFP Transceiver. 9.6 to 60VDC,Redundant Dual Inputs, -40 to 75℃ operating temperature |

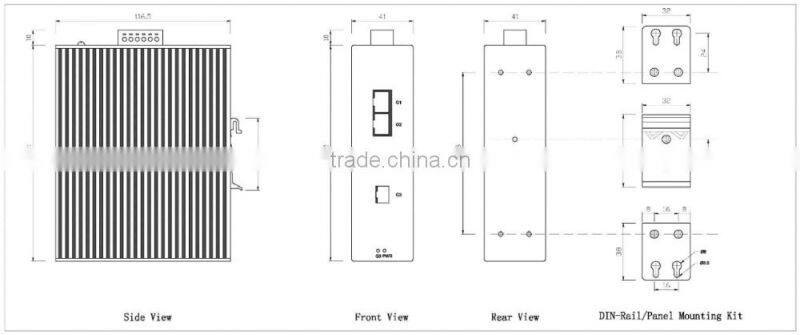

Dimension
