Home > Products > New Products > China CNLINKO High Quality Waterproof quick splice connectors rod connectors
China CNLINKO High Quality Waterproof quick splice connectors rod connectors
- 100000 Piece / Pieces per Month
- shenzhen
- T/T Credit Card
Product Details
| Place of Origin: | Guangdong, China | Brand Name: | CNLINKO | Model Number: | YA-20-C03PE-01-001,YA-20-J03SX-01-001 |
| Type: | XLR | Application: | Power | Gender: | Other, male and female |
Product Description

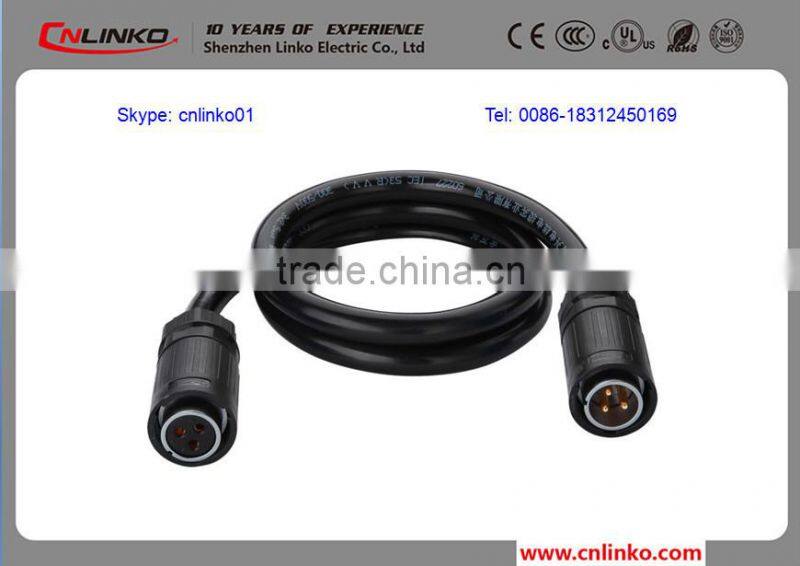

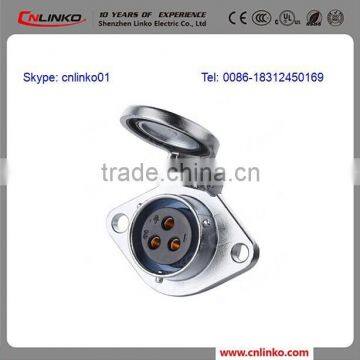

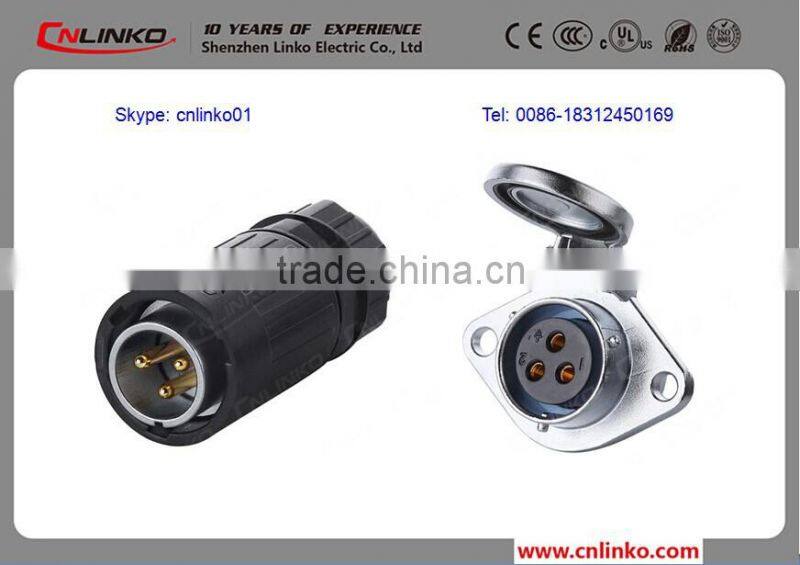

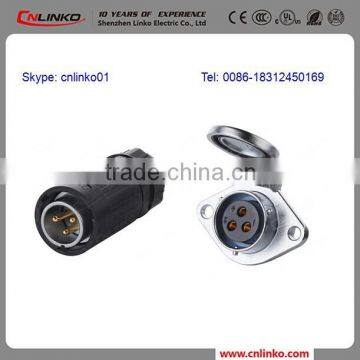

China CNLINKO High Quality Waterproof quick splice connectors rod connectors

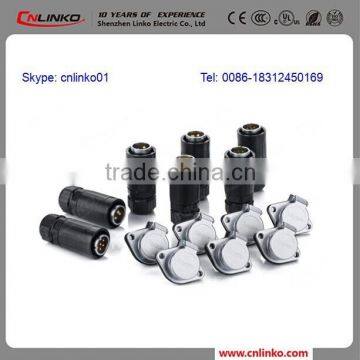

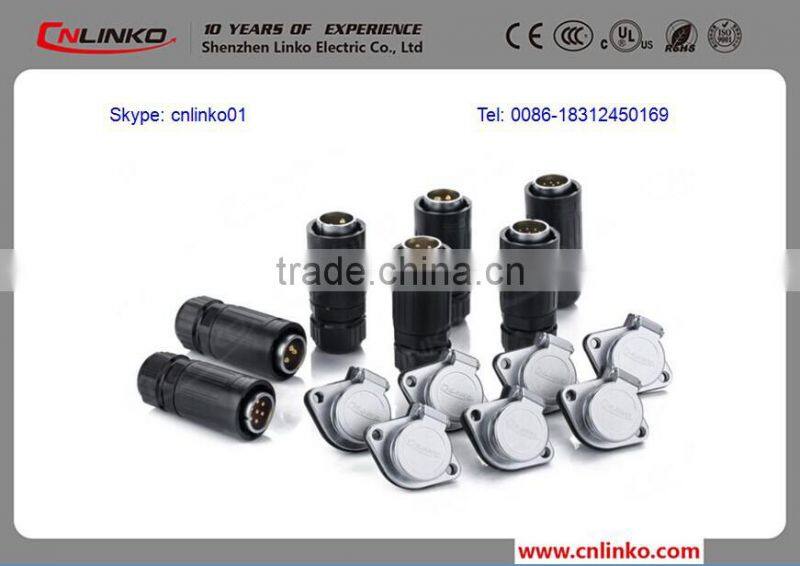

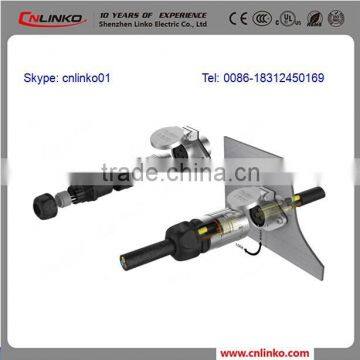

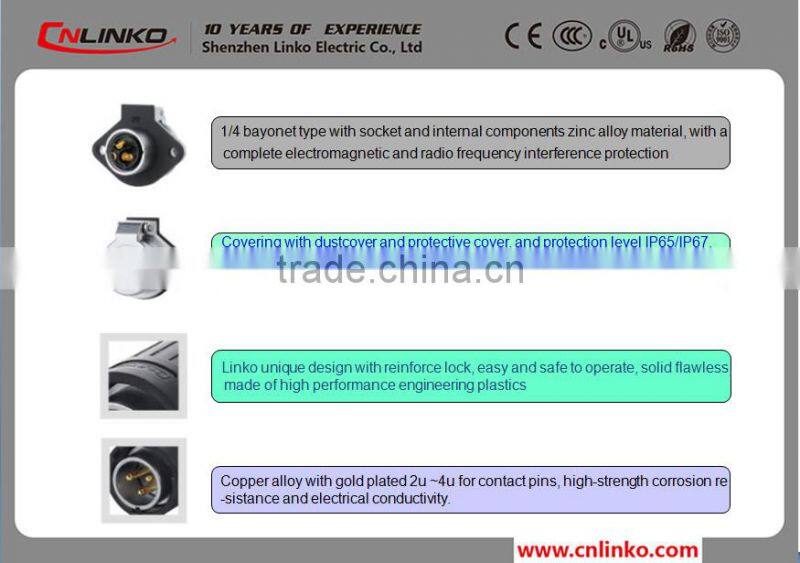

YA series is the one of Linko's patent design with unique bayonet design,rotation lock,easy to operate and be widely used in industrial LED display,audio,business,entertainment,live stage action,DMX lighting,industrial equipment,It's includes a series of connector with multi-core.this series provides connection ways not only plugs and sockets,but also welding and crimping quick locking,which ensures easy and reliable connection integrity.
1.multi-pins(2-12 PINS) for varies industrial demands
2.Zinc alloy material against high frequency noise and electromagnetic interference
3.gold-plated contact, high performance of corrosion resistance and electrical conductivity effectively deal with temperature rise.
4.PBT shell performance stable, compression, anti-explosion and anti-deformation
5.rated current: 20A rms
tection level:IP65/IP68
7.1/4 bayonet connector

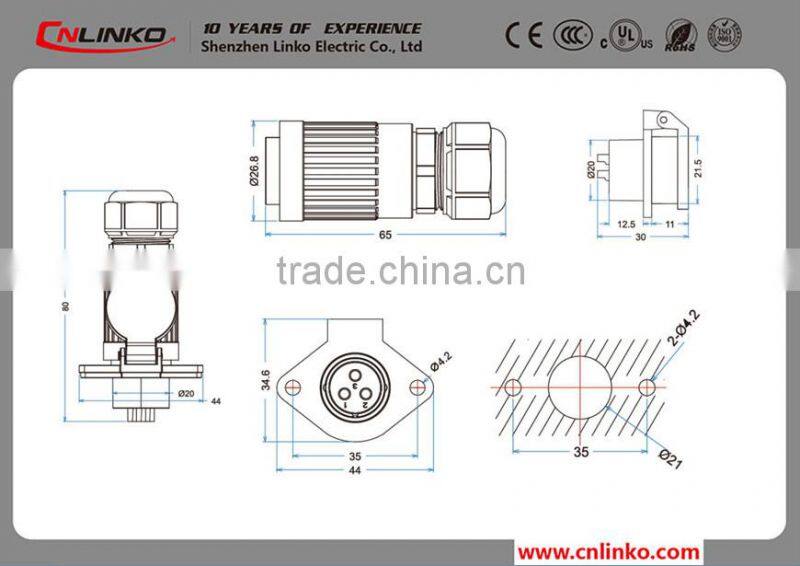

| YA-20-C03PE-03-001,YA-20-J03SX-01-001 | |
| Specifications: | |
| Connecting mode: | Plug/unplug, |
| Protection level: | IP68 |
| Cable specification: | 2.5mm2 ~ 4mm2 /14~12AWG |
| Diameter range: | Φ8mm ~Φ12mm |
| Contact diameter×Qty: | Φ3.0x3 |
| Current rating(A): | 20A |
| Operating voltage(AC.V.rms): | 500V |
| Withstand voltage(AC.V)1min: | 2500V |
| Contact resistance: | <1mΩ |
| Insulation resistance: | >500MΩ |
| Durability: | ≥500 mating&unmating cycles |
| Temperature rating: | -40°C~80°C |
| Method of connecting cable: | Solder |
| Prevent the combustion level: | UL94-V0 |
| Temperature rise: | 20A per contact at 30°C, 25A per contact at 40°C, 30A per contact at 50°C |
| Material: | |
| Shell&insulated parts: | High performance engineering plastics |
| Hardware metal: | Zinc alloy(pearl hard chromium) |
| Contact pin: | Copper alloy(gold-plated) |
| Spring: | Stainless steel |
| Sealing: | Silica gel |
| Main characteristics: | |
| - Sealed against dust and fluid (IP68) | |
| - Vibration resistance,impact resistance,stretching resistance | |
| - With one hand, can quickly insert or pull out | |
| Application industries: | |
| - Stage equipment | - The smart grid |
| - Medical equipment | - Server |
| - Solar energy equipment | - Ship equipment |
| - Electric power equipment | - Vehicle equipment |
| - Communications equipment | - Heavy machinery |
Normally, our price is based on our box packing.
Customized packing is welcome , MOQ of printing customized box is 1000 pcs/model
Delivery Detail: 7-10 working days after received deposit .
You may choose our shipping partner or your own partner .
100% T/T in advance is required after confirming the order.
CE,CCC,CUL,UL, ROHS, ISO9001:2008 Standard.
Supply OEM service .

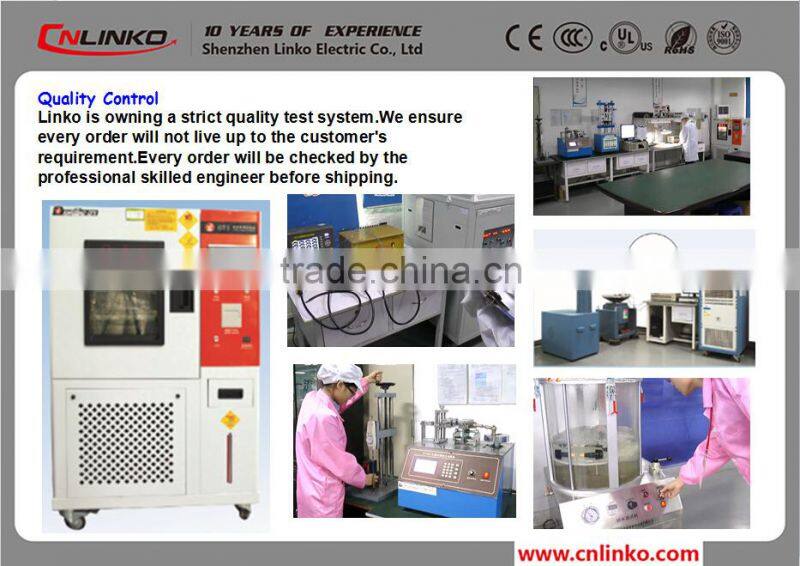

We have professional quality control system and R&D department to strictly manufacture each product.
100,000 pcs per month .
National level laboratory , and have flexible production line, to make quick action to urgent customized needs.
We will supply the best service to you . Anything ,please feel free to contact us at:
