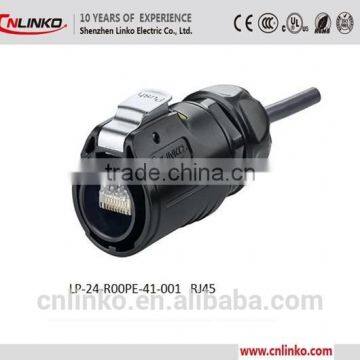

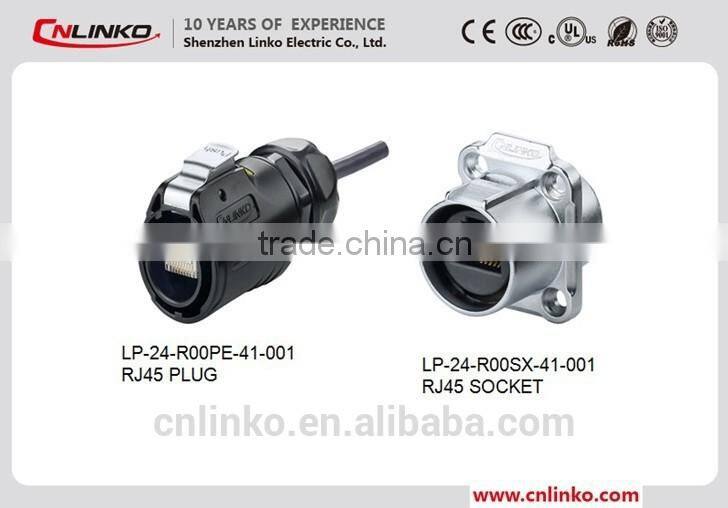

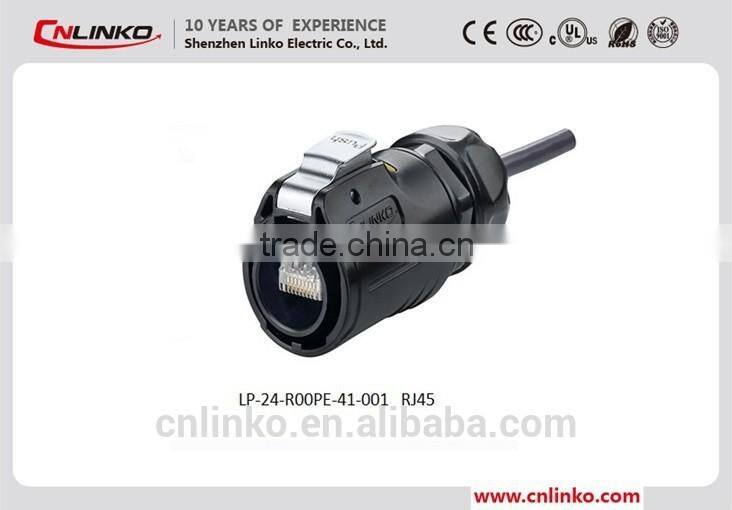

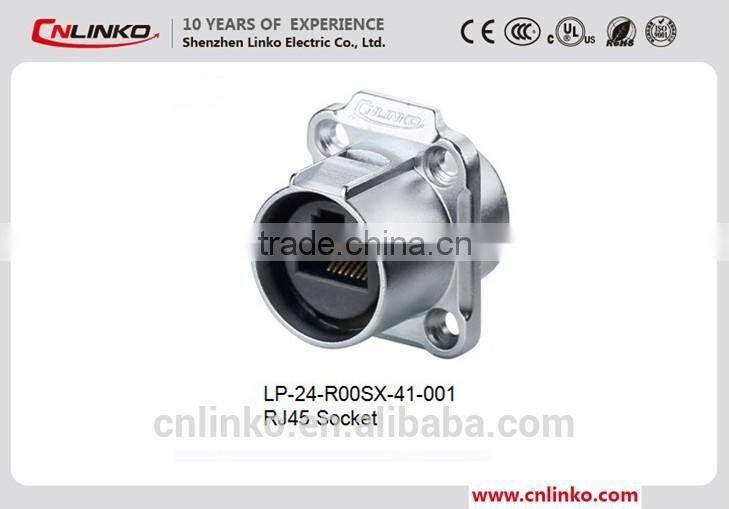

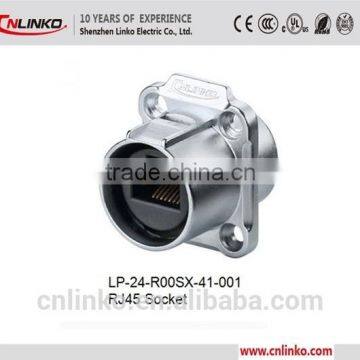

Factory Price Rj45 Ethernet Connector Waterproof Ip67 With Black Shell
LP-24 series of products , containing RJ45,USB,Power,fiber optics and other models with hole size 24mm to meet different needs of industry and we use nickel -plated and zinc alloy to guarantee quality and apply with international environment protection of industrial equiment as well.LP-24 series with multi-industry extension, USB,telecommunications,signal,fiber optic.HDMI,etc,

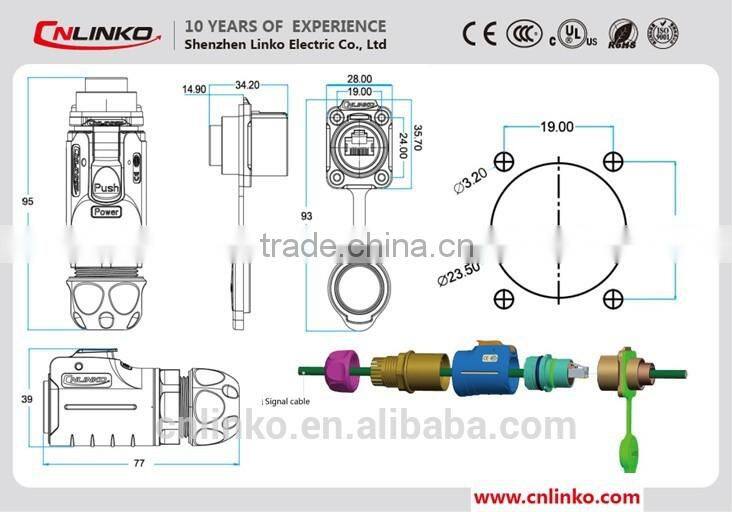

1.24mm installation hole figure

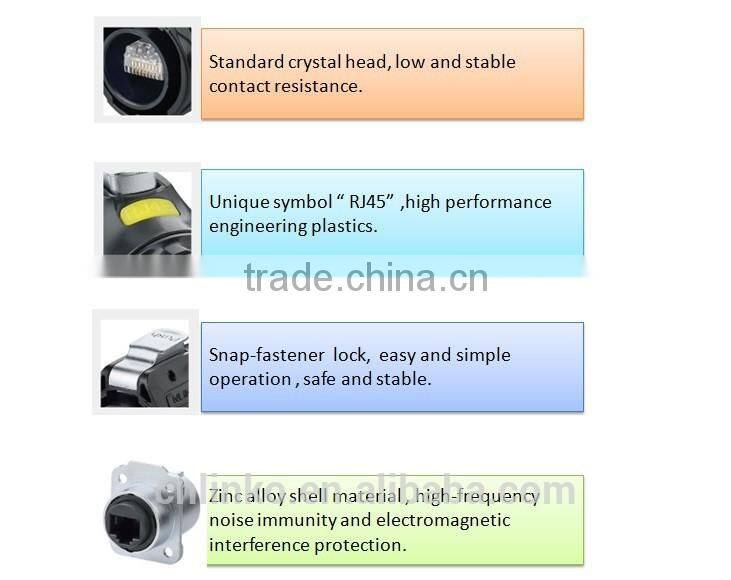

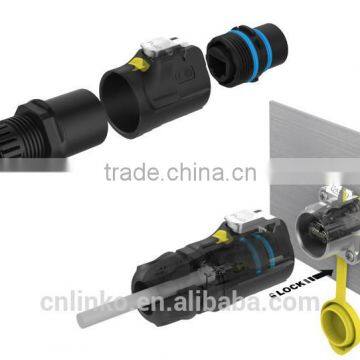

2.easily lock by plug/unplug snap fastener ,ensure safe and stable.
3.varies types for choice,include power , signal ,usb.rj45,fibre optics,meet different industrial demands.
4.stable power and signal transmission,multi-pin power(2-12 pin) with positive and negative type.
5.formed wire technology on pins keep much stable while transmit and tempera ture rise.
6. solderand pressure on copper needles completely comply with outdoor installation.
| Connecting mode: | plug/unplug |
| Protection level: | IP65/IP67 |
| Cable specification: | 0.15mm2 ~ 0.20mm2 /26~24AWG |
| Diameter range: | Φ5.5mm ~Φ7mm |
| Contact diameter×Qty: | 8 |
| Current rating(A): | 1.5A |
| Withstand voltage(AC.V)1min: | 1000V |
| Insulation resistance: | >500MΩ |
| Durability: | ≥500 mating&unmating cycles |
| Temperature rating: | -40°C~80°C |
| Method of connecting cable: | solder |
| Prevent the combustion level: | UL94-V0 |
| Produce type: | Rj45 Ethernet Connector Waterproof Ip67 |
| Material: | |
| Shell&insulated parts: | High performance engineering plastics |
| Hardware metal: | Zinc alloy(pearl hard chromium) |
| Contact pin: | Copper alloy(gold-plated) |
| Spring: | Stainless steel |
| Sealing: | Silica gel |
| Main characteristics: | |
| - Sealed against dust and fluid (IP65/IP67) | |
| - Vibration resistance,impact resistance,stretching resistance | |
| - With one hand, can quickly insert or pull out | |
| Application industries: | |
| - Stage equipment | - The smart grid |
| - Medical equipment | - Server |
| - Solar energy equipment | - Ship equipment |
| - Electric power equipment | - Vehicle equipment |
| - Communications equipment | - Heavy machinery |
1. 5pcs to a box, 40 boxes to a carton,or use customized packing with MOQ1000 pcs/model boxes.
2. Lead time: 7-10 working days after received deposit for Rj45 Ethernet Connector Waterproof Ip67
3. DHL/UPS/Fedex/EMS/TNT(door to door) or use customer partne
1. Supply OEM and ODM service for Rj45 Ethernet Connector Waterproof Ip67
2. With professional quality control system and R&D department
3. To make customized needs with national level laboratory
4.Free samples are available for Rj45 Ethernet Connector Waterproof Ip67
5. supply the best service to you with the contact details below:
TEL:0086-0755-36853901 FAX:0086-0755-86960305
Cellphone: 0086-18312490297
Skype: cnlinko02
Q1:What are connectors?
A1:Connectors are connected to the electrical and mechanical components of electrical circuits.They are widely used in various electrical circuits, plays the role of connecting or disconnecting the circuit.
Q2:What classification do connectors have?
A2: In accordance with the frequency points, a high-frequency connector and the low frequency connectors; in accordance with the shape divided circular connectors, rectangular connectors; in accordance with the zoning, there are connectors for printed boards, cabinets, socket connector, connectors for audio equipment, power connector, connectors, etc. for special purposes.
Q3:What is rated voltage?
A3:Rated voltage also known as operating voltage, which mainly depend on the connector insulation material used, the spacing between the size of contact. Some of the components or devices in less than its rated voltage may not be completed to its functions.
Q4:What is rated Current?
A4: Rated current, also known as operating current. With the rated voltage, as in the case below the rated current, air plug in general can work properly. Plug in the aviation design process, through the thermal design of the connector to meet the requirements of the rated current, because in contact with on a current flow out of date, due to conductor resistance and contact resistance, contact on will be heat. When the heat exceeds a certain limit, the plug will damage the insulation and the formation of air exposure on the surface of the coating to soften, resulting in failure.
A5: Our product have passed UL,CUL,CCC,CE and ROHS certification. Use PBT material that import from abroad with stable,compression, anti-explosion and anti-deformation; Use Zinc alloy material against high frequency noise and electromagnetic interference Use gold-plated contact with high performance of corrosion resistance and electrical conductivity effectively deal with temperature rise.
Q6:Is there cheap shipping cost to import to our country?
A6: For small order,express will be best.And for bulk order,sea ship way is best but take much time. For urgent orders,we suggest via air to airport plus our ship partner send to your door.
Q7:Can we get support if we have our own market position?
A7: Please inform us your detailed mind on your market demand,we will discuss and propose helpful suggestion for you,to find the best solution for you
