Made in china 9 pin stage lighting Male cable connector waterproof electric connector IP67 metal quick connector
YZ-20 connectors,different industries to meet the needs of customers,using all-zinc alloy metal shell structure and the gold plating of electric shock,in line with the needs of high-end products and applications,using a rotary locking,security firm,3pin power and 9pin compatible signal,is widely used in different fields.
1. all zinc alloy shell, intact electromagnetic and radio frequencyinterference
protection, can adapt the demands of top-grade products

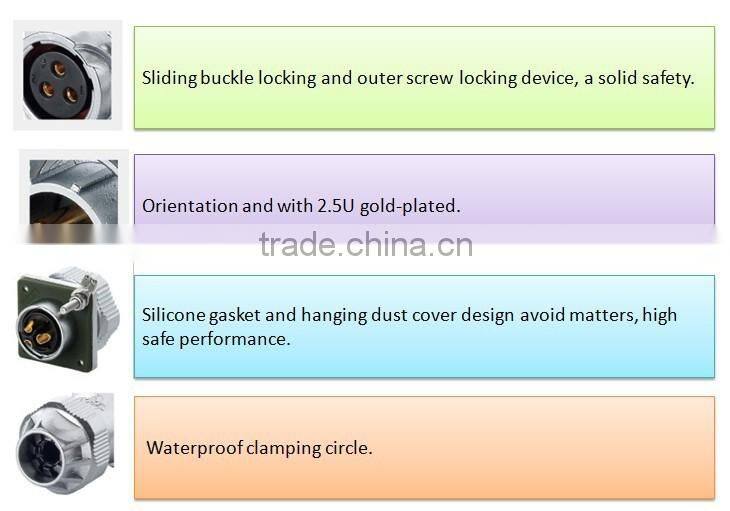

2. Outer screw locking device, solid and safety

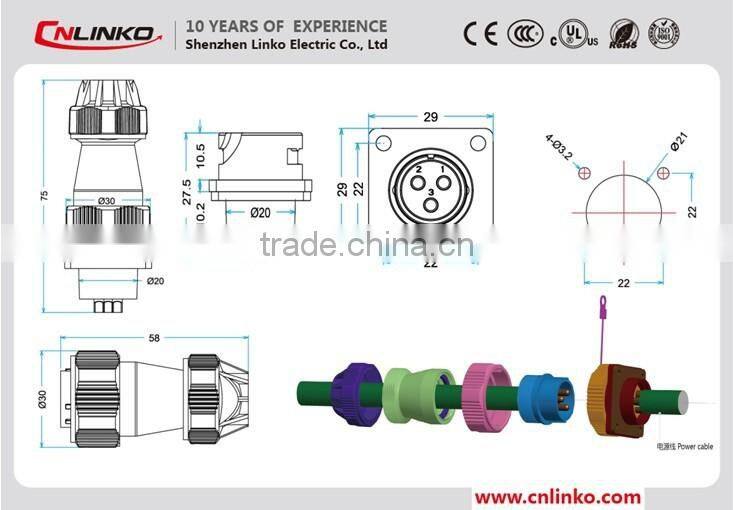

3. 16MM and 20MM optional mounting dimensions

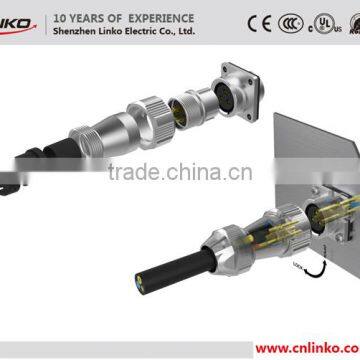

4. quickly and easy nut locking system design
5. Hanging dust cover design avoid matters; high safe performance, easy to operate
6. 2-12pins for choice
7. 5-20A rms rated current
8. Slip-resistant outer circle

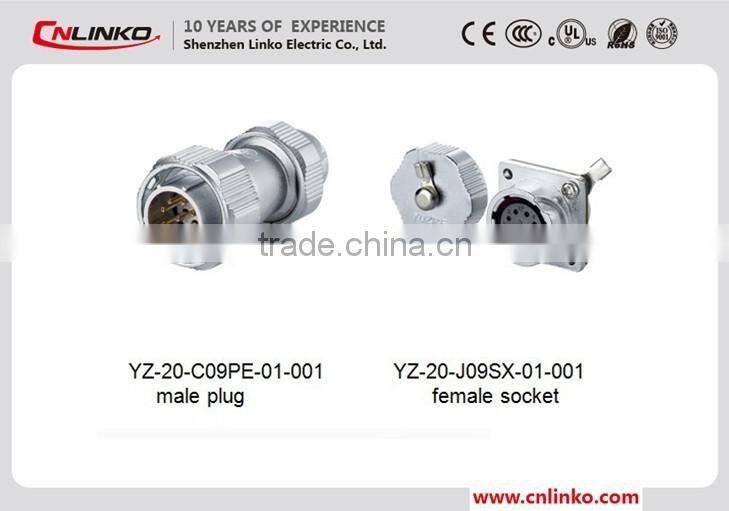

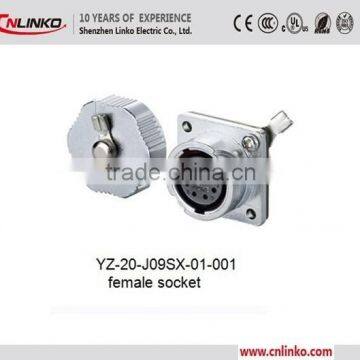

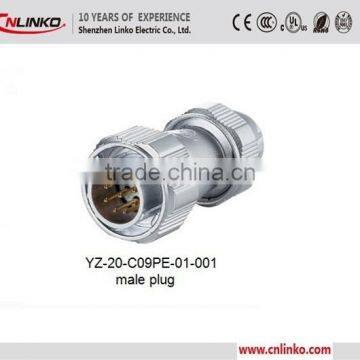

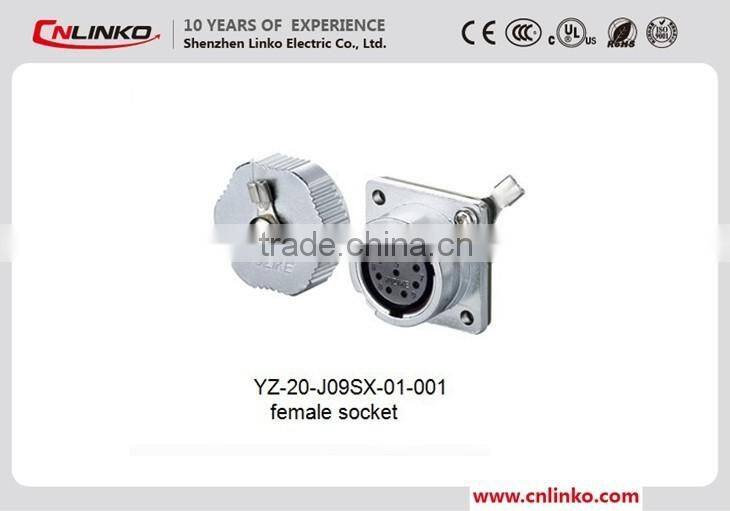

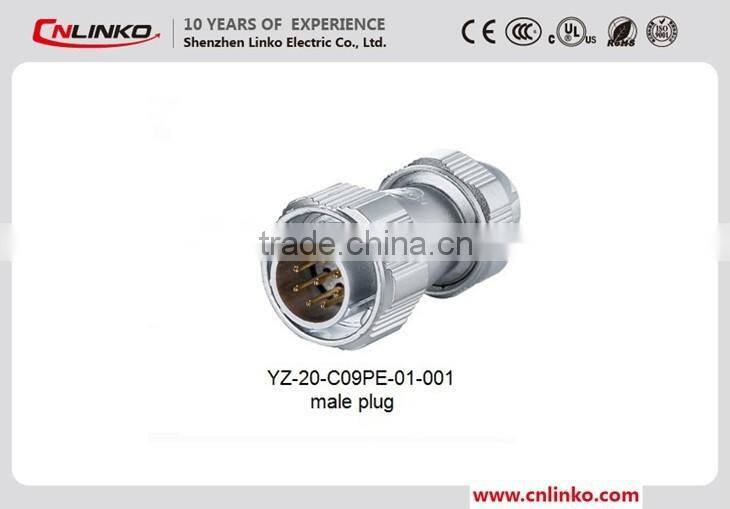

| YZ-20-C09PE-01-001 PLUG & YZ-20-J09SX-01-001 SOCKET | |
| Specifications: | |
| Connecting mode: | 1/4 bayonet connect |
| Protection level: | IP65/IP68 |
| Cable specification: | 0.15mm2 ~ 0.2mm2 /26~24 AWG |
| Diameter range: | Φ5.5mm ~Φ7mm |
| Contact diameter×Qty: | 1.0X9 |
| Current rating(A): | 5A |
| Operating voltage(AC.V.rms): | 400V |
| Contact resistance: | <1mΩ |
| Insulation resistance: | >500MΩ |
| Durability: | ≥500 mating&unmating cycles |
| Temperature rating: | -40°C~80°C |
| Method of connecting cable: | Solder |
| Prevent the combustion level: | UL94-V0 |
| Material: | |
| Shell&insulated parts: | High performance engineering plastics |
| Hardware metal: | Zinc alloy(pearl hard chromium) |
| Contact pin: | Copper alloy(gold-plated) |
| Sealing: | Silica gel |
| Application industries: | |
| - Stage equipment | - The smart grid |
| - Medical equipment | - Server |
| - Solar energy equipment | - Ship equipment |
| - Electric power equipment | - Vehicle equipment |
| - Communications equipment | - Heavy machinery |
Normally, our price is based on our box packing.
Customized packing is welcome , MOQ of printing customized box is 1000 pcs/model
Delivery Detail: 7-10 working days after received deposit .
You may choose our shipping partner or your own partner .
100% T/T in advance is required after confirming the order.
CE,CCC,CUL,UL, ROHS, ISO9001:2008 Standard.
Supply OEM service .
We have professional quality control system and R&D department to strictly manufacture each product.
100,000 pcs per month .
National level laboratory , and have flexible production line, to make quick action to urgent customized needs.
We will supply the best service to you . Anything ,please feel free to contact us at:
ShenZhen Linko Electric Co., Ltd was established in 2004, is an enterprise specialized in designing and manufacturing industrial connectors & waterproof connector.Our products have UL/CE/RoHS/CCC certificates and can pass TUV testing.
We have a vigorous and creative R&D team with the fullest mastery of the core technology. We commit ourselves to the development of high performance connector producing, and dedicate ourselves to reaching the international leading level.
We insisting on the tenet of "high efficiency, high quality, high prestige" and with years of integration of technology and production process, excellent quality of products and technical services, our company gained high reputation from our customers , such as, Skyworth, Huawei, GREE, Midea, ZTE, Foxconn, DESAY, etc.
Our production of industrial connector includes LP,YP, RJ45, YF, YA,USB,YW, YZ, YM , and other series of products. Base on its high degree of accuracy, high-quality automatic insertion & the self-locking device. Our products are widely used in a variety of challenging environments and situations, such as, LED screen industry, medical equipment, industrial control, detection and measurement equipment, AV system, broadcast television and telecommunications industry, the nuclear industry and military industry and other fields.
We adhere to such principles “Integrity-based, quality-first, technological precedence, & greater perfection”. And we sincerely look forward to the new and old customers' patronage and we will be dedicated to the most outstanding product quality and the most reasonable processing cycle, to provide you with the most satisfactory service.
