Made in china waterproof metal 12pin electrical connector waterproof cable connector 12 pin male female connector
- shenzhen
- T/T Credit Card
You May Like
-
ac/dc plug adapter Male Female 8 Pole Dual Rj45 Connector For DMX Lighting
-
Assembled Rj45 Panel Mount Waterproof 8 Gauge Wire Connectors With Plastic Shell
-
New 8P8C Waterproof 8pin rj45 ethernet connector With Network Cable Lan Cable
-
High Quality Cat5 Waterproof Ethernet Connector Rj45 8p8c For Lan Cable
-
Best Price Waterproof Cat5e/cat5 8Pin Poe Shielded Rj45 Connector With CE ROHS
-
High Performance High Speed Metal Ethernet Rj45 Connector With 1.5A 1000V
Product Details
Place of Origin | Guangdong, China | Brand Name | CNLINKO | |

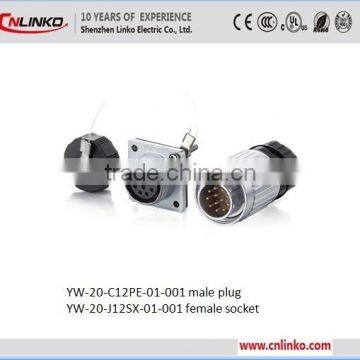

Model Number | YW-20-C12PE-01-001,YW-20-J12SX-01-001 | Type | XLR | |
Application | Power | Gender | Other, male and female |
Product Description
Made in china waterproof metal 12pin electrical connector waterproof cable connector 12 pin male female connector
YW waterproof connector,zinc alloy shell,effective safety and signal shielding,using the locking screw,more secure and reliable.
1.All zinc alloy shell,complete with electromagnetic and radio frequency interference protection,while meeting the needs of high-end products to match
2.Outer screw locking device,a solid safety.
3.16MM and 20MM optional mounting dimensions.
4.Quick and easy nut locking system design.
5.Hanging dust cover design avoid matters;high safe performance,easy to operate.
6.2-12 pins for choice.
7.5-20A rms rated current.
8.Slip-resistant outer circle
YW-20-C12PE-01-001,YW-20-J12SX-01-001 | |
Specifications: | |
Connecting mode: | Plug/unplug, |
Protection level: | IP68 |
Cable specification: | 0.15 mm2 ~ 0.2 mm2 /26~24 AWG |
Diameter range: | Φ5.5mm ~Φ7mm |
Contact diameter×Qty: | Φ1.0×12 |
Current rating(A): | 5A |
Operating voltage(AC.V.rms): | 400V |
Withstand voltage(AC.V)1min: | 1500V |
Contact resistance: | <5mΩ |
Insulation resistance: | >500MΩ |
Durability: | ≥500 mating&unmating cycles |
Temperature rating: | -40°C~80°C |
Method of connecting cable: | Solder |
Prevent the combustion level: | UL94-V0 |
Temperature rise: | 12A per contact at 30°C, 15A per contact at 40°C, 20A per contact at 50°C. |
Material: | |
Shell&insulated parts: | High performance engineering plastics |
Hardware metal: | Zinc alloy(pearl hard chromium) |
Contact pin: | Copper alloy(gold-plated) |
Spring: | Stainless steel |
Sealing: | Silica gel |
Main characteristics: | |
- Sealed against dust and fluid (IP68) | |
- Vibration resistance,impact resistance,stretching resistance | |
- With one hand, can quickly insert or pull out | |
Application industries: | |
- Stage equipment | - The smart grid |
- Medical equipment | - Server |
- Solar energy equipment | - Ship equipment |
- Electric power equipment | - Vehicle equipment |
- Communications equipment | - Heavy machinery |
Normally, our price is based on our box packing.
Customized packing is welcome , MOQ of printing customized box is 1000 pcs/model
Delivery Detail: 7-10 working days after received deposit .
You may choose our shipping partner or your own partner .
100% T/T in advance is required after confirming the order.
CE,CCC,CUL,UL, ROHS, ISO9001:2008 Standard.
Supply OEM service .
We have professional quality control system and R&D department to strictly manufacture each product.
100,000 pcs per month .
National level laboratory , and have flexible production line, to make quick action to urgent customized needs.
We will supply the best service to you . Anything ,please feel free to contact us at:
ShenZhen Linko Electric Co., Ltd was established in 2004, is an enterprise specialized in designing and manufacturing industrial connectors & waterproof connector.Our products have UL/CE/RoHS/CCC certificates and can pass TUV testing.
We have a vigorous and creative R&D team with the fullest mastery of the core technology. We commit ourselves to the development of high performance connector producing, and dedicate ourselves to reaching the international leading level.
We insisting on the tenet of "high efficiency, high quality, high prestige" and with years of integration of technology and production process, excellent quality of products and technical services, our company gained high reputation from our customers , such as, Skyworth, Huawei, GREE, Midea, ZTE, Foxconn, DESAY, etc.
Our production of industrial connector includes LP,YP, RJ45, YF, YA,USB,YW, YZ, YM , and other series of products. Base on its high degree of accuracy, high-quality automatic insertion & the self-locking device. Our products are widely used in a variety of challenging environments and situations, such as, LED screen industry, medical equipment, industrial control, detection and measurement equipment, AV system, broadcast television and telecommunications industry, the nuclear industry and military industry and other fields.
We adhere to such principles “Integrity-based, quality-first, technological precedence, & greater perfection”. And we sincerely look forward to the new and old customers' patronage and we will be dedicated to the most outstanding product quality and the most reasonable processing cycle, to provide you with the most satisfactory service.
