Help Center2015 Top Manufacture IP65/67 Waterproof 2pin Circular Connector
Related Products
-
Newest Design IP65/67 Waterproof 3 Pin Bayonet Male ConnectorNegotiableMOQ: 100 Sets -
Competitive Quality UL Approved Waterproof 3 Pin Cable Connector for LEDNegotiableMOQ: 100 Sets
-
New Products Waterproof 3 Pin Connector ip 65NegotiableMOQ: 100 Sets
-
CE Approved IP65 Waterproof 3 Pin Wire Connector for LEDNegotiableMOQ: 100 Sets
-
IP65 Waterproof 3 Pin Circle Connector for LEDNegotiableMOQ: 100 Sets
Specifications
1.UL CE,CCC,CUL,ROHS,2.IP65/IP68
3.plug/unplug
4.Assembly wire: solder
5.Pin 2/3/4/5/7/9/12 is available
2015 top manufacture IP65/67 waterproof 2pin circular connector
1.LED screen industry
2.audio-visual equipment
dical equipment
4.industrial control test and measurement equipment
5.AV systems,broadcast television and communications industry and other fields.
6. wire connector
LP series electrical connectors IP65/IP68
1.multi-pins(2-12 PINS) for varies industrial demands
2.Zinc alloy material against high frequency noise and electromagnetic interference

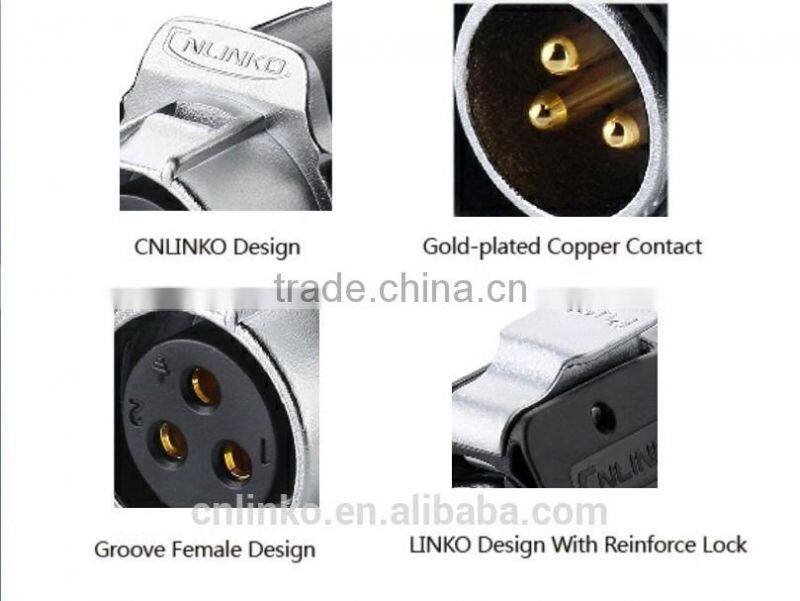

3.gold-plated contact, high performance of corrosion resistance and
4.electrical conductivity effectively deal with temperature rise.
5.PBT shell performance stable, compression, anti-explosion and anti-deformation
6.rated current: 20A rms
tection level:IP65/IP68

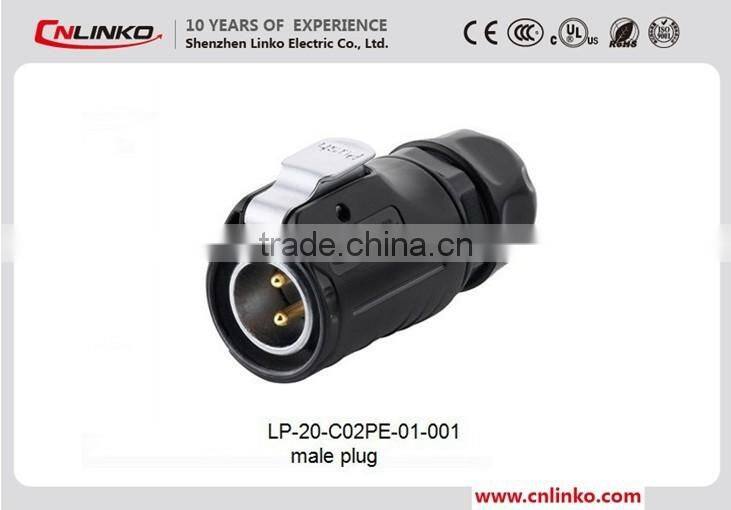

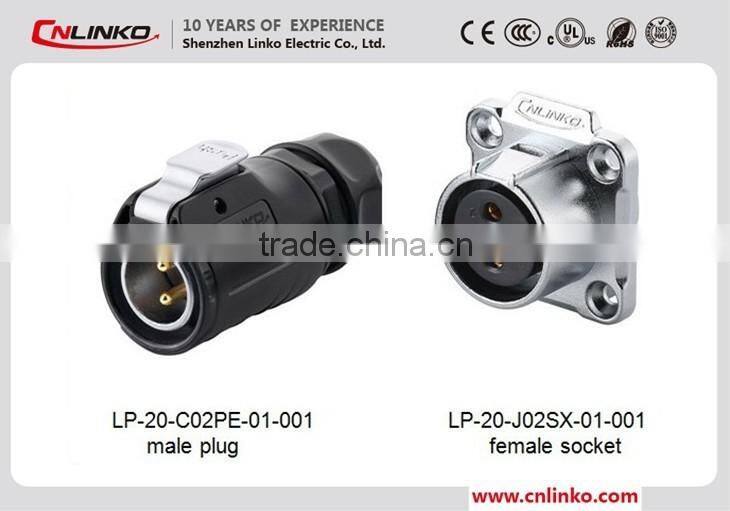

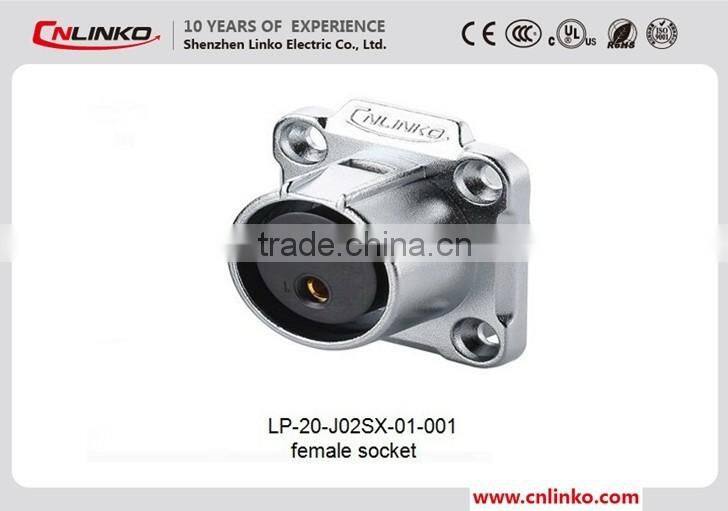

| LP-20-CJ02E-01-001 plug &socket | |
| Specifications: | |
| Connecting mode: | PLUG /UNPLUG |
| Protection level: | IP65/IP68 |
| Cable specification: | 2.5mm2 ~ 4 mm2 /14~12 AWG |

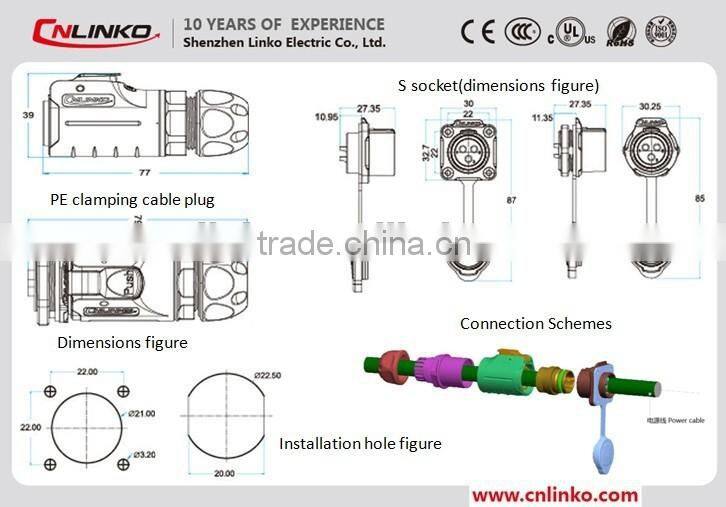

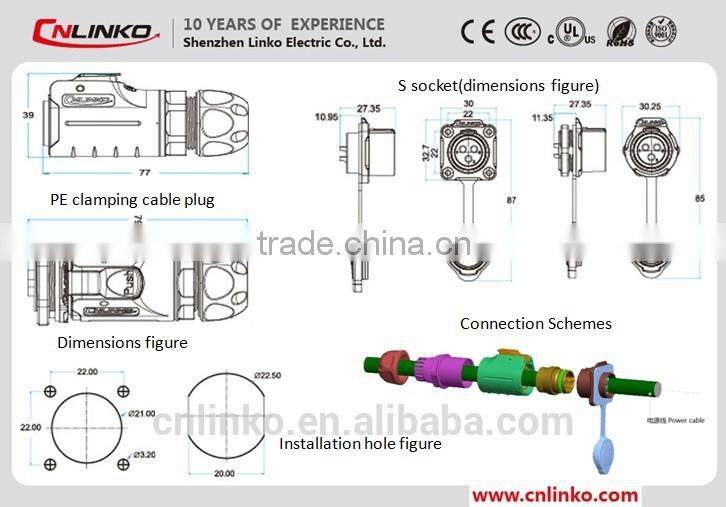

| Diameter range: | Φ8mm ~Φ12mm |
| Contact diameter×Qty: | Φ3.0×2 |
| Current rating(A): | 20A |
| Operating voltage(AC.V.rms): | 500V |
| Withstand voltage(AC.V)1min: | 2500V |
| Contact resistance: | <1mΩ |
| Insulation resistance: | >500MΩ |
| Durability: | ≥500 mating&unmating cycles |
| Temperature rating: | -40°C~80°C |
| Method of connecting cable: | Solder |
| Prevent the combustion level: | UL94-V0 |
| Temperature rise: | 20A per contact at 30°C, 25A per contact at 40°C, 30A per contact at 50°C. |
| Material: | |
| Shell&insulated parts: | High performance engineering plastics |
| Hardware metal: | Zinc alloy(pearl hard chromium) |
| Contact pin: | Copper alloy(gold-plated) |
| Spring: | Stainless steel |
| Sealing: | Silica gel |
| Main characteristics: | |
| - Sealed against dust and fluid (IP65/IP68) | |
| - Vibration resistance,impact resistance,stretching resistance | |
| - 1/4 bayonet connect; socket with cover | |
| Application industries: | |
| - Stage equipment | - The smart grid |
| - Medical equipment | - Server |
| - Solar energy equipment | - Ship equipment |
| - Electric power equipment | - Vehicle equipment |
| - Communications equipment | - Heavy machinery |
- Normally, our price is based on our box packing.
- Customized packing is welcome , MOQ of printing customized box is 1000 pcs/model
- Delivery Detail: 7-10 working days after received deposit .
- You may choose our shipping partner or your own partner .
- 100% T/T in advance is required after confirming the order.
- CE,CCC,CUL,UL, ROHS, ISO9001:2008 Standard.
- Supply OEM service .
- We have professional quality control system and R&D department to strictly manufacture each product.
- 100,000 pcs per month .
- National level laboratory , and have flexible production line, to make quick action to urgent customized needs.
- We will supply the best service to you . Anything ,please feel free to contact us at:
- Oversea’s department
- TEL:0086-0755-86960323 FAX:0086-0755-86960305
- Skype: cnlinko05
- Website: ; http://yuzike.en.china.cn
ShenZhen Linko Electric Co., Ltd was established in 2004, is an enterprise specialized in designing and manufacturing industrial connectors & waterproof connector.Our products have UL/CE/RoHS/CCC certificates and can pass TUV testing. We have a vigorous and creative R&D team with the fullest mastery of the core technology. We commit ourselves to the development of high performance connector producing, and dedicate ourselves to reaching the international leading level. We insisting on the tenet of "high efficiency, high quality, high prestige" and with years of integration of technology and production process, excellent quality of products and technical services, our company gained high reputation from our customers , such as, Skyworth, Huawei, GREE, Midea, ZTE, Foxconn, DESAY, etc. Our production of industrial connector includes LP,YP, RJ45, YF, YA,USB,YW, YZ, YM , and other series of products. Base on its high degree of accuracy, high-quality automatic insertion & the self-locking device. Our products are widely used in a variety of challenging environments and situations, such as, LED screen industry, medical equipment, industrial control, detection and measurement equipment, AV system, broadcast television and telecommunications industry, the nuclear industry and military industry and other fields. We adhere to such principles “Integrity-based, quality-first, technological precedence, & greater perfection”. And we sincerely look forward to the new and old customers' patronage and we will be dedicated to the most outstanding product quality and the most reasonable processing cycle, to provide you with the most satisfactory service.
