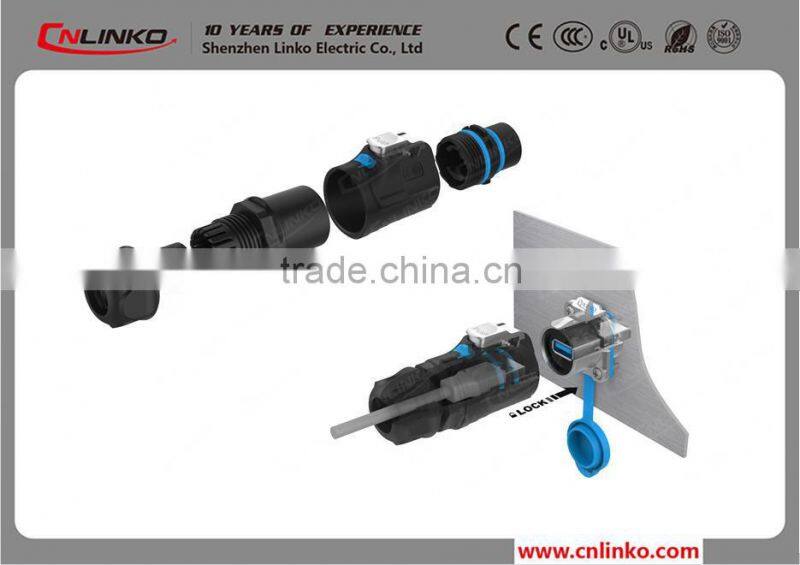

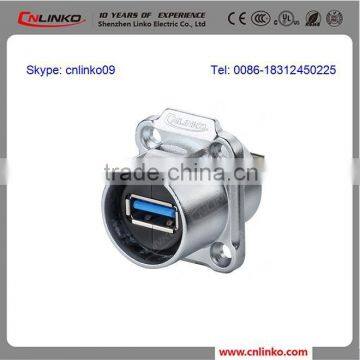

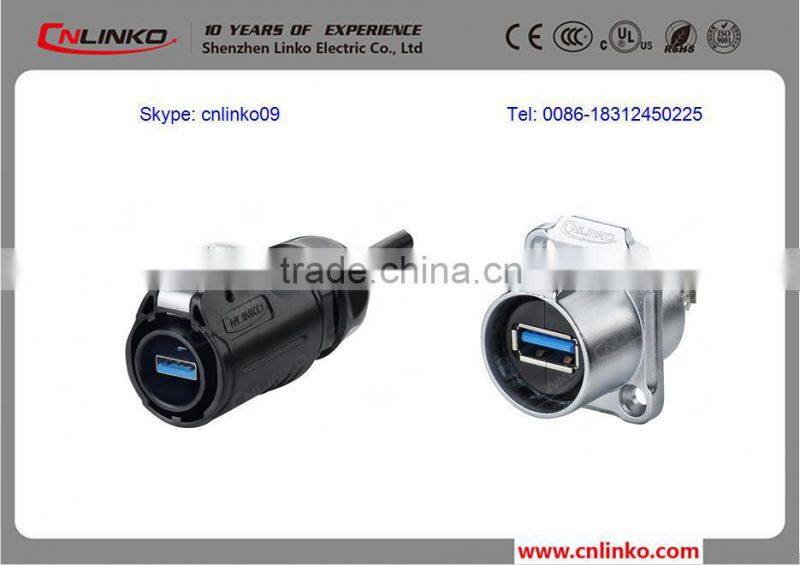

Economic best sell Usb 3.0 Version Connector Circular Waterproof Usb 3.0 Receptacle Two Sided Usb Cable

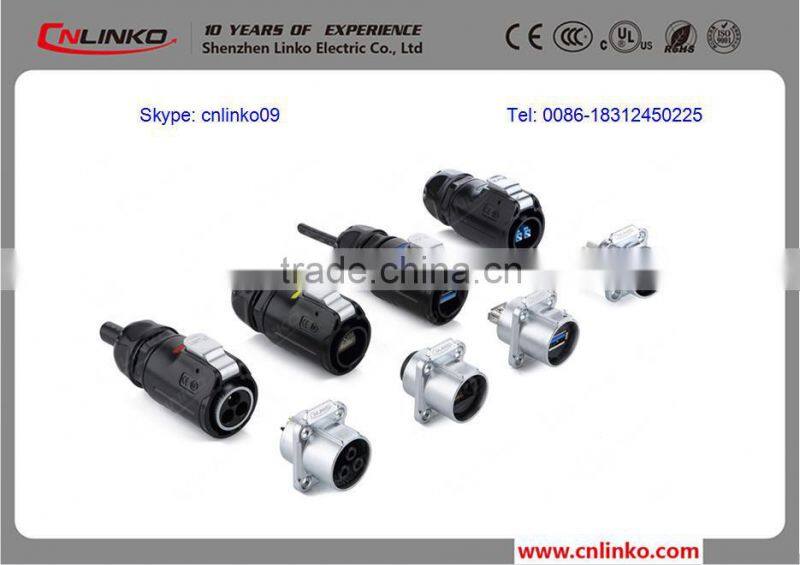

LP-24 Series connectors ,containing RJ45,USB,power,fiber optics and other models with hole size 24MM to meet different needs of industry and we use nickel-plated and Zinc alloy to guarantee quality and apply with international environment protection of industrial as well.
LP-24 series with multi-industry extension,USB,telecommunications,signal,fiber optic,HDMI,etc,and customized specialty ,pin series,such as :3pin,power+9pin,signal...
1.Durable and dust protection with dual-channel fiber optic connection system
2.Zinc alloy shell material with a hard shell and superior cable protection force
3.Silicone tail clip coil diameter of the optical fiber can be divided into different holding fixed,high fastening strength and stability to reduce back tension, to aviod distruption of optical signal loss.
5.Chuck propulsion fastening system to ensure alignment of fiber and ceramic pin axial,radial position precision postioning to ensure flexibility and another pin face of tight butt,butt eradicate fake,designed insertion loss less than 0.3db,back loss greater than 45.
6.Ensure the product life-cycle process of continuation high reliability,and in exceptional circumstances(moisture,pollution,etc.),user self-cleaning process,no engineering staff intervention,low maintenance costs.
7.protection level:IP67/IP68
Product Information:

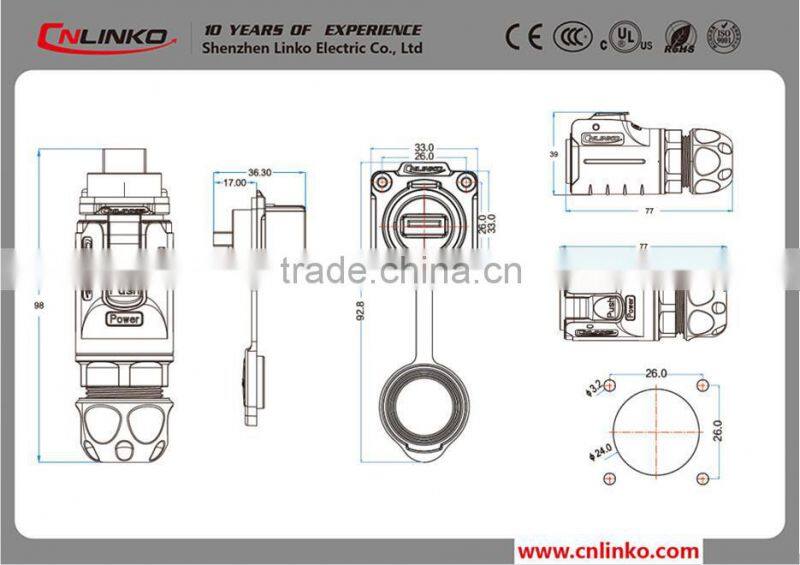

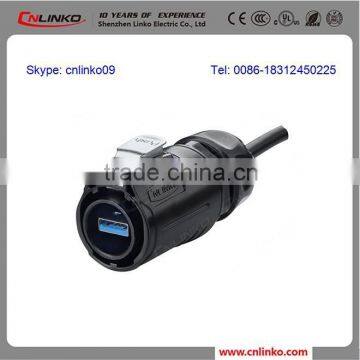

LP-24-USB3.0-P01,LP-24-USB3.0-S01 | |
| Connecting mode: | plug/unplug |
| Protection level: | IP65/IP68 |
| Cable specification: | 0.15mm2 ~ 0.20 mm2 /26~24AWG |
| Diameter range: | Φ5.5mm ~Φ7mm |
| Contact diameter×Qty: | 9 |
| Contact resistance: | <1mΩ |
| Insulation resistance: | >500MΩ |
| Durability: | ≥500 mating&unmating cycles |
| Temperature rating: | -40°C~80°C |
| Method of connecting cable: | solder |
| Prevent the combustion level: | UL94-V0 |
| Produce type: | Ip67-68 Waterproof Usb Female Connector |
| Material: | |
| Shell&insulated parts: | High performance engineering plastics |
| Hardware metal: | Zinc alloy(pearl hard chromium) |
| Contact pin: | Copper alloy(gold-plated) |
| Spring: | Stainless steel |
| Sealing: | Silica gel |
| Main characteristics: | |
| - Sealed against dust and fluid (IP65/IP68) | |
| - Vibration resistance,impact resistance,stretching resistance | |
| - With one hand, can quickly insert or pull out | |
| Application industries: | |
| - Stage equipment | - The smart grid |
| - Medical equipment | - Server |
| - Solar energy equipment | - Ship equipment |
| - Electric power equipment | - Vehicle equipment |
| - Communications equipment | - Heavy machinery |
1. 5pcs to a box, 40 boxes to a carton,or use customized packing with MOQ1000 pcs/model boxes.
2. Lead time: 7-10 working days after received deposit
3. DHL/UPS/Fedex/EMS/TNT(door to door) or use customer partner
