Home > Products > Data connector > IP67 Waterproof USB Audio Adapter Jack, Compatible USB 2.0 Driver Connector for Ethernet Cable Splitter
IP67 Waterproof USB Audio Adapter Jack, Compatible USB 2.0 Driver Connector for Ethernet Cable Splitter
- 100 Piece / Pieces per Month
- Shenzhen
- T/T Credit Card
Product Details
Place of Origin: | Guangdong, China | Brand Name: | CNLINKO | Model Number: | YU-USB3-CPI-01-100; YU-USB-JSX-01-001 |
Type: | USB | Application: | Other, data | Gender: | Other, male and female |
Product Description
Specifications
usb audio adapter jack1.CE,CCC,CUL,UL,ROHS,ISO9001:2008;
2.IP67 waterproof;
patible usb 2.0 driver;
4.ethernet cable.
IP67 Waterproof USB Audio Adapter Jack, Compatible USB 2.0 Driver Connector for Ethernet Cable Splitter
With PBT shell performance stable, compression, anti-explosion and anti-deformation unique dock connecting to extend cable length and Solid connections system can provide the solutions for data transmission in harsh environments, easy to install and operate.
Widely used in: computers, digital cameras, scanner and other transmission equipment. Varies types, can achieve male and female conversion docking, independent female, male with cable and so on.

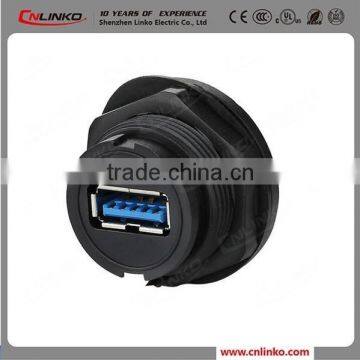

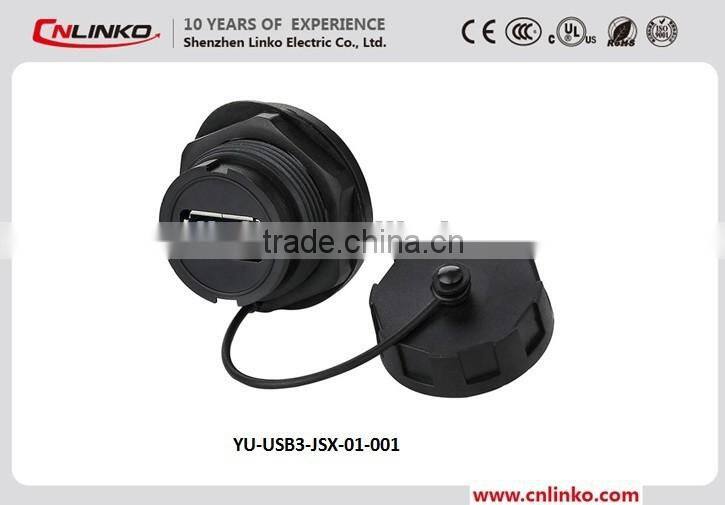

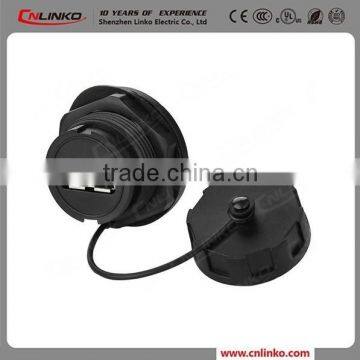

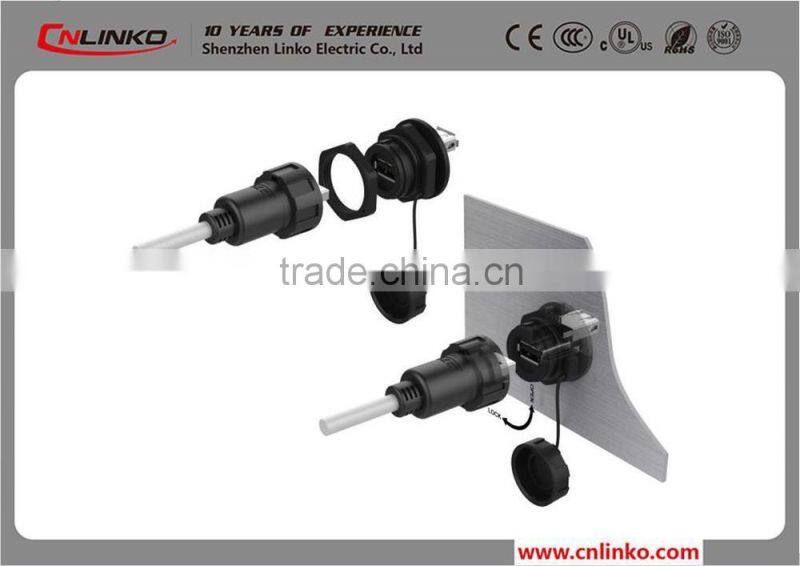

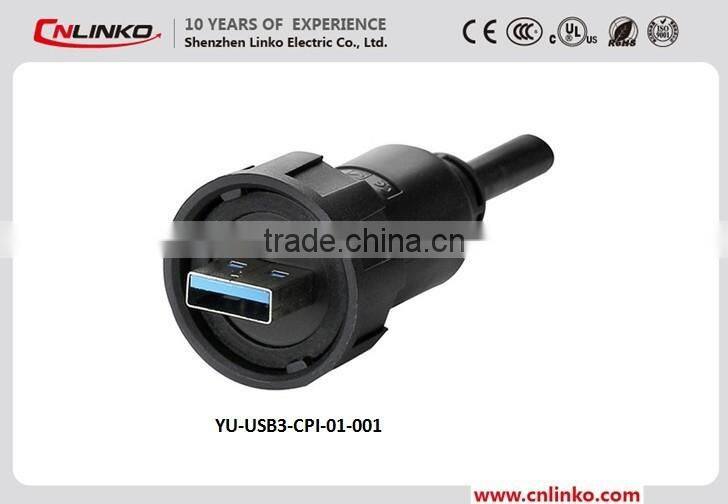

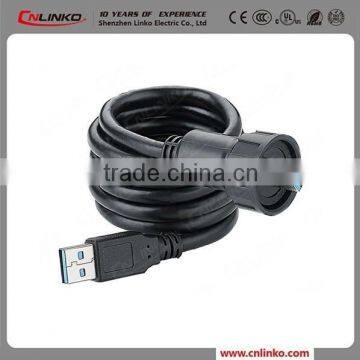

Product Pictures:
Product Datasheet:
YU-USB-CPI-01-100; YU-USB3-JSX-01-001 Male Plug with 1M cable; Female Socket | |
Specification | |
Connecting mode: | Quickly bayonet connect |
Protection level: | IP67 |
Cable specification: | 0.15 mm2 ~ 0.2mm2 /26~24AWG |
Diameter range: | Φ5.5mm ~Φ7mm |
Contact diameter×Qty: | 9 |
Current rating(A): | 1.5A |
Withstand voltage(AC.V)1min: | 1000V |
Contact resistance: | <30mΩ |
Insulation resistance: | >500MΩ |
Durability: | ≥500 mating&unmating cycles |
Temperature rating: | -40°C~80°C |
Method of connecting cable: | solder |
Prevent the combustion level: | UL94-V0 |
Produce type: | Usb Panel Mount Connector |
Material: | |
Shell&insulated parts: | High performance engineering plastics |
Hardware metal: | Zinc alloy(pearl hard chromium) |
Contact pin: | Copper alloy(gold-plated) |
Spring: | Stainless steel |
Sealing: | Silica gel |
Main characteristics: | |
- Sealed against dust and fluid (IP65/IP67) | |
- Vibration resistance,impact resistance,stretching resistance | |
- With one hand, can quickly insert or pull out | |
Application industries: | |
- Stage equipment | - The smart grid |
- Medical equipment | - Server |
- Solar energy equipment | - Ship equipment |
- Electric power equipment | - Vehicle equipment |
- Communications equipment | - Heavy machinery |

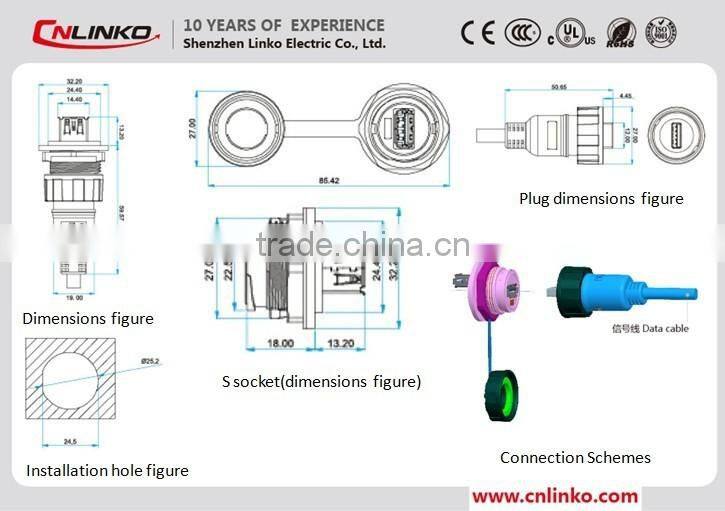

Product Dimensions:
1. 5pcs to a box, 40 boxes to a carton,or use customized packing with MOQ1000 pcs/model boxes.
2. Lead time: 3-5 working days after received deposit for Usb Panel Mount Connector
3. DHL/UPS/Fedex/EMS/TNT(door to door) or use customer partner
1.Supply OEM and ODM service for Usb Panel Mount Connector
2.With professional quality control system and R&D department
3.To make customized needs with national level laboratory
4.Free samples are available for Waterproof Usb Panel Mount Connector
5.supply the best service to you with the contact details below:
TEL: 0086-0755-86960323 FAX: 0086-0755-86960305
Cellphone: 0086-183 1245 0225
Skype: cnlinko09
