Wifi USB 3.0 Connector, Suitable for High Speed Scanner 9 pin Connector USB 3.0
With PBT shell performance stable, compression, anti-explosion and anti-deformation unique dock connecting to extend cable length and Solid connections system can provide the solutions for data transmission in harsh environments, easy to install and operate.
Widely used in: computers, digital cameras, scanner and other transmission equipment. Varies types, can achieve male and female conversion docking, independent female, male with cable and so on.

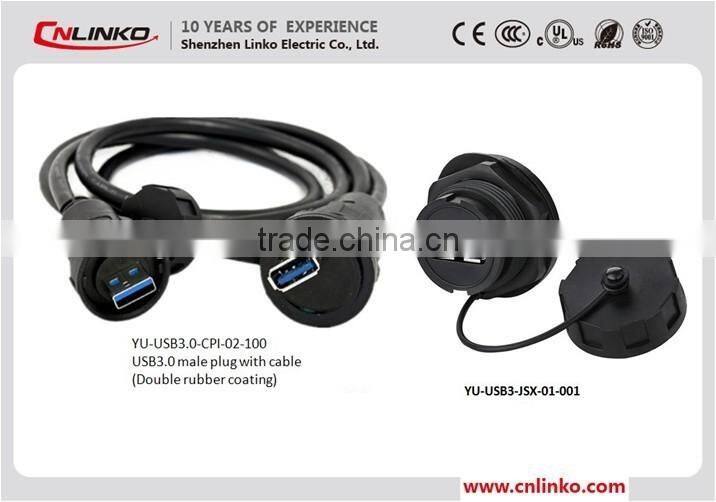

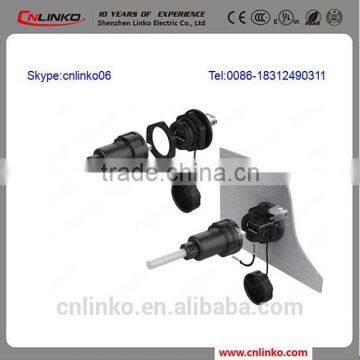

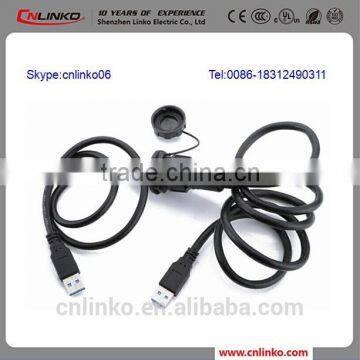

Product Pictures:
Product Datasheet:
|
YU-USB-CPI-01-100; YU-USB3-JSX-01-001 Male Plug with 1M cable; Female Socket | |
| Specification | |
| Connecting mode: | Quickly bayonet connect |
| Protection level: | IP67 |
| Cable specification: | 0.15 mm2 ~ 0.2mm2 /26~24AWG |
| Diameter range: | Φ5.5mm ~Φ7mm |
| Contact diameter×Qty: | 9 |
| Current rating(A): | 1.5A |
| Withstand voltage(AC.V)1min: | 1000V |
| Contact resistance: | <30mΩ |
| Insulation resistance: | >500MΩ |
| Durability: | ≥500 mating&unmating cycles |
| Temperature rating: | -40°C~80°C |
| Method of connecting cable: | solder |
| Prevent the combustion level: | UL94-V0 |
| Produce type: | Usb Panel Mount Connector |
| Material: | |
| Shell&insulated parts: | High performance engineering plastics |
| Hardware metal: | Zinc alloy(pearl hard chromium) |
| Contact pin: | Copper alloy(gold-plated) |
| Spring: | Stainless steel |
| Sealing: | Silica gel |
| Main characteristics: | |
| - Sealed against dust and fluid (IP65/IP67) | |
| - Vibration resistance,impact resistance,stretching resistance | |
| - With one hand, can quickly insert or pull out | |
| Application industries: | |
| - Stage equipment | - The smart grid |
| - Medical equipment | - Server |
| - Solar energy equipment | - Ship equipment |
| - Electric power equipment | - Vehicle equipment |
| - Communications equipment | - Heavy machinery |
Product Dimensions:
1. 5pcs to a box, 40 boxes to a carton,or use customized packing with MOQ1000 pcs/model boxes.
2. Lead time: 3-5 working days after received deposit for Usb Panel Mount Connector
3. DHL/UPS/Fedex/EMS/TNT(door to door) or use customer partner
1.Supply OEM and ODM service for Usb Panel Mount Connector
2.With professional quality control system and R&D department
3.To make customized needs with national level laboratory
4.Free samples are available for Waterproof Usb Panel Mount Connector
5.supply the best service to you with the contact details below:
TEL: 0086-0755-86960323 FAX: 0086-0755-86960305
Cellphone: 0086-183 1249 0311
Skype: cnlinko06
