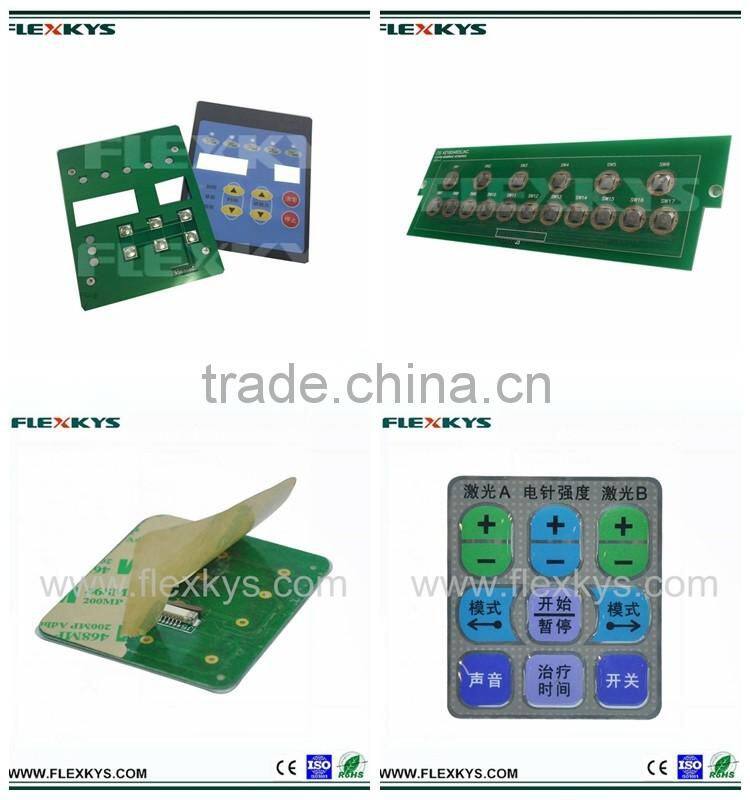

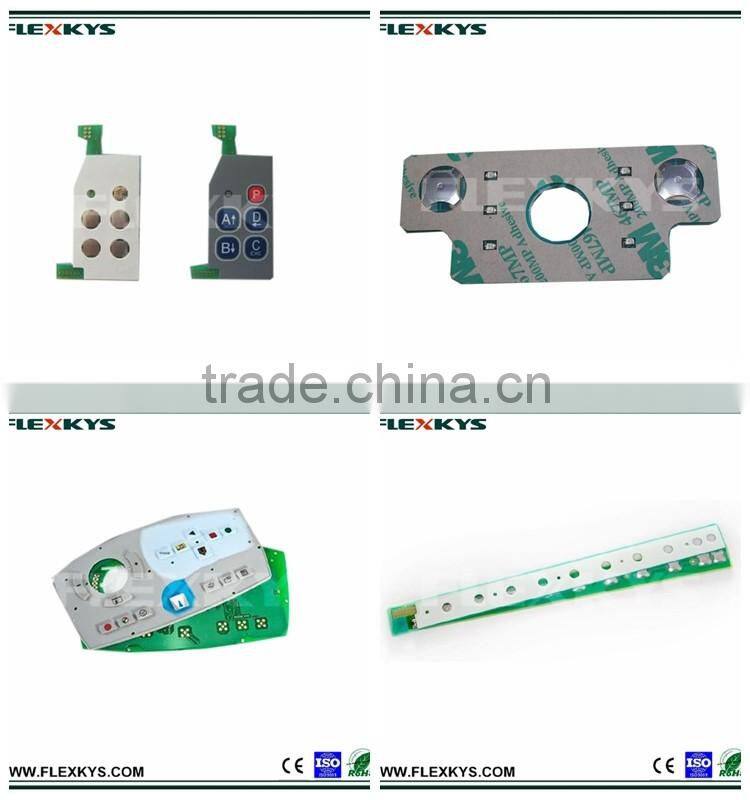

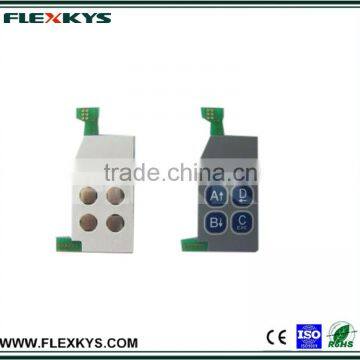

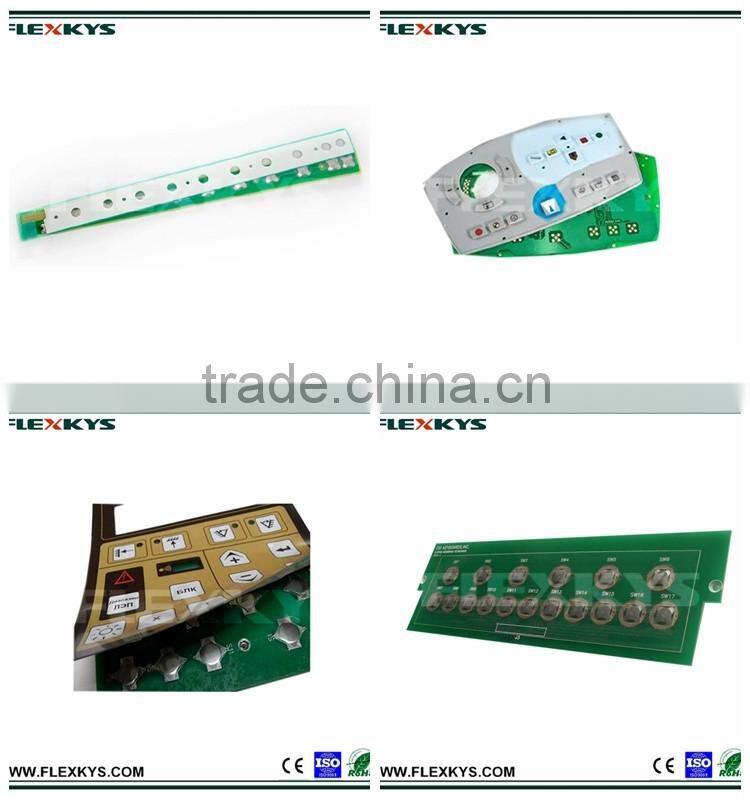

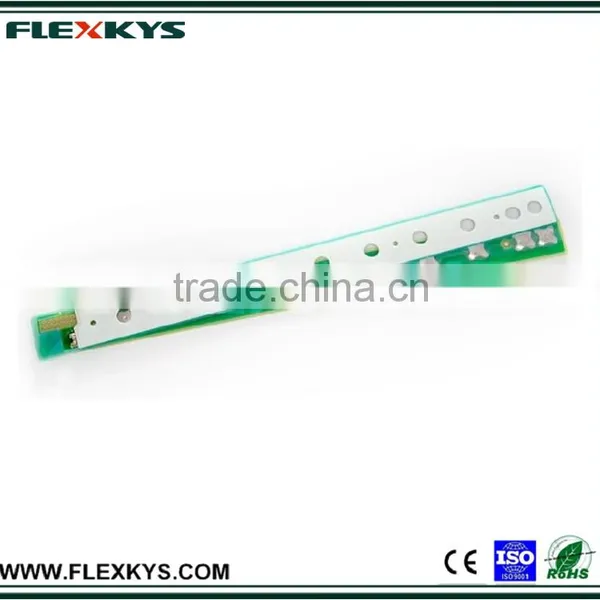

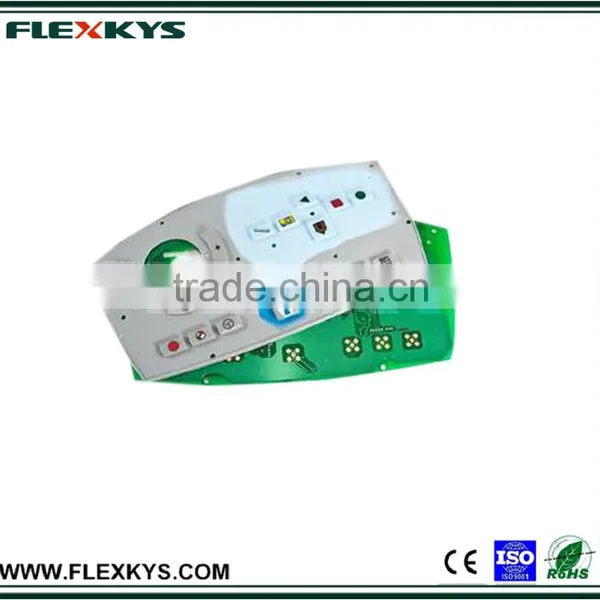

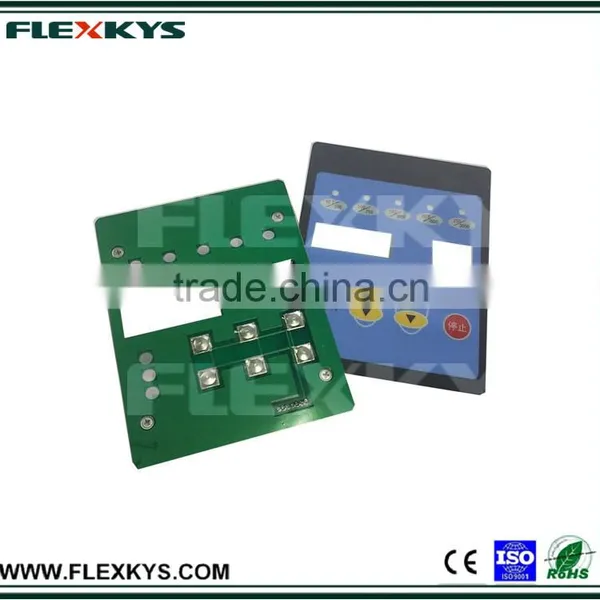

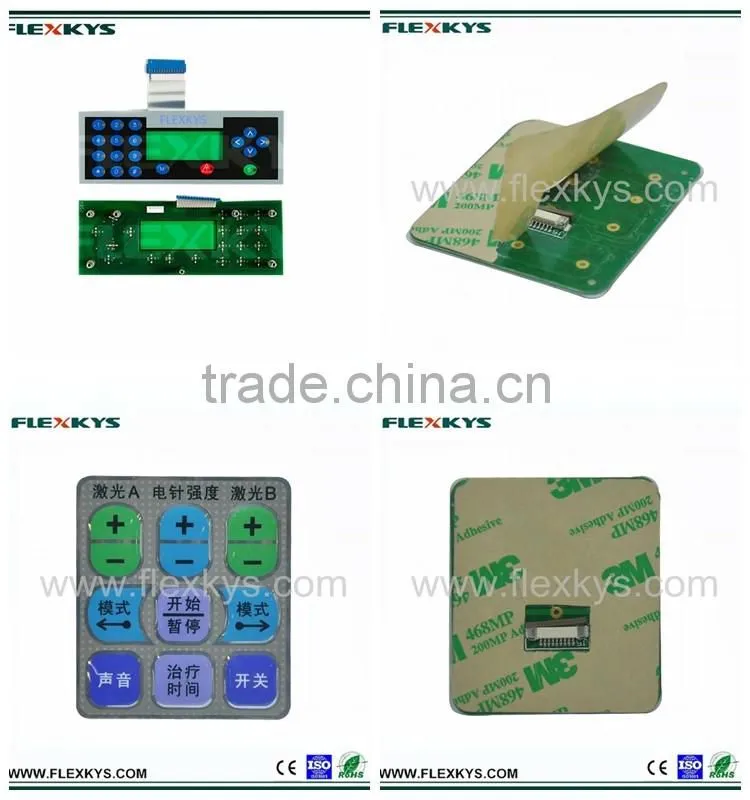

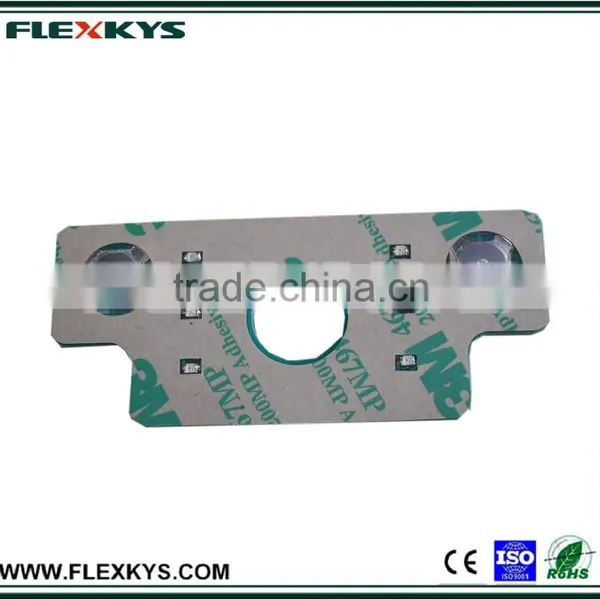

High quality metal dome PCB based membrane keyboard switches
- 500000 Piece / Pieces per Month
- Shanghai
- Credit Card
You May Like
-
PCB membrane keyboard switch with full cover ESD tail
-
Custom prototype PCB printed circuit board membrane switch
-
PCB based embossed key membrane switch
-
Own factory embossed keys metal dome tactile membrane switch for filling machine
-
Electronic scale control panel membrane switches with flat pins
-
Generic silk-screen customized push button polydome membrane switch for electronic scale
Product Details
| Place of Origin | Jiangsu, China | Brand Name | Flexkys | |
| Model Number | OEM | Application | Other, Home Appliance, Electronics Device | |
| Keypad Button Material | Other, PET/PC |
Product Description
What are PCB Membrane Switches?
A PCB (or printed circuit board), is typically made of copper-clad cloth or fiber infused into a resin material. The cloth/fiber used, along with the resin material, creates a cloth-to-resin ratio to determine the laminate’s type designation (FR-4, CEM-1, G-10, etc.). FR-4 is the most common material used today.
An acid-resistant solder mask is applied to the copper-clad PCB, and the exposed areas (not covered by the solder mask) are etched away using acid. The exposed copper pathways are plated with various metals to protect the copper from corrosion. Gold plating is often required on many PCBs in critical applications where corrosion and exposure to chemicals is an issue.

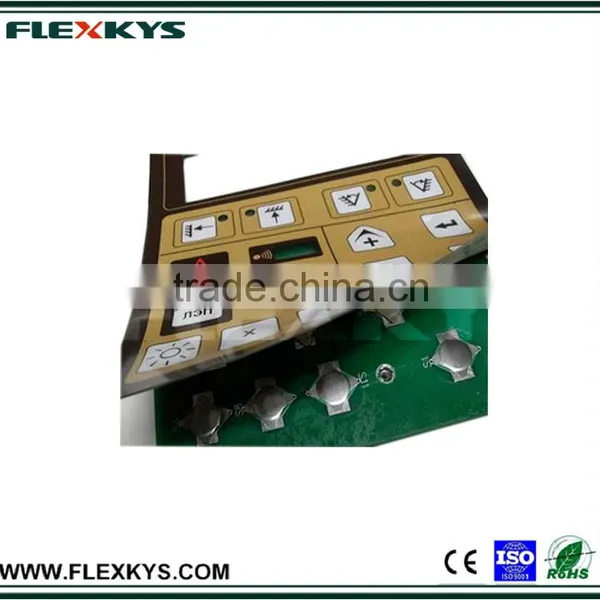

The PCB Membrane Switch construction utilizes a PCB (as described above) as the main structure/support substrate, with the membrane switch on the front of the PCB assembly, and the display (along with the other discrete components) on the back side of the PCB.
The variety of discrete components can include, but is not limited to LEDs, resistors, connectors (both SMT and though-hole), LCD and LED displays, sensors, and speakers. The addition of a daughter board can add even more design flexibility and can connect directly to the PCB membrane switch.
What are the Advantages of PCB Membrane Switches?
Although PCB Membrane Switches are generally more costly than Silver Flex Membrane Switches, they enjoy several advantages over Silver Flex switches:
- Lower electrical resistance/higher conductivity.
- Hard soldering components on a PCB is a more robust method to attach components vs. epoxy silver paste.
- Soldering many component types using automated pick-and-place equipment.
- Ideal for smaller designs where dense circuit patterns or trace routing limitations exist, by using plated thru-hole technology to utilize both sides of the PCB.
- Plating options such as gold, tin-lead, and nickel.
- Can be used in extreme environments, and high-reliability/high-vibration environments.
What are the PCB Membrane Switch Design Options & Considerations?
- Single-sided, double-sided, and multi-layer designs available
- Tight trace routing capabilities
- Plating options can be tin-lead, nickel, or gold
- Tactile and non-tactile with either metal or polye tactile domes
- Pillow or rim-embossed graphic overlays
- LEDs and other components can be soldered and are more robust
- Graphic overlays that can be digitally printed, screen printed, or a combination of both
- The graphic overlays can incorporate transparent and tinted display windows, as well as selective textures and UV hardcoat surface finishes
Our Service & Advantage
ISO9001:2008 Quality Assurance System
Over 10 years customized manufacturing experience.
Sample is free, you just need to bear the shipping cost.
Customized sourcing, purchasing & manufacturing service.
Help clients to upgrade their design & improve the quality of products.
Original Equipment Manufactruing (OEM) & Original Deisgn Manufacturing (ODM)are welcome.
PCB printed circuit board membrane switch PCB printed circuit board membrane switch
First put into a polybag per 50 pcs usually, seperated by cardboard, then paked into a 5-layer carton. According to clients' special requirements.
Delivery Detail:
10-15 days after getting payment.
Shipping: by air, by sea & expressage
Welcome to our Global Sources Electronic Components Show 2016
Name: Global Sources Electronic Components Show
Date: 11th-14th, April 2016
Place : Asia World-Expo, Hong Kong
Booth No.: 9G07
We will wait for you! PCB printed circuit board membrane switch PCB printed circuit board membrane switch
Welcome to Nanjing Momao(Flexkys) Electronic Technology Co., Ltd
Nanjing Momao (Flexkys)Electronic TechnologyCo., Ltd is a customer focused contract manufacturer with10years of experience in manufacturing qualified membrane switch products, including PCB Membrane Switch, Copper Flex Membrane Switch,Tactile and Non-tactile Membrane Switch, LED Integrated Membrane Switch , Capacitive Touch Switch,Metal Dome Membrane Swwitch, Poly Dome Membrane Switch,FPC Membrane Switch, Graphic Overlays &Panels&Labels, Silicone keypads&Keyboards and Rubber Keyboards&Keypads, Printed Circuits,etc.
With Nanjing Momao (Flexkys)Electronic Technology Co., Ltd as your collaborating partner we can offer development of prototypes customized production flow and volume production. The size of the contributes the benefits of a smaller companies flexibility, combined with the professionalism and competence of a bigger organization.
To a large extent we can offer customized solutions to our customers both concerning products and logistics.
Our most significant clients are represented within the following branches: electronic scales, safety equipment, household appliance, medical,automotive, and industrial control.
Certifications
PCB printed circuit board membrane switch PCB printed circuit board membrane switch
1. How to make an order?
Please tell us your material,artwork design,logic circuit principle chart,size,surface,usage etc. And better send us the design drawing or samples together with other detailed datas, then we’ll customize the membrane switch upon your requests.
2. Sample available?
Yes, but based on freight collect. Most of the items are customized for clients, so molding charge is needed.
3. How to guarantee the after sales service?
We will track the production situation of the goods during the whole process,we promise the goods will be shipped to you smoothly. If any problem happened, we will provide the best solution for you.
4. Shipping ways & Delivery Time?
Shipping by: UPS/ Fedex /DHL /TNT or other ways specified.
Delivery time: 10~15 days after payment received.
5. Payment terms:100% T/T in advance.
