Poly Dome LED Integrated Membrane Switch with Multi Circuits and Leads

Name: Poly Dome LED Integrated Membrane Switch with Multi Circuits and Leads
Brand: FLEXKYS
Availability: InStock

FOB Price

USD $0.1 - $5 / Piece

100 Pieces(Min.Order)

Supply Ability 500000 Piece / Pieces per Month
Port Shanghai

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Jiangsu, China	Brand Name	FLEXKYS
Model Number	Custom	Application	Telecommunication Equipment
Keypad Button Material	Other, PET or PC

Product Description

Poly Dome LED Integrated Membrane Switch with Multi Circuits and Leads

Pictures membrane switch membrane switch membrane switch membrane switch

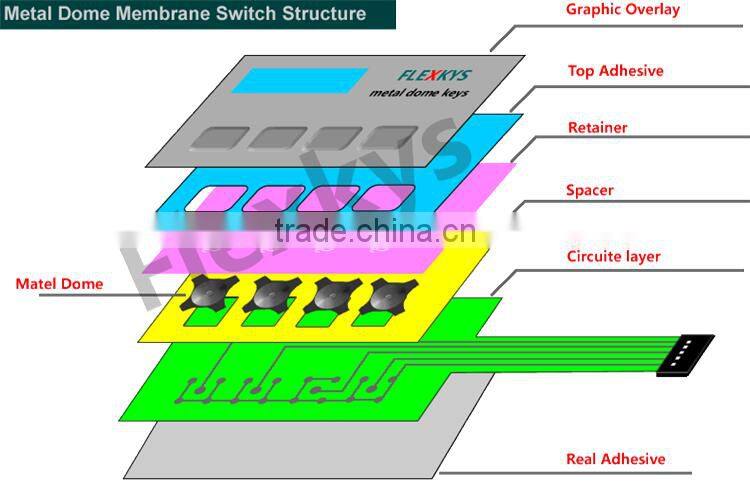

Material membrane switch membrane switch membrane switch membrane switch

Part	Ordinary Material
		Finish	Specification
Graphic Overlay	PC	Gloss	0.175/.25/.35/.5 mm thickness
	PC	Matt	0.175/.25/.35/.5 mm thickness
	PET	Fine Texture	0.15/.20 mm thickness
		Valet Texture	0.15/.20 mm thickness
		Gloss with Hard Coat	0.18 mm thickness
Top Adhesive	PET Double-sided adhesive		0.10/.22/.28 mm thickness
	Paper Double-sided Tape		0.10 mm thickness
	Transfer Tape		0.06/.12 mm thickness
Retainer	PET	Gloss	0.125 mm thickness
Spacer	PET Double-sided Tape		0.225/.275 mm thickness
Circuit Layer	PET	Gloss	0.1/.125 mm thickness
Rear Adhesive	Paper Double-sided Tape		0.10 mm thickness
	Transfer Tape		0.06/.12 mm thickness
Connector	Pin		Metal,Male/Female 2.54mm
Connector	House		Female,2.54mm
Conductive Layer	Silver Paste		Acheson ELECTRODA 820B
	Carbon Paste		Acheson ELECTRODA 423SS
	Insulation Ink		Acheson ELECTRODA 452SS

Structure membrane switch membrane switch membrane switch membrane switch

Electrical Performances membrane switch membrane switch membrane

Wire Resistance	0.5mm width,≤1Ω/cm	Rated Current	25-100mA,0-30V DC
Insulation Resistance	>100MΩ 250V DC	Working Voltage	<50V DC
Working Life	>500k times	Working Temperature	-30℃-70℃
Working Humidity	40℃,98%RH	Withstand Voltage	1500V DC
Feedback Time	10ms	Tail Folding	R>1,180
