Home > Products > Printing Machinery > Flexgraphic Printing Machine

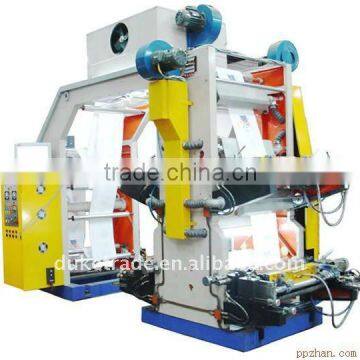

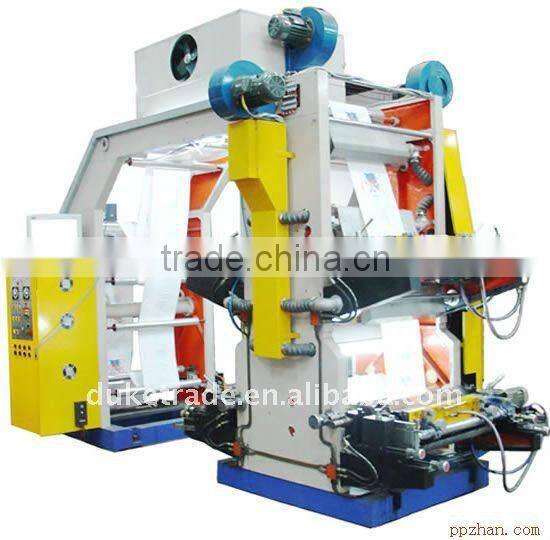

Flexgraphic Printing Machine
- Ningbo
- T/T Money Gram
You May Like
Product Details
| Condition | New | Plate Type | Other, PE PP PVC OPP film | |
| Place of Origin | Zhejiang, China | Brand Name | Duke | |
| Model Number | YT | Usage | Paper Printer | |
| Automatic Grade | Automatic | Gross Power | 65KW | |
| Dimensions(L*W*H) | 5.2m *3.4*3.9mm |
Product Description
Specifications
Printing many material film , bag , paper and woven bag . as you want to get , we can supply .flexo printing machine
Double-duct drying, closed ink circulation and pattern inspection systems are adopted. It features high speed and small error.
Work with encolosed chambered doctor blade, high speed printing and machine more stable.
The Stack type Flexographic Printing Machine is capable of printing on different surfaces such as HM, HDPE, LD, LLDPE, B.O.P.P, Polypropylene, Paper, Aluminium Foil etc.
Printing width | 500mm | 600mm | 800mm | 1000mm | 1200mm | 1400mm | 1600mm | 1800mm | ||
Printing material | PVC:35-70μ m,OPP:20-70μ m,BOPP:18-60μ m,PE:35-100μ m,Paper:30-150g/m2 CPP:20-60μ m,Plating film:30-80μ m,Aluminum:25-80μ m,PET:15-60μ m,Cellophane:20-120 g/m2,Wrapping paper :17-80 g/m2 | |||||||||
Printing color | at your own choice / 6 special color | |||||||||
Printing length | 7.5"-40" (190mm-1016mm)/7.5"-50"(190mm-1270mm) | |||||||||
Printing possibility | PC:6+0;5+1;4+2;3+3 | |||||||||
Printing plate lifting system | Pneumatic press control | |||||||||
Mechanical speed | 150m/min | |||||||||
Printing speed | 120m/min | |||||||||
Anilox cylinder | Metal: 100DK-170DK(Germany)/Ceramic:250LPI-800LPI(Japan) | |||||||||
Register precision | Longitude:±0.15mm Transverse: ±0.15mm | |||||||||
Rewinder/Unwinder DIA | ø 600mm/ ø 800mm | |||||||||
Master motor | 5.5KW | 7.5KW | 11KW | 15 KW | ||||||
Unwinder motor | 1.1 KW | 1.5 KW | 2.2 KW | 3.0 KW | ||||||
Rewinder motor | 1.5 KW | 2.2 KW | 3.0 KW | 3.7 KW | ||||||
Electrical header | 18KW | 22 KW | 30 KW | 38 KW | ||||||
Blower of header | 0.75 KW×2 | 1.1 KW×2 | 1.5 KW×2 | 2.2 KW×2 | ||||||
Blower of nature wind | 0.75 KW | 1.1 KW | 1.5 KW | 2.2 KW | ||||||
Inking motor | 370W | 750W | ||||||||
Master frequency converter | Panasonic/ Toshib transducer Japan | |||||||||
Dimension (L×W×H) | 4.8m | 4.8m | 4.9m | 4.9m | 5.0m | 5.0m | 5.2m | 5.2m | ||
Weight | 7550Kg | 7850Kg | 8300Kg | 8700Kg | 9300Kg | 9800 Kg | 10200Kg | 10800Kg | ||
Master power | 28KW | 30 KW | 36KW | 36KW | 50KW | 50KW | 65KW | 65KW | ||
