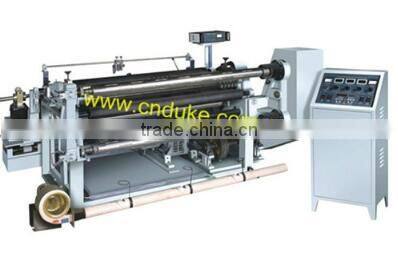

DK-DE Horizontal Automatic PE Film Slitting Machine
Features:
1) Be able to slit BOPP, laminates, PET/LLDPE, aluminum foils
2) Slitting width is: 800 - 1, 300mm
Performance and Characteristics:
1. Main Motor: electromagnetic speed regulation motor
2. Separated General Control Cabinet, more flexible and even easier operation.
3. Automatic EPC for unwinding, photocell is suitable for tracking the edge and/or the line of material.
4. Equipped with air shaft for unwinding material loading, magnetic powder brake for unwinding
tension control
5. Air shaft for rewinding, Magnetic powder clutch for rewinding tension control
6. Equipped with air trim discharge conveying system.
7. Automatic meter counting device.
8. Pressure roller for rewinding to make rewinding roll more uniform.
9. Disk knife available for option.

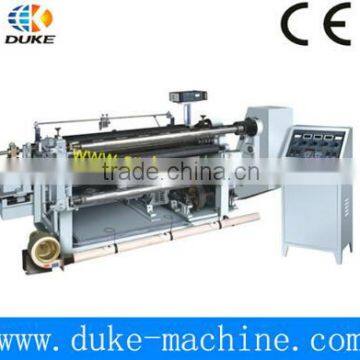

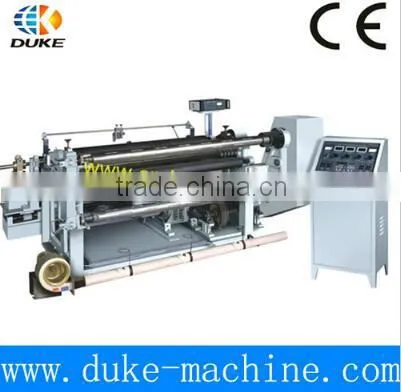

Machine Show :
Main Technical Variables:
Type |
DK-DE700 |
DK-DE-1000 |
DK-DE-1300 |
Max.Width of Mother |
600mm |
100mm |
1200mm |
Max.diameter of Mother Roll |
Φ800mm |
Φ800mm |
Φ800mm |
Width of Final Roll |
30-600mm |
30-1000mm |
30-1300mm |
Slitting and Rewinding Speed |
5-190m/min |
5-190m/min |
5-190m/min |
Motor Power |
2.7kw |
3kw |
3.5kw |
Weight of Machine |
1800kg |
2000kg |
2200kg |
Overall Dimension |
2100×1800 ×1200mm |
2100×2000 ×1200mm |
2200×2000 ×1200mm |
FAQ:
1.Q:Are you a factory or trade company?
R:We are a factory & Trade company.
2.Q:Where is your company located?How can I visit there?
R:Our company is located in Ruian City,Wenzhou area,Zhejiang province,China.
About 1 hour by plane from Shanghai to Wenzhou,then 1 hour taxi to our place(5 hours by fast
train to Ruian station)
3.Q:what is the raw material does the machine ?
R:the material is A4 Paper Sheet
4.Q:who can answer my urgent questions about the machine?
R:leave a message when I am not online,will reply you within 24hours.
5.Q:how does your factory do regarding quality control?
R:our company policy is “quality first,customer first”.we have a QC manager whom check
the machine making from beginning to the end.
if you have any question ,pls feel free to contact me !
I am waiting for at any time
We focus on : high quality machine (50 years working without problems)
Low price --------italy quality level, china commodity price
After sale service-------24 hours answer to clear your confusion
