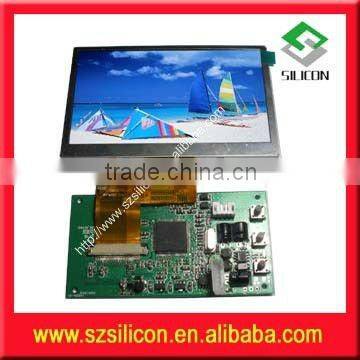

4.3inch TFT Color LCD Screen Display Module 480x272 Pixels

Shenzhen Silicon Electronics Co., Ltd.
4.3inch TFT Color LCD Screen Display Module 480x272 Pixels thumbnail-1
4.3inch TFT Color LCD Screen Display Module 480x272 Pixels photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Silicon
Model Number:
Silicon-P-004
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
FOB Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name Silicon
Model Number Silicon-P-004
Type TFT

Specifications

1. 4.3'' 480x272 TFT LCD Module
2. Use for car monitor or video doorphone
3. Input signal: CVBS
4. Warranty: within 12moths

4.3inch TFT Color LCD Screen Display Module 480x272 Pixels4.3inch TFT Color LCD Screen Display Module 480x272 Pixels

1. Application:

     Building interphone, car reversing system

   Industrial controlling system, medical equipment

     Audiovisual equipment Car display, Portable DVD Player

     Household Video door bell, Videophone, Digital Camera



2. Feature:





 Product  Number

 Silicon-P-004

 Backlight

 LED

 Resolution

 480(RGB)×272

 View  Angle ( up/down/left/right )

     50/55/60/60

 Brightness

  > 350Cd/m2

 Input Signal

   CVBS

 System  Format

  PAL/NTSC(Auto switch)

 Supply  Voltage

  9V-15V

 Rated  Power

 1.2w

 Adjust  Model

 Menu adjust

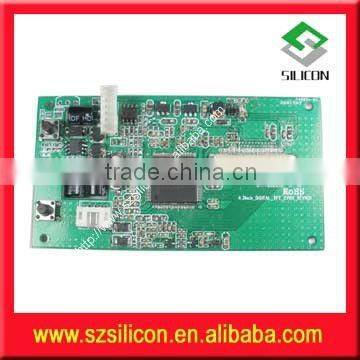

 PCB  Structural  Dimension(mm)

90(W)×48(H)×6.8(D)

 Screen  Size(mm)

 105.5(W)×67.2(H)×2.9(D)

 Operating  Temperature

   -20~70°C

 Relative  Humidity

  5~95% RH

 Storage  Temperature

 -30~80°C

 Packing

bubble bag and standard export carton





3. Advantage :
    Unique design,Free for customer ordering starting LOGO, accepts order the  CABLE lines,OEM/ODM based on the customer demands



SIZEA/D boardPanel typeSignal InputOsdLCD panel FPC No.BacklightResolutionBrightnessOperating
Temperature(°C)
3.5"SILICON-P-003digital2way CVBSyes54PINLED320*240300-20~+70 °C
SILICON-P-003-2digital2way CVBSyes54pin/60pinLED320*240300-20~+70 °C
SILICON-P-009digital2way CVBSyes54PINLED320*240300-20~+70 °C
Silicon-P-016digitalCVBSyes54PINLED320*242300-40~+85 °C
Silicon-P-31N1-3.5digital2way CVBSyes54PINLED320*243300-20~+70 °C
4.0"SiLICON-P-005digitalCVBSyes40PINLED320*240300-20~+70 °C
SiLICON-P-005-2digitalCVBSno40PINLED320*240300-40~+85 °C
SiLICON-P-005-3digitalCVBSyes54PINLED320*240300-20~+70 °C
4.3"SiLICON-P-004digital2 way CVBSyes40PINLED480*272300/500-20~+70 °C
SiLICON-P-010digital2 way CVBSyes40PINLED480*272300/500-20~+70 °C
SiLICON-P-010-2digitalCVBSyes40PINLED480*272300/500-40~+85 °C
5.7"SILICON-P-017digitalCVBSyesAA057VG02LED650*480300-40~+85 °C
6.2"SILICON-P-018digitalVGA+2way CVBSyes60PINLED800*480700-40~+85 °C
6.5"SILICON-P-019digitalVGA+2way CVBSyes50PINLED800*480700-40~+85 °C
7.0"SiLICON-P-002analogCVBSyes26PINLED480*234400-20~+70 °C
SiLICON-P-006analogCVBSyes26PINLED480*234400-20~+70 °C
SiLICON-P-006-2analog2 way CVBSyes26PINLED480*234400-20~+70 °C
SiLICON-P-008digitalCVBSyes50PIN/60pinLED800*480400-40~+85 °C
SiLICON-P-008-2digital2 way CVBSyes50PINLED800*480400-20~+70 °C
SILICON-P-020analogVGA+2way CVBSyes26PINLED480*234400-40~+85 °C
10.1"SiLICON-P-007digitalCVBSyesdobule 30PINLED800*480250
