Specifications
1. 10.1inch TFT-LCD(digital) Driver Board2. Use for: Building interphone
3. Input signal: CVBS
4. datasheet: yes

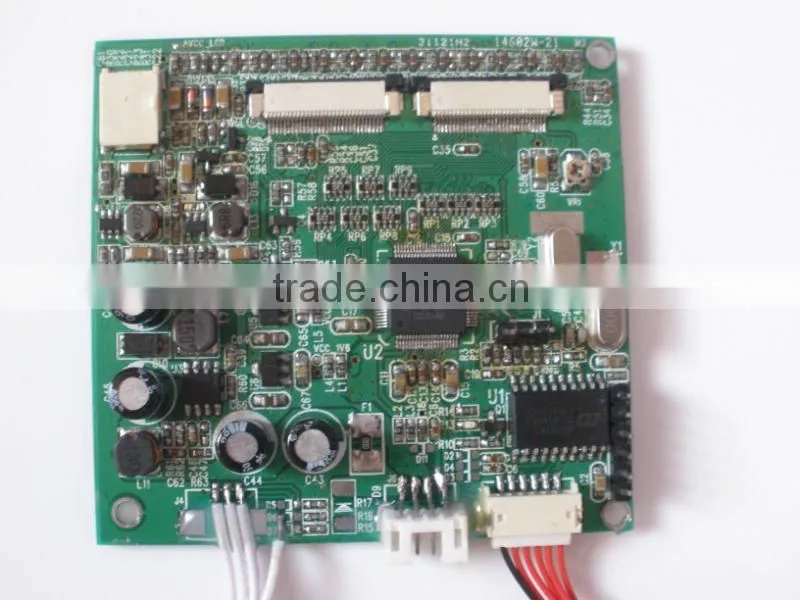

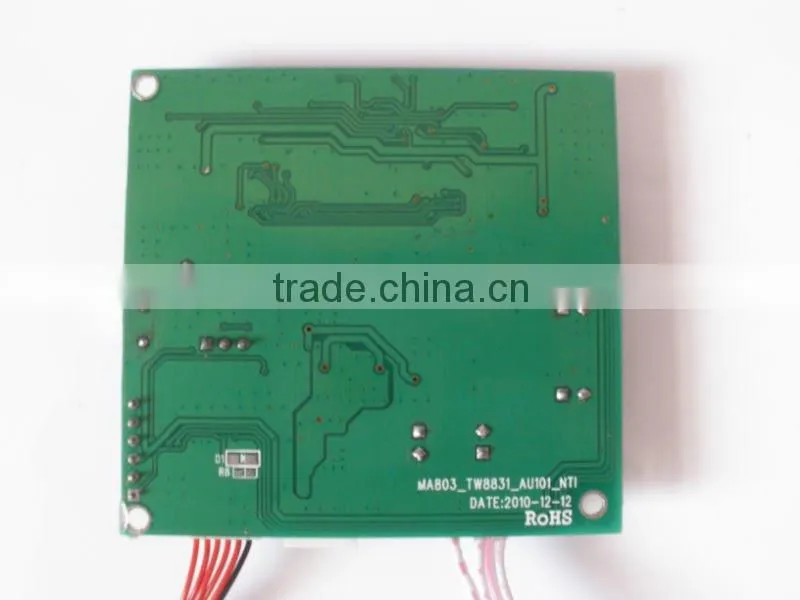

1) Product Name:10.1inch TFT-LCD(digital) Driver Board
2) Product number: Silicon-P-007
3) Backlight: LED
4) Resolution:800x(RGB)×480
5) View Angle(up/down/left/right): 100/130
6) Brightness:>300Cd/m2
7) Input signal: CVBS
8) System format: PAL/NTSC(Auto switch)
9) Power Supply Input: DC 9V-15V
10) Rated power: 2.5W
11) Adjust model: Menu adjust
12) PCB Structural dimension(mm):69.8(W)×66(H)×7(D)
13) Overall Dimension of LCD(mm):235(W)×145.9(H)×5.4(D)
14) Screen size(mm): 219.6 (H)* 131.76(V)
15) Operating Temperature: -30~+85 °C
16) Relative Humidity:5~95% RH
17) Storage Temperature: -40~+85°C
18) Customize: Free for customer ordering starting LOGO, accepts order the CABLE lines
19) Packing: 60pcs/Box
