Selling 3.5" Tft Lcd Control Panel for Color Monitor Mirror

Specifications

1)Backlight: LED
2)Warranty: one year
3):Rated power:1.2w
4)Signal input: 2 way CVBS
5)Specialized Design + high quality







Model : Silicon-P-31N1-3.5



1.Application:



Car monitor                  Building interphone



car reversing system   Industrial controlling system



medical equipment      Audiovisual equipment



Portable DVD Player    Household Video door bell



Video doorphone          Digital Camera













2. Feature:

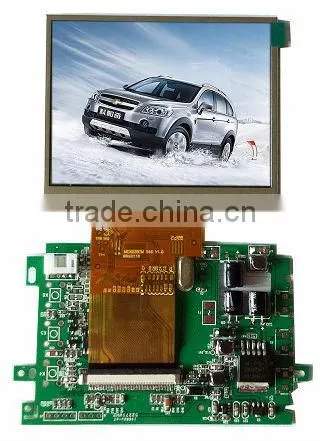

Product name:	3.5"Digital TFT-LCD control panel
Product number:	Silicon-P-31N1-3.5
Display	3.5"TFT-LCD (54PIN 4:3)
Backlight:	LED
Resolution:	320(RGB)*240
View Angle(up/down/left/right):	50/55/60/60
Brightness:	> 350Cd/m2
Signal input:	2 way CVBS
System format:	PAL/NTSC(Auto switch)
Adjust model:	Menu adjust
Power Input:	DC 8-30V, Instant reach 40V
Rated power:	1.2W
OSD Language	Chinese/English/French/Germany/Korean…(customizable)
Specially used	Video doorphone,Building Interphone,monitoring
Display Dimension of LCD(mm):	70.08(H)* 52.56(V)
Overall Dimension of LCD(mm):	76.9(W)* 63.9(H)*3.15(D)

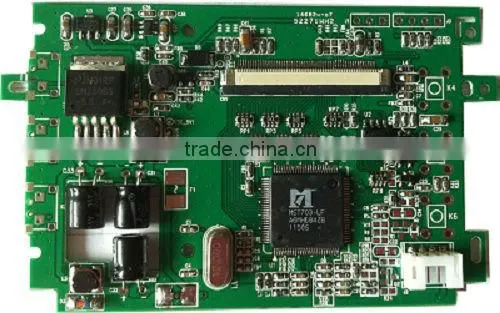

PCB Structural dimension(mm):	95.0(W)*58(H)*6.8(D)
Operating Temperature:	-40~+85 °C
Relative Humidity:	5~95% RH
Storage Temperature:	-65~+150°C
Packing:	3. Advantage :     Unique design,Free for customer ordering starting LOGO, accepts order the                       CABLE lines,OEM/ODM based on the customer demands



3. Advantage :



Unique design



Free for customer ordering starting LOGO, accepts order the CABLE lines



OEM/ODM based on the customer demands



12month warranty
