Digital 10.1 Inch Lcd Panel With ad Board, Driver Board

Digital 10.1 Inch Lcd Panel With ad Board, Driver Board thumbnail-1
Digital 10.1 Inch Lcd Panel With ad Board, Driver Board photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Shenzhen Silicon
Model Number:
Silicon-P-007
Type:
Other, TFT, Digital
Contact Supplier Request Quote Chat Now
Shenzhen Silicon Electronics Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenshen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Shenzhen Silicon
Model Number Silicon-P-007
Type Other, TFT, Digital

Specifications

1)Backlight: LED
2)Warranty: one year
3):Rated power:3w
4)Signal input: 1 way CVBS
5)Specialized Design + high quality

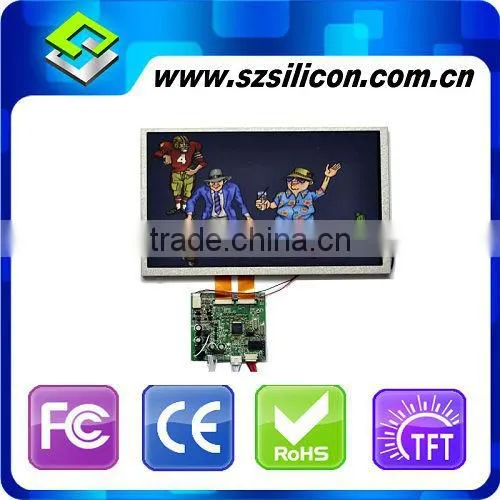

digital 10.1 inch lcd panel with ad board, driver board







Descriptions



Use for:



Car monitor                  Building interphone



car reversing system   Industrial controlling system



medical equipment      Audio visual equipment



Portable DVD Player    Household Video door bell



Video doorphone          Digital Camera



Advantage:



Unique design



Free for customer ordering starting LOGO, accepts order the CABLE lines



OEM/ODM based on the customer demands





Features



1) Display :10.1"TFT-LCD (double 30pin 16:9)

2) Product number: Silicon-P-007

3) Backlight: LED

4) Resolution:1024x(RGB)×600

5) View Angle(up/down/left/right): 60/60/70/70

 6) Brightness:> 250Cd/m2

7) Signal input: 1 way CVBS

8) System format: PAL/NTSC(Auto switch)

 9) Adjust model:Menu/knob adjust(optinnal)

10) Power  Input: DC 6V-24V

11) Rated power: 3W

12) Display Dimension of LCD(mm):222.72(H)X125.28(V)

13) Overall Dimension of LCD(mm): 235(W)x 143(H)x4.5(D)

14) PCB Structural dimension(mm):69.8(W)×66(H)×7(D)

15) Operating Temperature: -40~+85 °C

16) Relative Humidity:5~95% RH

17) Storage Temperature: -65~+150°C

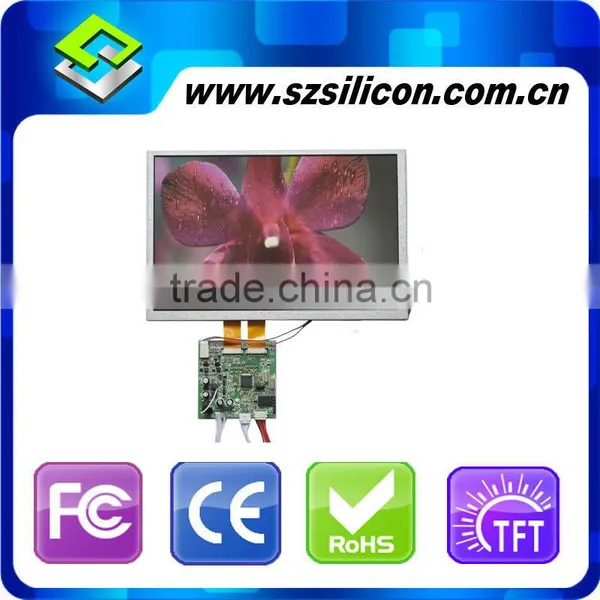

 digital 10.1 inch lcd panel with ad board, driver boarddigital 10.1 inch lcd panel with ad board, driver board





Related Products:

SIZE IC A/D board Panel type Signal Input Osd LCD panel FPC No. Backlight Resolution
3.5" BIT1612 SILICON-P-003 digital 2way CVBS yes 54PIN LED 320*240
MST703 SILICON-P-009 digital 2way CVBS yes 54PIN LED 320*240
TW8831 Silicon-P-016 digital CVBS yes 54PIN LED 320*242
MST703 Silicon-P-31N1-3.5 digital 2way CVBS yes 54PIN LED 320*243
4.0" BIT1612 SiLICON-P-005 digital CVBS yes 40PIN LED 320*240
TW9900 SiLICON-P-005-2 digital CVBS no 40PIN LED 320*240
MST703 SiLICON-P-005-3 digital CVBS yes 54PIN LED 320*240
4.3" MST703 SiLICON-P-004 digital 2 way CVBS yes 40PIN LED 480*272
MST703 SiLICON-P-012 digital 2 way CVBS yes 40PIN LED 480*272
TW8831 SiLICON-P-010 digital CVBS yes 40PIN LED 480*272
5.7" TW8831 SILICON-P-017 digital CVBS yes AA057VG02 LED 650*480
6.2" RTD2660 SILICON-P-018 digital VGA+2way CVBS yes 60PIN LED 800*480
6.5" RTD2661 SILICON-P-019 digital VGA+2way CVBS yes 50PIN LED 800*480
7.0" BIT1625 SiLICON-P-002 analog CVBS yes 26PIN LED 480*234
MST702 SiLICON-P-006 analog CVBS yes 26PIN LED 480*234
MST702 SiLICON-P-006-2 analog 2 way CVBS yes 26PIN LED 480*234
MST702 SiLICON-P-006-3 analog CVBS yes 26PIN LED 480*234
MST702 SiLICON-P-006-4 analog 2 way CVBS yes 26PIN,12V LED 480*234
MST702 SiLICON-P-006-5 analog 2 way CVBS yes 26PIN,24V LED 480*234
TW8831 SiLICON-P-008 digital CVBS yes 50PIN/60pin LED 800*480
MST703 SiLICON-P-008-2 digital 2 way CVBS yes 50PIN LED 800*480
TW8833 SILICON-P-020 analog VGA+2way CVBS yes 26PIN LED 480*234
10.1" TW8831 SiLICON-P-007 digital CVBS yes double 30PIN LED 800*480













  Certification:





digital 10.1 inch lcd panel with ad board, driver board



Guarantee :

        For the warranty, we always give one year warranty when we sell the products in Chinese Mainland. However, we must apply other methods to handle the after-sale service for the oversea orders since the freight cost of international consignments can be very high. Therefore, we will provide any necessary free accessories in proportion to the foreign order quantity (1 percent) and repair manual as well as technical support.  Most problems which occur during use can be repaired quite easily. So we recommend customers to resolve them locally. If there are some products which really can't be repaired, after we confirm the precise quantity of such product, we will send the agreed quantity of new products free of charge with the next delivery to compensate for the loss.



support :

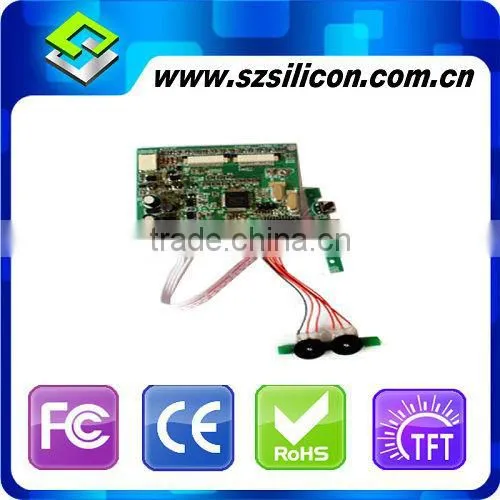

digital 10.1 inch lcd panel with ad board, driver board



We will sincerely provide you with quality service!
