Specifications
1)Warranty: 1 year2)Size: 3.5"
3)Rated Power: 1.2w
4)Backlight:LED
5)Resolution: 320(RGB)240(Digital)
1.Applicaitons:
Car Monitor Car reversing system
The Building interphone Doorbell visualization
Visual telephone Monitoring equipment
On-vehicle Display Portable DVD Player
Bank System POS Machine and other vices
| 2. Feature: | |

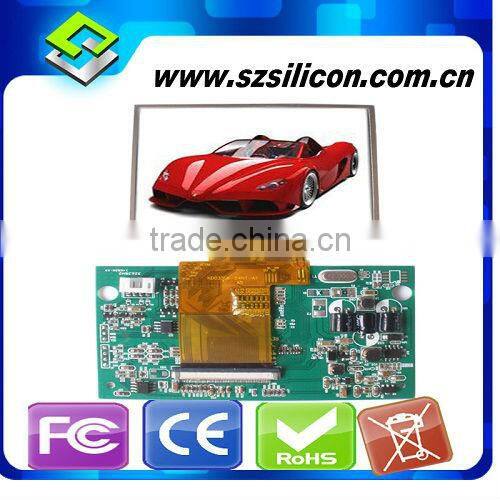

| Product name: | 3.5"Digital TFT-LCD Panel |
| Product number: | Silicon-P-009 |

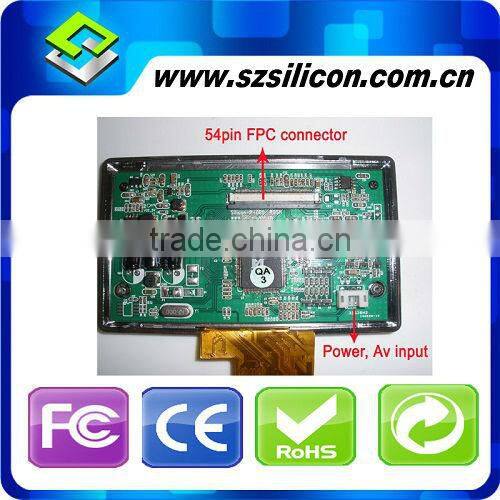

| Display | 3.5"TFT-LCD (54PIN 4:3) |
| Backlight: | LED |
| Resolution: | 320(RGB)*240 |
| View Angle(up/down/left/right): | 50/55/60/60 |
| Brightness: | > 300Cd/m2 |
| Signal input: | 2 Channel |
| System format: | PAL/NTSC(Auto switch) |
| Adjust model: | Menu adjust |
| Power Input: | DC 5V-24V |
| Rated power: | 1.2W |
| OSD Language | Chinese/English/French/Germany/Korean…(customizable) |
| Display Dimension of LCD(mm): | 70.08(H)* 52.56(V) |
| Overall Dimension of LCD(mm): | 76.9(W)* 63.9(H)*3.15(D) |
| PCB Structural dimension(mm): | 88.0(W)*58(H)*6.8(D) |
| Operating Temperature: | -20~+70 °C |
| Relative Humidity: | 5~95% RH |
| Storage Temperature: | -40~+125°C |
| Packing: | bubble bag and standard export carton |
3 Advantages:
Unique design
Free for customer ordering starting LOGO,accepts order the CABLE lines
OEM/ODM based on the customer demands
4 Certification:
Guarantee :
For the warranty, we always give one year warranty when we sell the products in Chinese Mainland. However, we must apply other methods to handle the after-sale service for the oversea orders since the freight cost of international consignments can be very high. Therefore, we will provide any necessary free accessories in proportion to the foreign order quantity (1 percent) and repair manual as well as technical support. Most problems which occur during use can be repaired quite easily. So we recommend customers to resolve them locally. If there are some products which really can't be repaired, after we confirm the precise quantity of such product, we will send the agreed quantity of new products free of charge with the next delivery to compensate for the loss.
support :
We will sincerely provide you with quality service!
