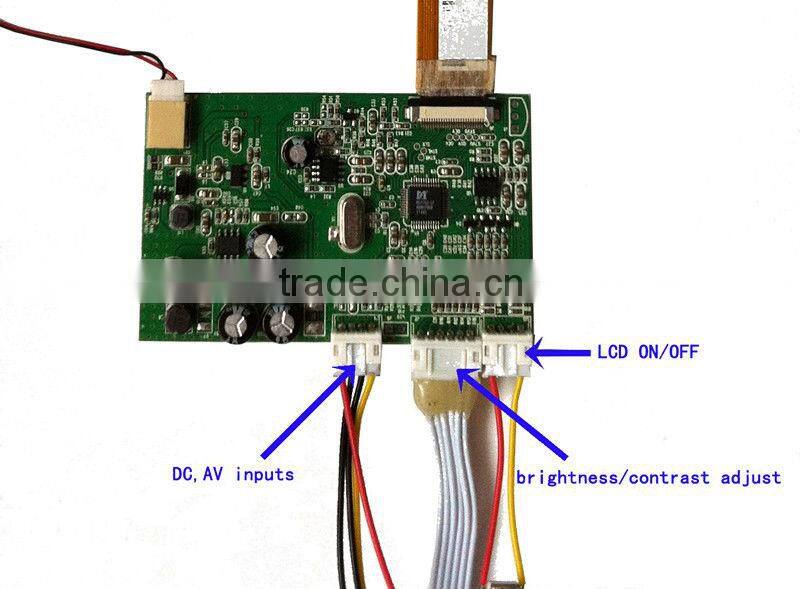

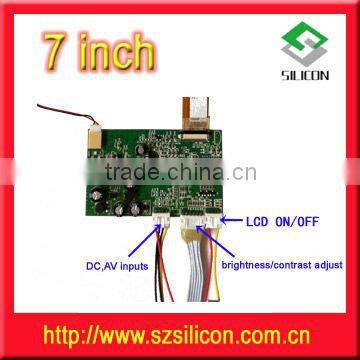

7 Inch Lcd Tft Display Control Board

Specifications

1)Backlight: LED
2)Warranty: one year
3):Rated power:2w
4)Signal input: 1way analog CVBS
5)Specialized Design + high quality





7 inch TFT LCD  display control board





Model : Silicon-P-006



1.Application:



Car monitor                  Building interphone



car reversing system   Industrial controlling system



medical equipment      Audiovisual equipment



Portable DVD Player    Household Video door bell



Video doorphone          Digital Camera





2. Feature:
Product name:	7"Analog TFT-LCD control board
Product number:	Silicon-P-006
Display	7"TFT-LCD (26PIN 16:9)
Backlight:	LED
Resolution:	480(RGB)*234
View Angle(up/down/left/right):	60/60/70/70
Brightness:	> 400Cd/m2
Signal input:	1 way analog CVBS
System format:	PAL/NTSC(Auto switch)
Adjust model:	Menu/knob adjust(optinnal)
Power Input:	DC 9V-18V
Rated power:	2W
OSD Language	Chinese/English/French/Germany/Korean…(customizable)
Display Dimension of LCD(mm):	154.08(H)*86.58(V)
Overall Dimension of LCD(mm):	162.5(W)*95.5(H)*5.5(D)
PCB Structural dimension(mm):	82(W)*50(H)*7(D)
Operating Temperature:	-20~+70 °C
Relative Humidity:	5~95% RH
Storage Temperature:	-30~+80°C
Packing:	bubble bag and standard export carton







3. Advantage :



Unique design



Free for customer ordering starting LOGO, accepts order the CABLE lines



OEM/ODM based on the customer demands





4. Related products:

SIZE	A/D board	type	Signal Input	Osd	LCD FPC No.	Backlight	Resolution
3.5"	SILICON-P-003	digital	2way CVBS	yes	54PIN	LED	320*240
	SILICON-P-003-2	digital	2way CVBS	yes	54pin/60pin	LED	320*240
	SILICON-P-009	digital	2way CVBS	yes	54PIN	LED	320*240
	Silicon-P-016	digital	CVBS	yes	54PIN	LED	320*242
	Silicon-P-31N1-3.5	digital	2way CVBS	yes	54PIN	LED	320*243
4.0"	SiLICON-P-005	digital	CVBS	yes	40PIN	LED	320*240
	SiLICON-P-005-2	digital	CVBS	no	40PIN	LED	320*240
	SiLICON-P-005-3	digital	CVBS	yes	54PIN	LED	320*240
4.3"	SiLICON-P-004	digital	2 way CVBS	yes	40PIN	LED	480*272
	SiLICON-P-010	digital	2 way CVBS	yes	40PIN	LED	480*272
	SiLICON-P-010-2	digital	CVBS	yes	40PIN	LED	480*272
5.7"	SILICON-P-017	digital	CVBS	yes	AA057VG02	LED	650*480
6.2"	SILICON-P-018	digital	VGA+2way CVBS	yes	60PIN	LED	800*480
6.5"	SILICON-P-019	digital	VGA+2way CVBS	yes	50PIN	LED	800*480
7.0"	SiLICON-P-002	analog	CVBS	yes	26PIN	LED	480*234
	SiLICON-P-006	analog	CVBS	yes	26PIN	LED	480*234
	SiLICON-P-006-2	analog	2 way CVBS	yes	26PIN	LED	480*234
	SiLICON-P-006-3	analog	CVBS	yes	26PIN	LED	480*234
	SiLICON-P-008	digital	CVBS	yes	50PIN/60pin	LED	800*480
	SiLICON-P-008-2	digital	2 way CVBS	yes	50PIN	LED	800*480
	SILICON-P-020	analog	VGA+2way CVBS	yes	26PIN	LED	480*234
10.1"	SiLICON-P-007	digital	CVBS	yes	double 30PIN	LED	800*480









 12month warranty
