Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Silicon
Model Number:
Silicon-P-010
Place of Origin:
Guangdong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
FOB Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
4.3inch TFT LCD Driver BoardNegotiableMOQ: 1 Piece -
2013 LATEST DESIGN Tft Lcd Accurate Control BoardNegotiableMOQ: 1 Piece
-
HOT SALE Video Door Phone Board 4.3" TFT-LCD Driver BoardNegotiableMOQ: 2 Pieces
-
4.3inch Tft Lcd Screendriver Board Resolution:480*(RGB)*272NegotiableMOQ: 1 Piece
-
Your Best Choice Car Monitor Control Board for 7" Lcd ModuleNegotiableMOQ: 1 Piece
Brand Name
Silicon
Model Number
Silicon-P-010
Place of Origin
Guangdong, China
Specifications
1. 4.3 inch TFT-LCD Driver Board2. Use for display equipment
3. Input signal: CVBS
4. Datasheet: yes
1. Features

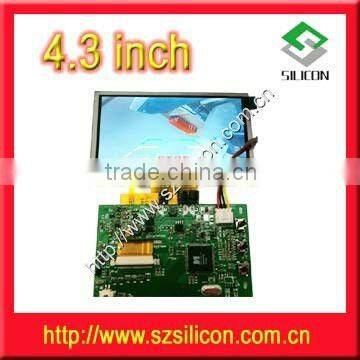

- it is composed of a LCD and a driver board
- support OSD menu
- with AV/CVBS and VGA signal input
- identify PAL & NTSC system format
- LED backlight
Specifications
1.4.3" LCD display driver board
2.resolution: 480x272
3. Input signal: 2way AV
4.Rated power: 1.2W
5.power:DC 6V-24V

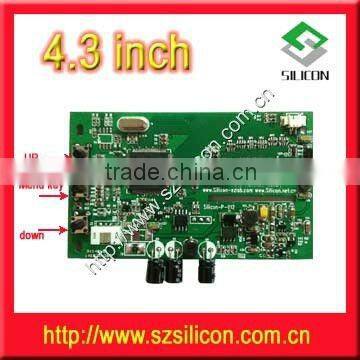

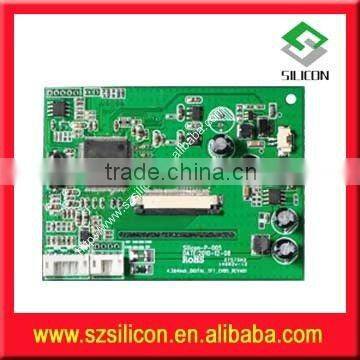

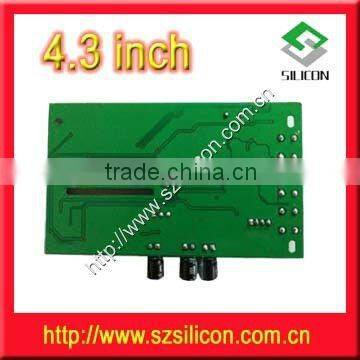

4.3" LCD display driver board with 2way AV inputs
1.Application:
Car monitor, Building interphone, car reversing system
Industrial controlling system, medical equipment
Audiovisual equipment Car display, Portable DVD Player
Household Video door bell, Video doorphone, Digital Camera
| 2. Feature: | |
| Product name: | 4.3" LCD display driver board with 2way AV inputs |
| Product number: | Silicon-P-010 |
| Display | 4.3"TFT-LCD (40PIN 16:9) |
| Backlight: | LED |
| Resolution: | 480(RGB)*272 |
| View Angle(up/down/left/right): | 50/70/70/70 |
| Brightness: | > 300Cd/m2 |
| Signal input: | 2 way CVBS |
| System format: | PAL/NTSC(Auto switch) |
| Adjust model: | Menu adjust |
| Power Input: | DC 6V-24V |
| Rated power: | 1.2W |
| OSD Language | Chinese/English/French/Germany/Korean…(customizable) |
| Display Dimension of LCD(mm): | 95.04(H)*53.86(V) |
| Overall Dimension of LCD(mm): | 105.5(W)*67.2(H)*2.85(D) |
| PCB Structural dimension(mm): | 90(W)*48(H)*6.8(D) |
| Operating Temperature: | -20~+70 °C |
| Relative Humidity: | 5~95% RH |
| Storage Temperature: | -30~+80°C |
| Packing: | bubble bag and standard export carton |
3. Advantage :
Unique design,Free for customer ordering starting LOGO, accepts order the
CABLE lines,OEM/ODM based on the customer demands
4. we have many products, some not showing on the internet. So, pls contact us,We'll recommend ur need iterm.
| SIZE | A/D board | type | Signal Input | Osd | LCD FPC No. | Backlight | Resolution | Brightness |
| 3.5" | SILICON-P-003 | digital | 2way CVBS | yes | 54PIN | LED | 320*240 | 300 |
| SILICON-P-003-2 | digital | 2way CVBS | yes | 54pin/60pin | LED | 320*240 | 300 | |
| SILICON-P-009 | digital | 2way CVBS | yes | 54PIN | LED | 320*240 | 300 | |
| Silicon-P-016 | digital | CVBS | yes | 54PIN | LED | 320*242 | 300 | |
| Silicon-P-31N1-3.5 | digital | 2way CVBS | yes | 54PIN | LED | 320*243 | 300 | |
| 4.0" | SiLICON-P-005 | digital | CVBS | yes | 40PIN | LED | 320*240 | 300 |
| SiLICON-P-005-2 | digital | CVBS | no | 40PIN | LED | 320*240 | 300 | |
| SiLICON-P-005-3 | digital | CVBS | yes | 54PIN | LED | 320*240 | 300 | |
| 4.3" | SiLICON-P-004 | digital | 2 way CVBS | yes | 40PIN | LED | 480*272 | 300/500 |
| SiLICON-P-010 | digital | 2 way CVBS | yes | 40PIN | LED | 480*272 | 300/500 | |
| SiLICON-P-010-2 | digital | CVBS | yes | 40PIN | LED | 480*272 | 300/500 | |
| 5.7" | SILICON-P-017 | digital | CVBS | yes | AA057VG02 | LED | 650*480 | 300 |
| 6.2" | SILICON-P-018 | digital | VGA+2way CVBS | yes | 60PIN | LED | 800*480 | 700 |
| 6.5" | SILICON-P-019 | digital | VGA+2way CVBS | yes | 50PIN | LED | 800*480 | 700 |
