Specifications
Size:7inch screenResolution:800*480
Adjust model:Remote control,OSD menu
2 way video inputs
PAL/NTSC(Auto switch)

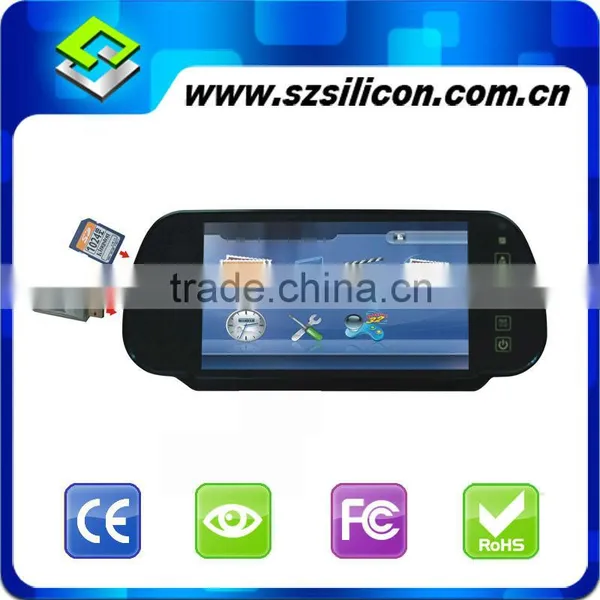

7 inch LCD Rearview Car Monitor
Specifications:
high quality 7inch tft lcd car monitor ,800*480resolution
LCD Monitor is one popular device, it has high product quality,high service petitive price.
Features:
2 way AV inputs,2 audio outputs(dual-channel)
support SD and USB
Feature: |
Parameter: |
|
display |
Screen size |
7 inch |
Resolution |
800 (RGB) x480 |
|
|
Pixel arrangement Pixel array |
R.G.B. Vertical Stripe |
|
Screen type |
TN with Normally White |
|
View Angle(up/down/left/right) |
60/60/70/70(degree)
|
|
Aspect Ratio |
16:9
|
|
Average Brightness |
>400cd/m2 |
|
contrast Ratio |
400
|
|
Led backlight |
operating power |
100mA |
|
operating voltage
|
Typ. 10.5V
|
|
Typical power consumption synchronizing signal) |
1050mW
|
|
Signal input |
System format
|
PAL / NTSC(Auto)
|
|
Signal amplitude(0.714Vp-p video signal, 0.286Vp-p synchronizing signal) 2 way video inputs |
0.7~1.4 Vp-p |
|
Power supply |
Operating voltage |
8~24V |
Operating current |
135mA @ 12V |
|
Typical power consumption |
1620 mW |
|
Start-up time |
Response Time |
<=1.0s
|
Temperature and humidity range |
Operating Temperature |
-20°C~70°C(Humidity<80%)
|
Storage Temperature |
-30°C~80°C(Humidity<80%)
|
|
Structural parameters |
TFT (W x H x D) (cm)
|
28.5×17×6.8 |
Visible Area |
25×10.5 × 2.2
|
|
Dimensions |
25(w)*10.5(h)*2.2(d) |
|
Weight |
660g
|
|
car monitors:
Demo picture to show how to install it:
Guarantee :
For the warranty, we always give one year warranty when we sell the products in Chinese Mainland. However, we must apply other methods to handle the after-sale service for the oversea orders since the freight cost of international consignments can be very high. Therefore, we will provide any necessary free accessories in proportion to the foreign order quantity (1 percent) and repair manual as well as technical support. Most problems which occur during use can be repaired quite easily. So we recommend customers to resolve them locally. If there are some products which really can't be repaired, after we confirm the precise quantity of such product, we will send the agreed quantity of new products free of charge with the next delivery to compensate for the loss.
We will sincerely provide you with quality service!
