7 "car Monitors Rear View Mirror Lcd Car Monitor Screen

Name: 7 "car Monitors Rear View Mirror Lcd Car Monitor Screen
Brand: silicon
SKU: 134340517
Availability: InStock

Shenzhen Silicon Electronics Co., Ltd.

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Products Status:

Stock

Application:

Other, DVD Player,MP3 / MP4 Players,Radio Tuner

Screen Size:

Other, 7", 7"

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Products Status Stock

Application Other, DVD Player,MP3 / MP4 Players,Radio Tuner

Screen Size Other, 7", 7"

Response Time Other, <1 ms, <=1.0s

Brightness 400cd/m

Interface Type Other, CVBS

Contrast Ratio Other, 400:1, 350

Resolution Other, 480*234

Widescreen Yes

Panel Type TFT

Pixel Pitch 0.107(w)*0.370(h)

Brand Name silicon

Model Number SMO-707

Place of Origin Guangdong, China

Specifications

Size:7inch screen
Resolution:480*234
Adjust model:Remote control,OSD menu
2 way video(auto switching)inputs
PAL/NTSC

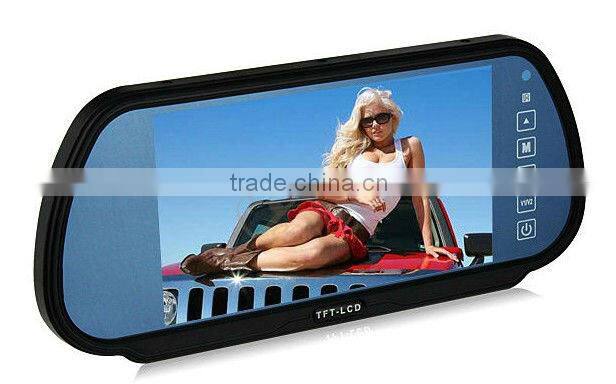

7 inch LCD Rearview Car Monitor

description

high quality 7inch tft lcd monitor , 480x234 resolution

LCD Monitor is one popular device, it has high product quality,high service petitive price.

specification

Feature:		Parameter:
display	Screen size	7 inch
	Resolution	480 (RGB) x 234
	Pixel arrangement Pixel array	R.G.B. Vertical Stripe
	Screen type	TN with Normally White
	View Angle(up/down/left/right)	60/60/70/70(degree)
	Aspect Ratio	16:9
	Average Brightness	>400cd/m2
	contrast Ratio	400
Led backlight	operating power	100mA
	operating voltage	Typ. 10.5V
	Typical power consumption synchronizing signal)	1050mW
Signal input	System format	PAL / NTSC(Auto)
Signal input	Signal amplitude(0.714Vp-p video signal, 0.286Vp-p synchronizing signal)	0.7~1.4 Vp-p
Power supply	Operating voltage	8~24V
	Operating current	135mA @ 12V
	Typical power consumption	1620 mW
Start-up time	Response Time	<=1.0s
Temperature and humidity range	Operating Temperature	-20°C~70°C(Humidity<80%)
Temperature and humidity range	Storage Temperature	-30°C~80°C(Humidity<80%)
Structural parameters	TFT (W x H x D) (cm)	28.5×17×6.8
	Visible Area	25×10.5 × 2.2
	Dimensions	*25(w)10.5(h)2.2(d)*
	Weight	600g
