Custom Made New XS-550 Automatic Screw-driving Machine
US$ 1 - 20,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Shuttle star
Model Number:
XS-550
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Guangdong, China
Brand Name
Shuttle star
Model Number
XS-550
After-sales Service Provided
No overseas service provided

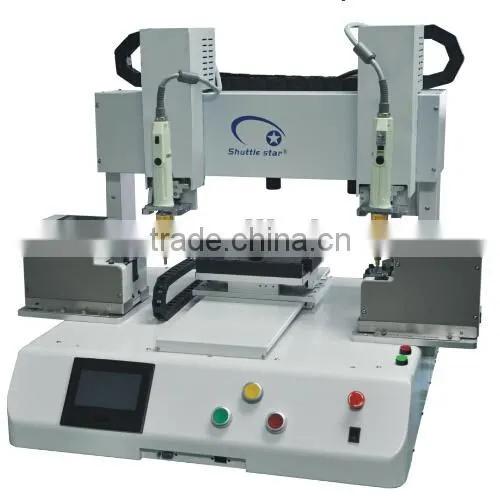

Custom made new XS-550 Automatic Screw-driving Machine
Product Description
Specification:
Supply Power |
Supply Power: AC 220V 50/60Hz |
Air Pressure Supply |
0.4~0.8Mpa |
Drive Mode |
5 Axis Stepper Motor + Timing Belt |
Working Efficiency |
MAX 1pc/s |
Working area X/Y/Z(mm) |
X350mm,Y300mm,Z50mm |
Max Speed |
X 400mm/s ,Y 400mm/s,Z 300mm/s |
Repeat accuracy |
+/-0.02mm |
Operation System |
PLC + Touch Screen |
Programming mode |
Teaching pendant |
Program recording mode |
1000 set,40000 points |
COM |
USB |
Dimension |
L700*W800*H680mm |
Weight |
Approx 60kg |
Feature:
1. High efficiency up to 1s/pcs, low failure rate, only 0.3% .
2. Adjustable torque from Japan can decrease defective rate at the most and perform reliably.
3. With intelligent detection system.(Alarm ring(display alarm)with loosen screw , missing screw and lost screw etc.
4. The standard universal Jig adapt to for most screw type;
5. Excellent commonality, range from M1.4 screw to M3.0 screw ;
6. Front and rear movable platform (Put in the front station and take the rear) is more suitable for online operation.
7. NG protective structure can protect the product not being crashed under abnormal conditions;
8. Excellent motion control match with stable performance apparatus, it can ensure operation process accuracy and stability;
9. Teaching mode programming , simple and reliably ,quick to start.
10. Double torque electric screwdriver, double platform, double efficiency. and it can lock 2 different kinds screw .
Packaging & Shipping
Wooden case
