warranty:
1 year, in the warranty, if any parts are broken not artificially, our company will afford to replace a new one for you and the relative shipping cost is on our party.

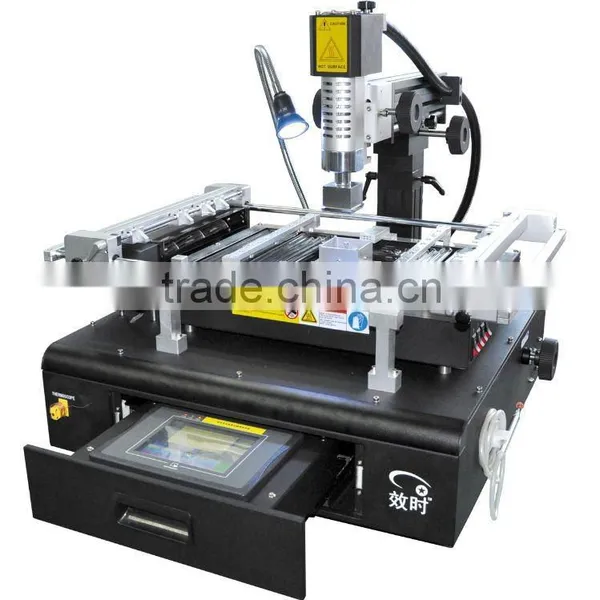

RW-B400C) desktop/laptop/xbox/ps3 BGA Repair Tools
Specification:
BGA rework station (RW-B400C) | |
PCB dimension | W50*50~W450*400mm |
PCB thickness | 0.5~4mm |
Working table adjustment | +/-50mmforward/backward,+/-200mm left/right |
Temperature control | K-type thermocouple, close cycle controlled |
PCB locating way | Jip |
Area heater | Infrared 2700w |
Top heater | Hot gas 400w |
Bottom preheat | Hot gas 800w |
Power supply | Single-phase 220,50/60Hz. 4.5kw |
Machine dimension | L660*W630*H600mm |
Machine weight | Approx. 60kgs |
Package list :
1. BGA rework station RW-B400C--------------1 PCS
Accessories :

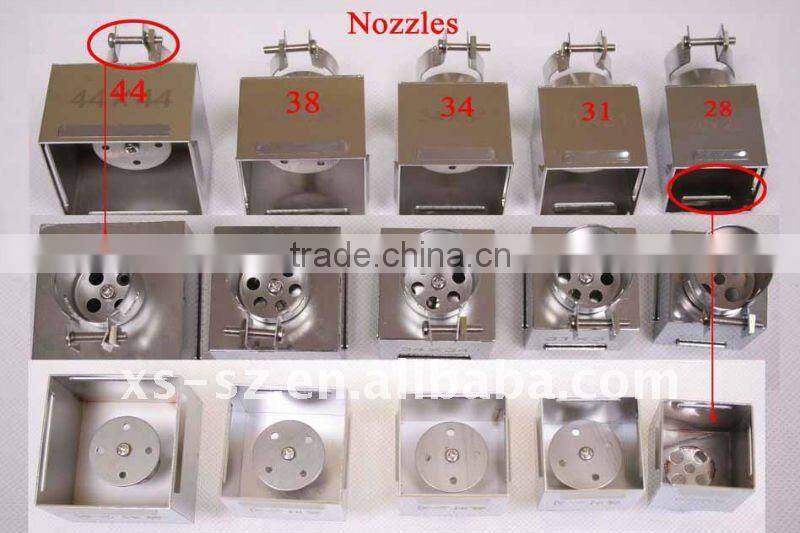

Nozzles ----------------------------------------------------5 pcs (44, 41, 38, 31, 26 mm, 1pc for each size)
Tools box -------------------------------------------------1 pcs
Inside the hexangular wrench ----------------------1 set
Clamp for Motherbord----------------------------------1 set
Brush-------------------------------------------------------1 pcs
USB mouse ----------------------------------------------1 pcs
Vacumm IC pikcer---------------------------------------1 pcs
Aluminium plate for BGA IC reballing -------------1 pcs
Thermo sensor wire(High precision) -------------1 pcs
Reballing stencils holder -----------------------------1 pcs
Reballing stencils --------------------------------------33 pcs
0.5 /0.6/0.76mm leaded solder balls---------------3 bottles (1 bottle for each size , 250k/bottle)
English manual ------------------------------------------1 book
|
|
Upper Nozzle |
|
|
|
