Hot Air Heater Bga Rework Station Mobile Phone/laptop Repair Equipment With Best Price

Hot Air Heater Bga Rework Station Mobile Phone/laptop Repair Equipment With Best Price photo-1
Hot Air Heater Bga Rework Station Mobile Phone/laptop Repair Equipment With Best Price photo-2
Hot Air Heater Bga Rework Station Mobile Phone/laptop Repair Equipment With Best Price photo-3
US$ 500 - 1,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Shuttle Star
Model Number:
RW-SP360C
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen/HK
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Guangdong, China
Brand Name Shuttle Star
Model Number RW-SP360C
Voltage 220V
Current 10A
Rated Capacity 4KW
Rated Duty Cycle 100%
Dimensions 650*500*600mm, L650*W500*H600
Weight 45kg, 36kg
Usage BGA Rework, bga reballing
Certification ISO9001
After-sales Service Provided Engineers available to service machinery overseas

 Hot air heater bga rework station mobile phone/laptop repair equipment with best price

Specification

Applicable PCB Size W50mm*D50mm~W430mm*D350mm
Applicable BGA Size 7mm*7mm~55mm*55mm
Max BGA Weight 80g
Upper heater(Hot Air) 600w
Lower heater(Hot Air) 800w
Bottom Preheat IR heater 2400w
Machine Dimension 650mm*500mm*600mm
Machine Weight 36KG
Power supply AC 220V 4KW



Hot air heater bga rework station mobile phone/laptop repair equipment with best price

Three temperature zone of our BGA rework station:



1) Top hot air heater



2) Bottom hot air heater



3) Bottom IR preheat

Hot air heater bga rework station mobile phone/laptop repair equipment with best price



Equipped with vacuum pen to pick up BGA



Hot air heater bga rework station mobile phone/laptop repair equipment with best price

Hot air heater bga rework station mobile phone/laptop repair equipment with best price

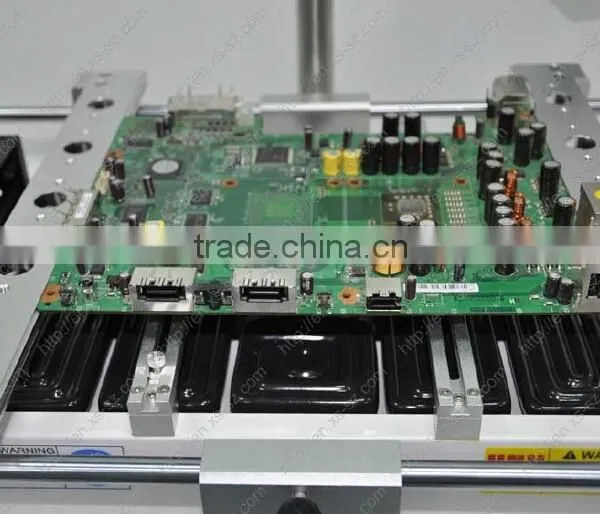

Special clapms help to fix the PCB motherboard



Hot air heater bga rework station mobile phone/laptop repair equipment with best price

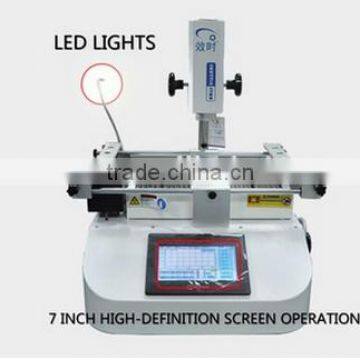

Real-time temperature curve can be displayed on operation interface

Hot air heater bga rework station mobile phone/laptop repair equipment with best price

 With different alloy hot gas nozzles, suit for different kind of BGA



Hot air heater bga rework station mobile phone/laptop repair equipment with best price

 Hot air heater bga rework station mobile phone/laptop repair equipment with best price



 Other Features

 1. Made of high quality heating material; desoldering and soldering procedures of BGA are precisely      controlled;

 2. Movable heating head, which is able to move freely horizontally, easy to operated;
 3. Embedded industrial computer, PLC control, real-time profile display, able to display set profile
 and practically-tested profile; big size screen, easy to operate;
 4. Profile saving no limit in this industrial computer, can analyze the two practically-tested profiles,
 can input both English and Chinese;
 5. The temperatures of the upper and lower hot air heaters can be precisely controlled according to
  their specific temperatures. The infrared constant temperature heating zone at the bottom area and
  the appropriate temperature-control settings make the rework safer and more reliable.
 6. The supports for the BGA soldering supporting frame are micro-adjustable to restrain local  sinkage.
 7. Powerful cross flow fans cool the lower heating area rapidly;
 8. The adjustable PCB positioning support, onto which the special fixtures for alloyed board could be    installed,enables easy and fast positioning of the PCB board;
 9. Buzz after soldering is finished or desoldering; Hand vacuum pen is adjustable for removing BGA;
10.Both the upper and lower parts are equipped with over-temperature alarming and protection  apparatus.
11.With different alloy hot gas nozzles, easy to replace. It could be tailored as per the specific requirements.
12.The integrated design of machine and chassis is room-saving. could be altered to instrument-control.
13.The software can be updated to auto-profile in future by USB, no need to set profiles.
