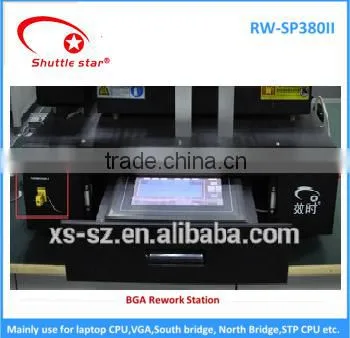

Multi-function chip repair machine RW-S380II factory original price for all mainboard
- 500 Set / Sets per Month
- Shenzhebn
- T/T L/C D/P D/A Credit Card
- Denoh For Connecting Automation Special Machine 500e Dgn Flux Core Welding Machine Multi Function
- High Quality Multi-function Integrated Multi-purpose Multifunctional Welding Machine
- 500e Dgn Flux Core Integrated Multi-purpose Multi-function Welder
- Denoh Digital Push Wire Type Engine Welding Machine
- Denoh Engine Welding Machine Push Wire Type High Quality China
- Denoh Multi-function Welder For Connecting Automation Special Machine At Wholesale Price
Product Details
Place of Origin: | Guangdong, China | Brand Name: | Shuttle Star | Model Number: | RW-S380II |
Voltage: | 220V | Current: | 20A | Rated Capacity: | 3600W |
Rated Duty Cycle: | 100% | Dimensions: | L660*W630*H600mm | Weight: | 60kg |
Usage: | BGA Rework | Certification: | ISO9001:2008 | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
- Multi-function chip repair machine RW-S380II factory original price for all mainboard
- Excellent heating material produces precise controled temperatures
- Movable heating head, able to move horizontally, easy to operate
- Touch screen interface, PLC control; real-time temperature profile display
- Powerful cross flow can cool the lower heating area rapidly
- Different hot gas nozzles, easy to replace
- Adjustable PCB positioning supports, easy and fast to install PCB
- The BGA soldering supporting frame can micro-adjusted to avoid local sinkage
- 8 segments of temperature control, profile analysis can be carried out on the touch screen
- Temperature alarming and protection function for both upper and lower heating area
- Alarming function for finishing soldering or desoldering; hand vacuum pen easy for picking up BGA
Heating system: Three independent temperature zones, (top hot air heating, under hot-air heating, and bottom IR heating),
temperature and time can be displayed digitally on the touch screen, able to rework CGA
Vacuum removal system: The system carries vacuum pen , built-in vacuum pump, suction appropriate, easy to operate,
also can protect the pins on PCB from being damaged
Clamping device: Clamps installing schematic diagram; the irregular PCB like laptop motherboard can be grasped flatly by the clamps
Clamping device: Specially designed with flexible mobile angle can be conveniently clamp PCB, also equipped with special laptop clamping device for convenient clamp irregular laptop circuit board
Nozzle: Different-sized nozzles for different-sized BGAs,for particular component, nozzle can be custom-made
Multi-function chip repair machine RW-S380II factory original price for all mainboard
Item | Qty. |
BGA Reball Kit(BK98D) | ×1set |
Stencil/Mask | ×33pcs |
Solder Paste/Flux | ×1tin |
Leaded Solder Ball(0.45, 0.5, 0.6mm) | ×1tins |
Upper Nozzle(five for upper, two for bottom) | ×7pcs |
PCB Clamp for Laptop Motherboard | ×1set |
Temperature Measurement Wire | ×1pc |
High Temperature Cloth | ×1pc |
Hex Key Wrench-set | ×1pc |
Aluminum Plate | ×1pc |
Packaging: Standard Wooden Case with Machine fixed inside
Delivery: Delievery within 1 week after get payment
Shenzhen Shuttle Star Technology Co., Ltd. is one of the earliest professional BGA rework station manufacturers in China. Ever since founded in 2000, the product structure and performance are improved constantly according to the market demand and the product series has covered the from high-end to low-end and can provide complete solutions for the BGA reparation operation according to the special demand of customer.
