Home > Manufacturing & Processing Machinery > Laser Equipment > Laser Welding Machine > Economy!! The Cheapest Motherboard BAG Repair Machine(SP360C)

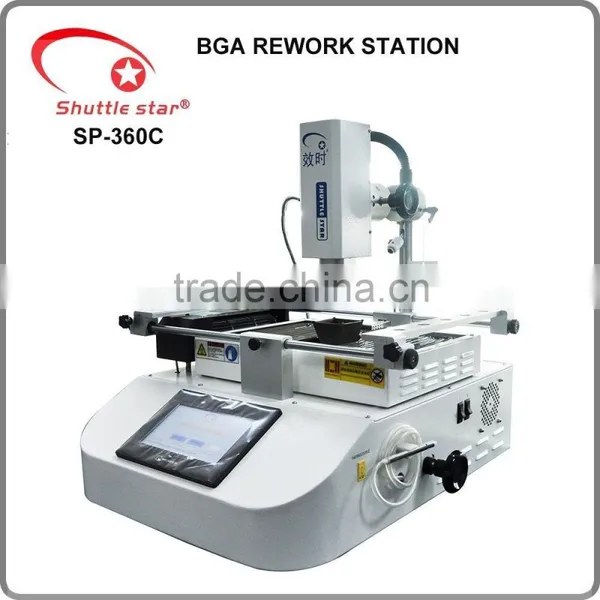

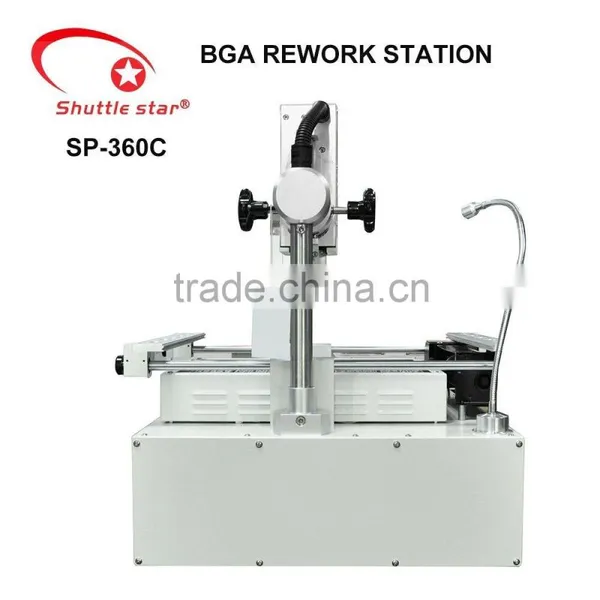

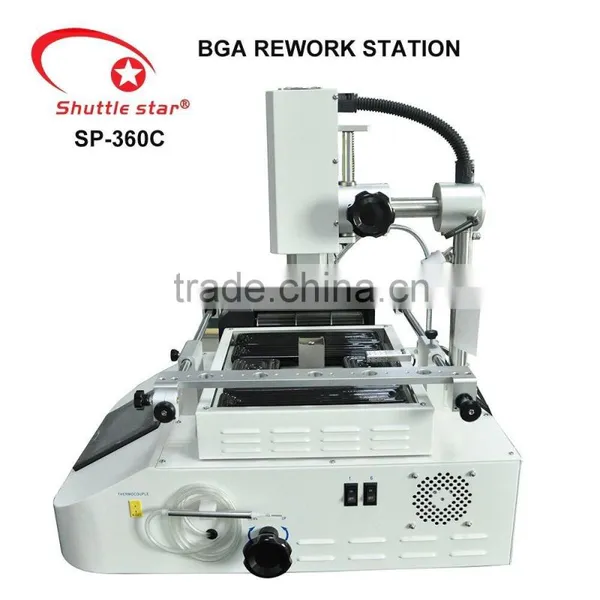

Economy!! The Cheapest Motherboard BAG Repair Machine(SP360C)

Economy!! The Cheapest Motherboard BAG Repair Machine(SP360C) thumbnail-1
Economy!! The Cheapest Motherboard BAG Repair Machine(SP360C) thumbnail-2
Economy!! The Cheapest Motherboard BAG Repair Machine(SP360C) thumbnail-3
Economy!! The Cheapest Motherboard BAG Repair Machine(SP360C) thumbnail-4
Economy!! The Cheapest Motherboard BAG Repair Machine(SP360C) thumbnail-5
Economy!! The Cheapest Motherboard BAG Repair Machine(SP360C) thumbnail-6
Economy!! The Cheapest Motherboard BAG Repair Machine(SP360C) photo-1
Economy!! The Cheapest Motherboard BAG Repair Machine(SP360C) photo-2
Economy!! The Cheapest Motherboard BAG Repair Machine(SP360C) photo-3
Economy!! The Cheapest Motherboard BAG Repair Machine(SP360C) photo-4
Economy!! The Cheapest Motherboard BAG Repair Machine(SP360C) photo-5
Economy!! The Cheapest Motherboard BAG Repair Machine(SP360C) photo-6
US$ 1 - 1,550 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Shuttle Star
Model Number:
RW-SP360C
Contact Supplier Request Quote Chat Now
Shenzhen Shuttle Star Industrial Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Hongkong/Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name Shuttle Star
Model Number RW-SP360C
Voltage 220V
Current 10A
Rated Capacity 4kw
Rated Duty Cycle 100%
Dimensions L620*W580*H650mm
Weight 36kg
Usage BGA Rework
Certification CE ISO Certification
After-sales Service Provided Engineers available to service machinery overseas

Economy!! ISO & CE Certificate Hot Air Solder Station (SP360C)

Product Description

Specification

Applicable PCB Size W50mm*D50mm~W430mm*D350mm
Applicable BGA Size 7mm*7mm~55mm*55mm
Max BGA Weight 80g
Upper heater(Hot Air) 600w
Lower heater(Hot Air) 800w
Bottom Preheat IR heater 2400w
Machine Dimension 650mm*500mm*600mm
Machine Weight 36KG
Power supply AC 220V 4KW



Illustration

Economy!! The cheapest motherboard BAG repair machine(SP360C)

Fueature



1. Made of high quality heating material; desoldering and soldering procedures of BGA are precisely      controlled;



 2. Movable heating head, which is able to move freely horizontally, easy to operated;



 3. Embedded industrial computer, PLC control, real-time profile display, able to display set profile



 and practically-tested profile; big size screen, easy to operate;



 4. Profile saving no limit in this industrial computer, can analyze the two practically-tested profiles,



 can input both English and Chinese;



 5. The temperatures of the upper and lower hot air heaters can be precisely controlled according to



  their specific temperatures. The infrared constant temperature heating zone at the bottom area and
  the appropriate temperature-control settings make the rework safer and more reliable.



 6. The supports for the BGA soldering supporting frame are micro-adjustable to restrain local  sinkage.



 7. Powerful cross flow fans cool the lower heating area rapidly;



 8. The adjustable PCB positioning support, onto which the special fixtures for alloyed board could be installed,enables easy and fast positioning of the PCB board;



 9. Buzz after soldering is finished or desoldering; Hand vacuum pen is adjustable for removing BGA;



10.Both the upper and lower parts are equipped with over-temperature alarming and protection  apparatus.



11.With different alloy hot gas nozzles, easy to replace. It could be tailored as per the specific requirements.



12.The integrated design of machine and chassis is room-saving. could be altered to instrument-control.



13.The software can be updated to auto-profile in future by USB, no need to set profiles.



Detail Picture

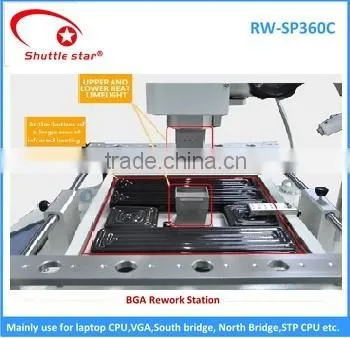

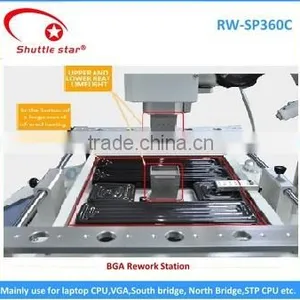

Three temperature zone of our BGA rework station:



1) Top hot air heater



2) Bottom hot air heater



3) Bottom IR preheat

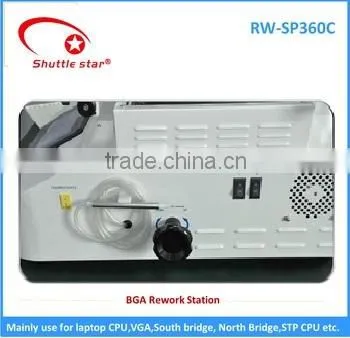

 Equipped with vacuum pen to pick up BGA





                   Special clapms help to fix the PCB motherboard



    With different alloy hot gas nozzles, suit for different kind of BGA

Economy!! The cheapest motherboard BAG repair machine(SP360C)



Our Services

1 .Shuttle Star will offer free training on operating personnel and service within the warranty, but all the travelling cost and relative cost will be on the buyer’s account if incurred.

2.  Shuttle Star offers free lifelong maintenance in our office and training for maintenance.through telephone, email and online webcam.

3.  Under warranty, Shuttle Star sends spare parts to the customer and affords all the cost and freight ifany spare part is broken.

4.  Beyond warranty, Shuttle Star charges for the spare parts and the freight for shipping will be on the buyer’s account if customer needs our spare parts.



Shipping

DHL, UPS, TNT, EMS,By Sea,By Air,we will choose the cheapest for you.

How long judge by the city.



Company Information

Shuttle star industrial Co.,Ltd ,the company expert in bga rework station for 17years,the reliability and technology deposit are all recognized at home and abroad,High quanlity assurance is our task and also what we are doing now. so if you are looking for bga rework station,we are definitely your best choice.



Certifications

All of our ic replacement Station is approved by CE and ISO Certification.



Customers Visit

some customers from home and abroad come to visit our factory, we arrange the technician to show the machine operation.Free training is available, many oversea customer train in our factory. Warmly welcome you to visit our factory.



Packaging & Shipping



1 , All machines will be packaged in wooden box if the buyers ask no special demand.

2, It is free shipping in mainland.

3,Shipping by DHL,UPS,TNT,EMS,by air or sea,we will choose best for  you.







 We suply many kinds of BGA Rework Station with top quality and

 best price ,If you have any more needs , welcome to contact us .
