RW-SV550 Infrared Laser Bga Rework Station for Computer/ Mobile Phone/ Game Console
- Shenzhen/HK
- T/T Money Gram Credit Card
You May Like
-
Shuttle Star Automatial BGA Rework Station RW-PS400 ForBGA Rework Station RW-PS400 Soldering and Mounting With HDMI Camera
-
BGA LGA CGA BHA QFN CSP POP Repair Machine RW-SV550
-
Optical Alignment BGA Cpu Repair RW-SV550
-
High Definition CCD Camera BGA Machine for PS Motherboard Repair RW-SV550 Used Infrared Bga Rework Station With ISO CE
-
Best Services Repair Apple MacBook Laptop Machine RW-SV550
-
Brand Shuttle Star Bga Rework System Welding Machine Can be Adjustable to Repair All Kind of Chips
Product Details
| Place of Origin | Guangdong, China | Brand Name | Shuttle Star | |
| Model Number | RW-SV550 | Voltage | 220V/110V | |
| Current | 25A/55A | Rated Capacity | 5600W | |
| Rated Duty Cycle | 60% | Dimensions | 750*820*800 | |
| Weight | 75KG | Usage | BGA Rework | |
| Certification | ISO9001:2008 | After-sales Service Provided | Overseas service center available |
Product Description

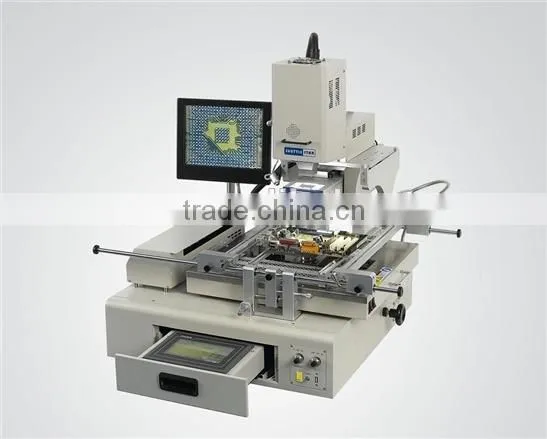

Factory price ! Laser solder rework machine SV550 BGA Rework station with optical alignment system
RW- SV550
| PCB Size | W20*D20 ~ W540mm x D450mm |
| Workable area | W540*D450mm |
| PCB Thickness | 0.4~ 4mm |
| Applicable BGA | 1*1~80*80mm |
| Working table adjustment | Front/Rear ± 120mm, Left/Right ± 80mm |
| PCB locating way | Outer |
| Temperature Control | K-Type Thermocouple,Close Cycle Controlled |
| placement precision | ±0.05mm |
| Min pitch of bga ball | 0.15mm |
| Gross power | 5600W |
| Bottom IR Preheat | 3600W |
| Top heater | 1200W |
| Bottom heater | 800W |
| MAX BGA weight | 80g |
| Power supply | Single Phase, 220VAC, 50/60 Hz |
| Machine dimension | L750*W820*H800mm |
| Weight | Approx 75kg |
Operation Menu
Three temperature zone:
1) Top hot air heater
2) Bottom hot air heater
3) Bottom IR preheat - Prevent PCB board deforming ,and we use import IR wave gilding heater plate with high temperature glass,temperature increasing and decreasing rapidly ,it can protect PCB board from deformation and ensure repair effect .
Auto function:
auto soldering & auto desoldering function - PLC control
Color optical camera system: -
1) Split vision
2) Zoom in/out and micro-adjust
3) Equipped with aberration
4) Detection device
5) With auto focus and software operation function
The other :
1) Embedded industrial computer, touch screen interface, real-time temperature curve display,able to display temperature curves and practical curves as the same time: can analyze the practically-tested
profile, and compare them with the history saved profiles;
2) Built-in vacuum pump, 60 °rotation in φ angle, mounting nozzle is micro-adjustable;
3) 8 segments of temperature up(down) and 8 segments constant temperature control, profile saving is
unlimited in the industrial computer;
4) Suction nozzle can identify material and mounting height automatically, and can control the air
pressure within a small range ;
5) Big size splint, equipped with deformation-proof supporting device, suitable for the accurate rework of all kinds of PCB;
wooden box package
Free shipping in mainland
1. Shuttle Star built in 2000, we are the first factory to do China-made BGA rework station in mainland,
and most of our staff have more than 5 years experience in Shuttle star company ;
2. Our factory past ISO
3. We have lots of patents.
4. We offer good quality and good technology to the world.our price is not cheap,but our service is very cheaper .
5. Our customer and approved certification
If you want to know more about us,welcome contact with me:
Skype:lilies-lee
Telephone:0086 18820220117
Thank you for your time !
Shuttle Star not only do BGA rework station ....
