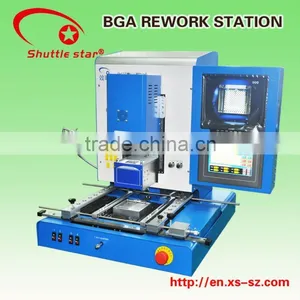

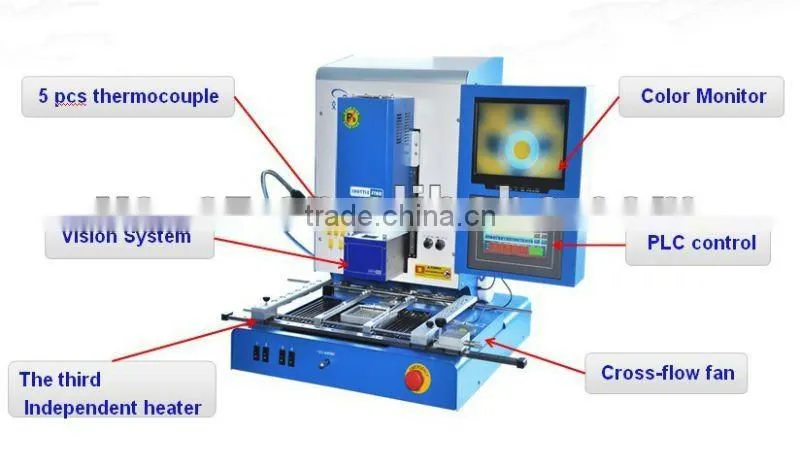

Auto BGA Reballing Machine with Vision System (PS400)

Applicable PCB:

W20*D20~W350*D350mm

PCB thickness:

0.5~4mm

Working table adjustment:

±10mm forward/backward, ±10mm left/right

Temperature control:

K-type thermocouple, close cycle controlled

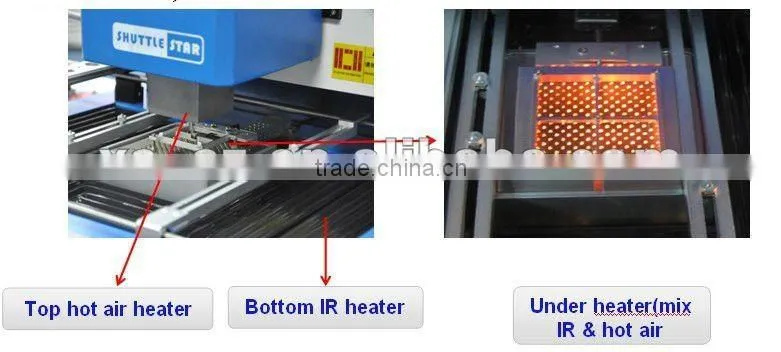

Upper heater(hot air):

800W

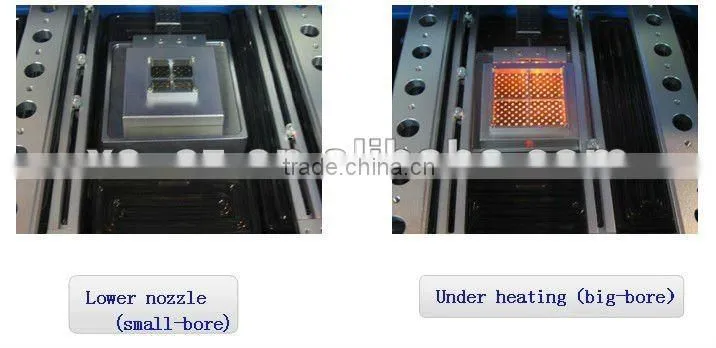

Lower heater(hot air):

800W

Bottom IR heater:

2700W

Power supply:

AC singal-phase 220V 50/60Hz

Applicable BGA:

1*1~70*70mm

Placement precision:

0.01mm

Max BGA weight:

80g

Machine Weight:

80KG

Machine Dimension:

L600*W600*H750mm
