Specifications

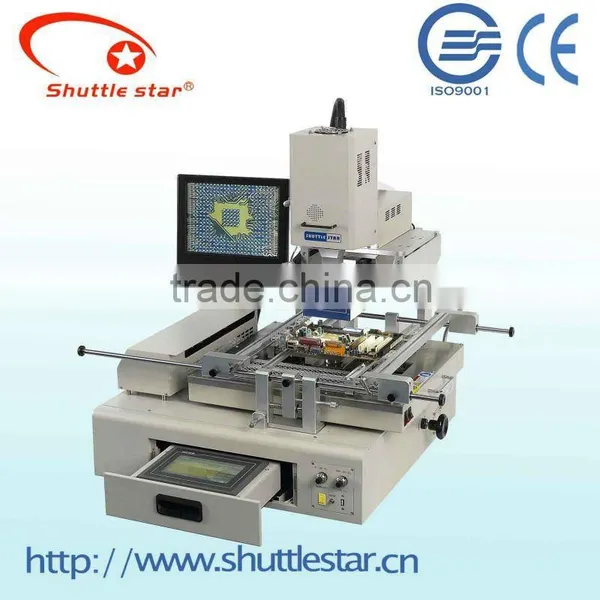

BGA repairing station RW-SV550Semi-auto with optical alignment system
Large movable bottom IR heating area
Large IR heater

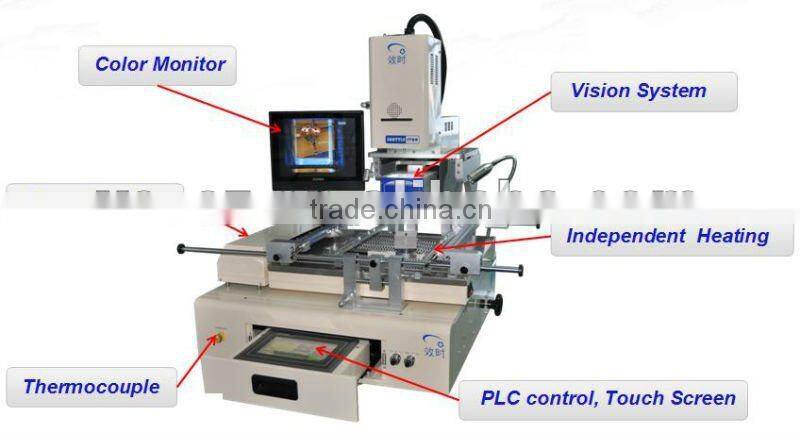

Laptop bga repairing with highly vision system(SV550)
Warranty: 1 YEAR
1. Shuttle Star will offer free training on operating personnel and service within the warranty, but all the travelling cost and relative cost will be on the buyer’s account if incurred.
2. Shuttle Star offers free lifelong maintenance in our office and training for maintenance through telephone, email and online webcam.
3. Under warranty, Shuttle Star sends spare parts to the customer and affords all the cost and freight if any spare part is broken.
4. Beyond warranty, Shuttle Star charges for the spare parts and the freight for shipping will be on the buyer’s account if customer needs our spare parts.
Specification:
Features:
*Hot air heater head and mounting head are designed 2 in 1, driven by step
electric motor, have both the auto soldering and mounting function;
*Three heaters( upper/lower hot air heater, bottom IR heater) heating
independently, time and temperature can be displayed digitally on touch screen;
*Upper heater is movable, convenient for operation;

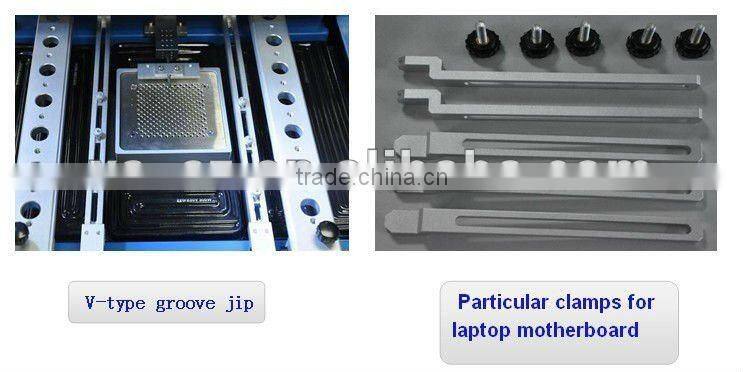

*Large movable bottom IR heating area, PCB clamps can be adjusted along with
X& Y table flexibly, the max PCB size it can handle up to 550×500mm;
*Powerful cross flow fans cool the bottom heating area rapidly with stable speed.

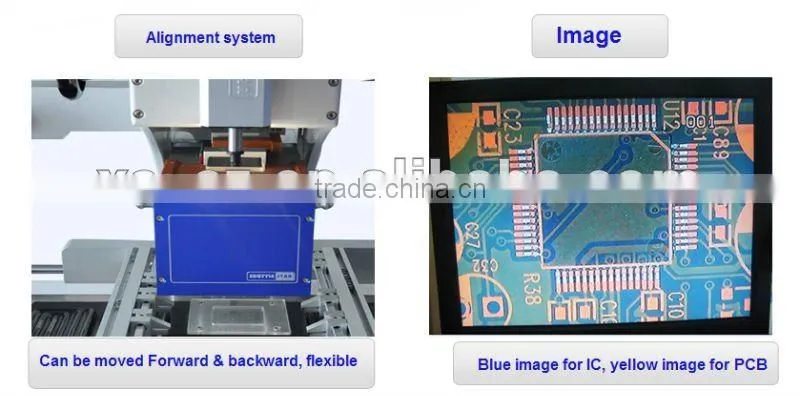

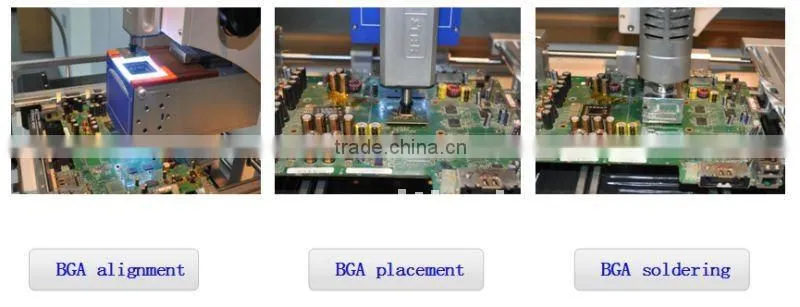

*Color optical system with functions of split vision, zoom in/out and micro-adjust,
equipped with aberration detection device; with auto focus and software
operation function, 27 X optical focus, able to rework BGA sized up to
70×70mm;
* Embedded industrial computer, touch screen interface, PLC control, real-time
profile display, able to display set profile and 5 practically tested profile at the
same time; can analyze the five practically-tested profiles, and compare them
with the history saved profiles;
*Color LCD monitor; big size screen, easy to operate; Connect USB mouse, easy
to operate
*Built-in vacuum pump; 60 °rotation in φ angle, mounting nozzle is
micro-adjustable;
*8 segments of temperature up(down) and 8 segments constant temperature
control, profile saving is unlimited in the industrial computer;
*Suction nozzle can identify material and mounting height automatically, and can
control the air pressure within a small range;
*Equipped with different hot air nozzles, easy to replace and able to locate in any
angle;
*Can handle 775 socket, 478 socket, XBOX360, PS2/3 CISCO Sever etc.
|
|
|

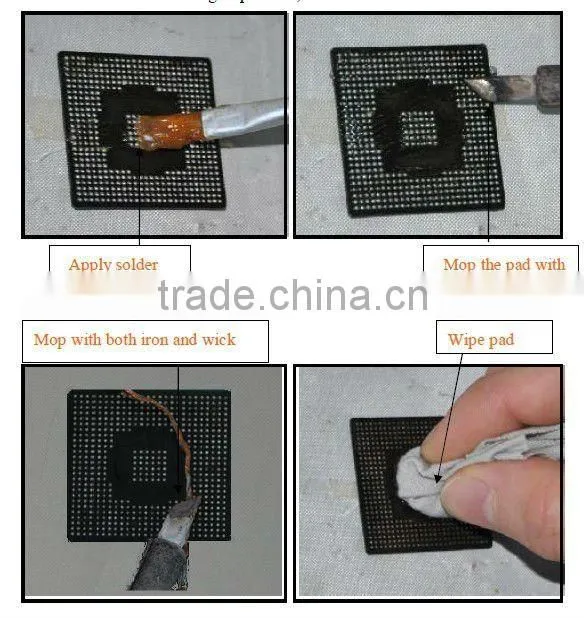

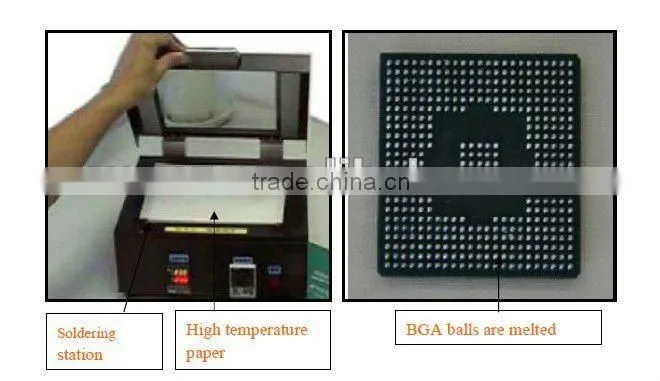

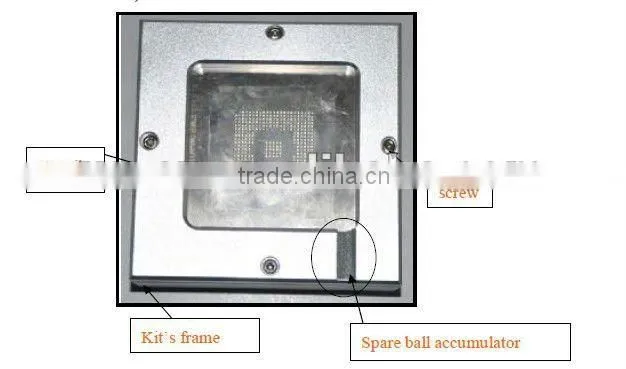

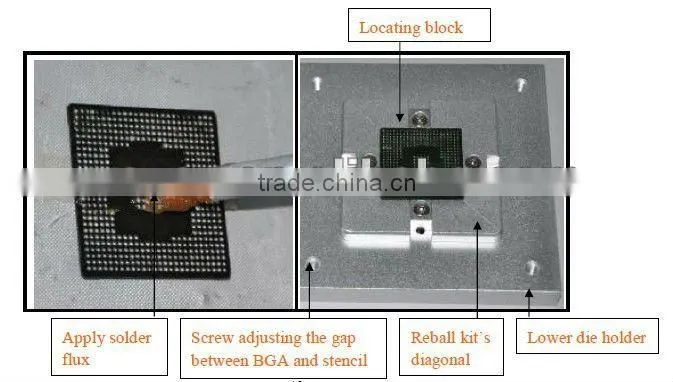

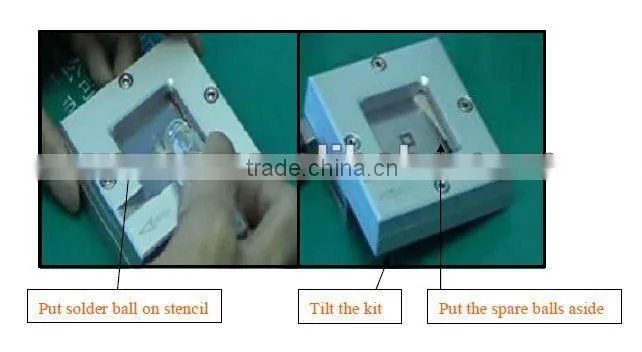

How to reball: |
|
