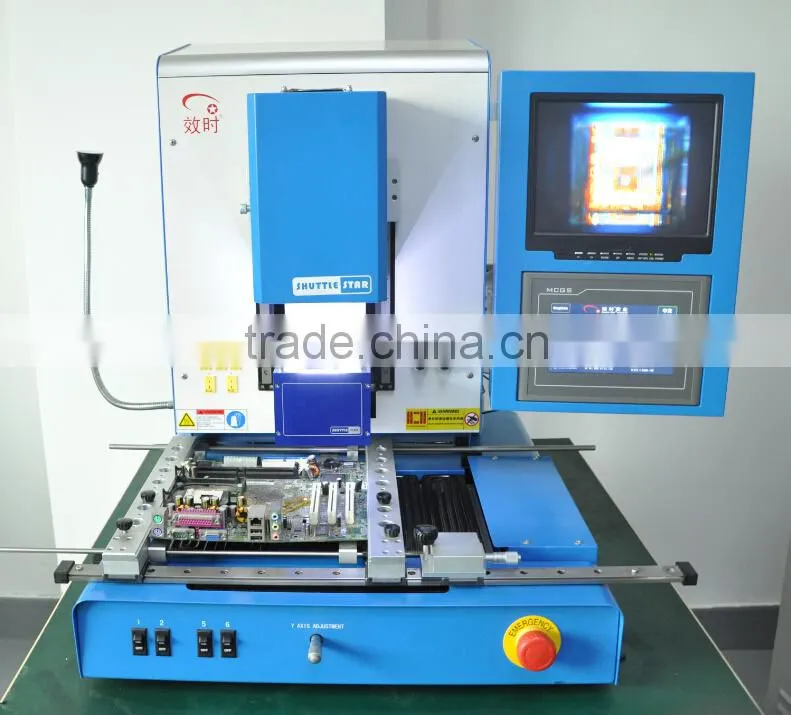

Original shuttle star factory Vision and high precision optical alignment bga rework PS400 laptop, sp3, computer repair tools
PCB dimension: W20*D20~W350*D350mm
PCB thinkness: 0.5~4mm
BGA dimension: 1*1~70*70mm
Working table adjustment: ±10MM forward/backward,±10MM left/right
Lower hot-air heater: 1000W
Upper hot-air heater: 1000W
Bottom preheatfar infrared: 3000W
Temperatur control: K-type thermocoupleclose cycle controlled
PCB locating way: Outer or Jig
Min pitch of BGA ball:0.15mm
Placement precision:±0.02mm
Max BGA weight:300g
Power supply: single-phase 220V,50/60Hz,4.5KW
Machine dimension: L600*W600*H750mm
Weight: Appox 60Kgs
Three temperature zone:
1) Top hot air heater
2) Bottom hot air heater
3) Bottom IR preheat - Prevent PCB board deforming ,and we use import IR wave gilding heater plate with high temperature glass,temperature increasing and decreasing rapidly ,it can protect PCB board .
Auto function:
auto pick-up,auto soldering,auto desoldering and auto placement function - PLC control

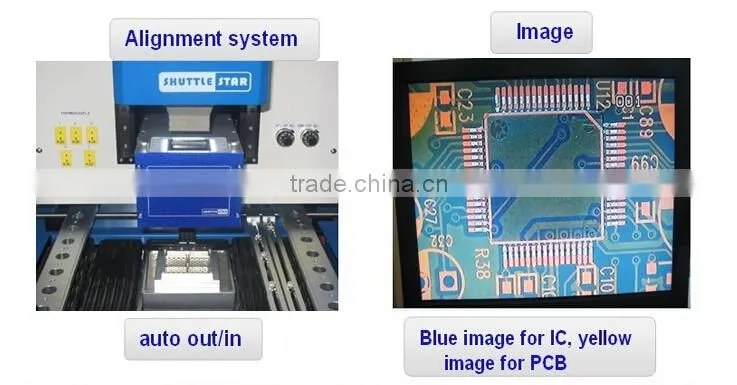

HD color optical camera system:
1) Split vision
2) Zoom in/out and micro-adjust
3) Equipped with aberration
4) Detection device
5) With auto focus and software operation function
The other :

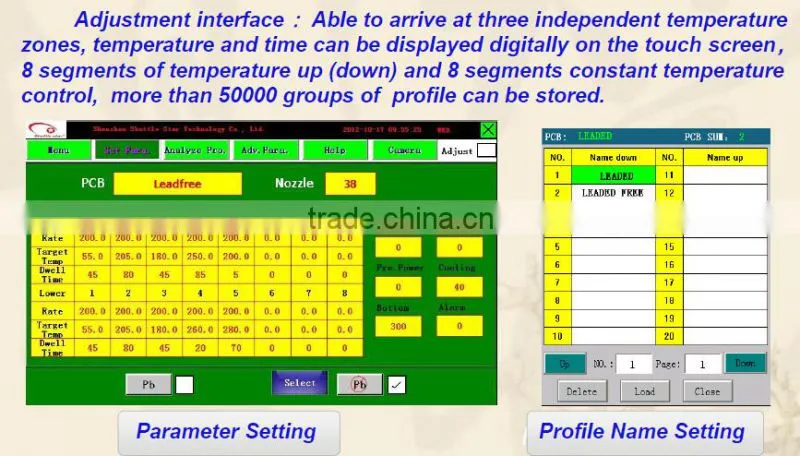

1) Embedded industrial computer, touch screen interface, real-time temperature curve display,able to display temperature curves and practical curves as the same time: can analyze the practically-tested
profile, and compare them with the history saved profiles;
2) Built-in vacuum pump, 60 °rotation in φ angle, mounting nozzle is micro-adjustable;
3) 8 segments of temperature up(down) and 8 segments constant temperature control, profile saving is
unlimited in the industrial computer;
4) Suction nozzle can identify material and mounting height automatically, and can control the air
pressure within a small range ;

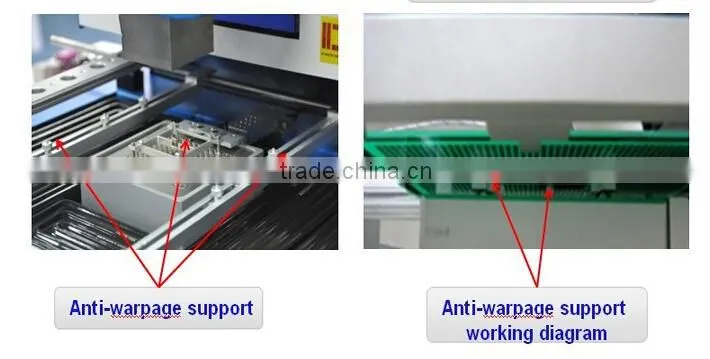

5) Big size splint, equipped with deformation-proof supporting device, suitable for the accurate rework of all kinds of PCB;
wooden box package
Free shipping in mainland
1. Shuttle Star built in 2000, we are the first factory to do China-made BGA rework station in mainland,
and most of our staff have more than 5 years experience in Shuttle star company ;
2. Our factory past ISO
3. We got lots of patents.
4. We offer good quality and good technology to the world.our price is not cheap,but our service is very cheaper .
Our customers and awards : - Honor
If you want to know more about us,welcome contact with me:
Skype:lilies-lee
Telephone:0086 18820220117
Thank you for your time !
Shuttle Star not only do BGA rework station ....
