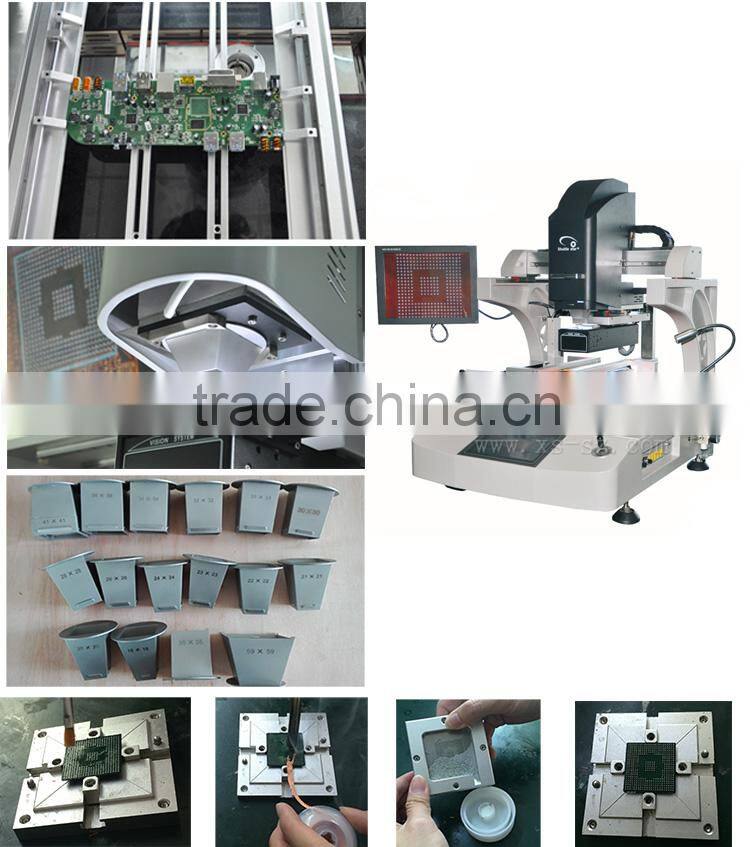

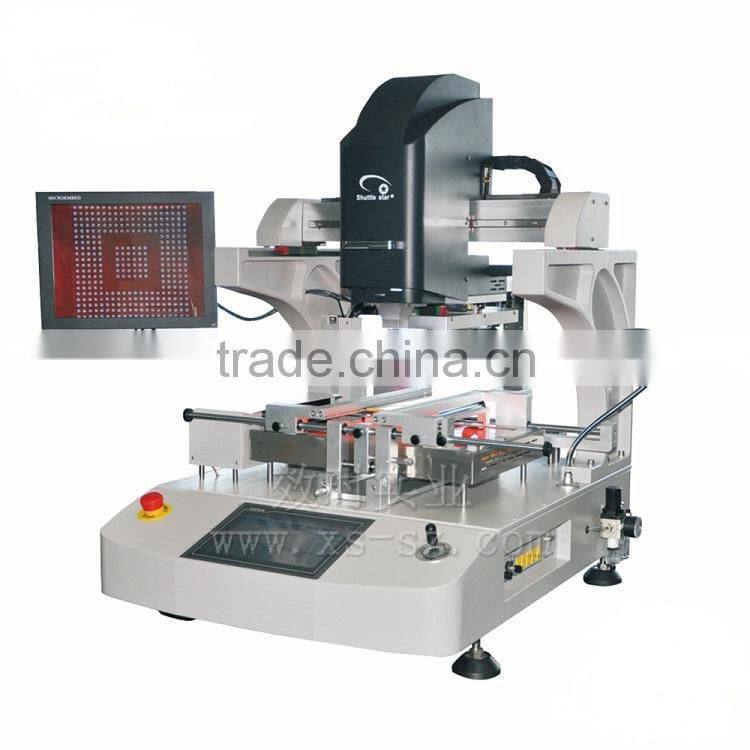

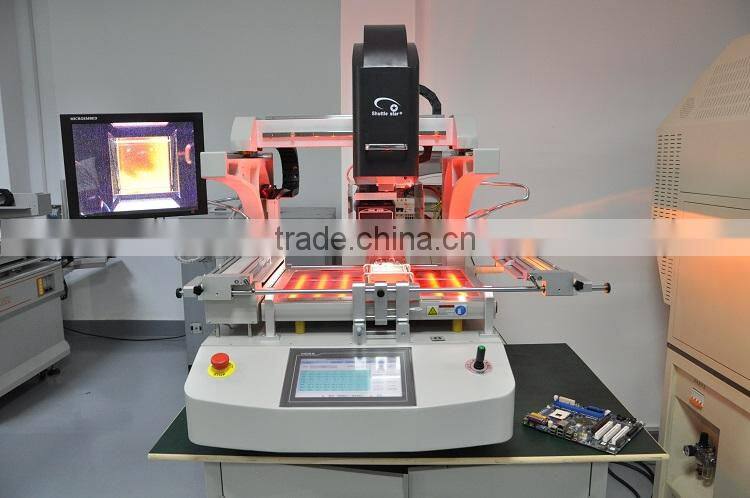

Help CenterShuttle Star Bga Rework Station for Ps3 Motherboard With Reballing Tools
Related Products
-
Professional Iphone Motherboard IC Replace Machine With Good QualityUS$ 1 - 15,000MOQ: 1 Set -
Shuttlestar Factory PS400U HD Optical BGA Repair Machine Same for 850a Smd Rework StationUS$ 1 - 1MOQ: 1 Set
-
Shuttlestar Factory PS400U HD Optical Infrared Bga Rework Station Same to 850a Smd Rework StationUS$ 1 - 1MOQ: 1 Set
-
Shuttle Star Factory PS400U Bga Rework Station for Laptop Motherboard Smd Rework StationUS$ 1 - 1MOQ: 1 Set
-
Shuttlestar Factory PS400U HD Ccd Camera Bga Rework Station Same to Bga Rework Station Dh-5830US$ 1 - 1MOQ: 1 Set
Product details
| PCB Working Area | W20*D20~W538*D500mm |
| PCB Thickness | 0.5~4 mm |
| BGA size | 1*1~100*100 mm |
| Working Table | Front/back +/-5mm,left/right +/-5mm |
| Temperature Control | K-type Thermcouple,Close Cycle controlled |
| PCB Locating Way | Outer and Jig |
| Placement Accuracy | +/- 0.05mm |
| Min Pitch of BGA ball | 0.15mm |
| Max BGA Weight | 300g |
| Power Supply | 3 Phase 380V,50/60Hz |
| product keywords | bga rework station for ps3 motherboard |
1. Preheating PCB to remove moisture to prevent foaming , prevent damage of heat ;
2. Create temperature profiles for de-soldering, soldering; please contact us to get correct profile;
3. Desolder, Remove the BGA/IC from the board ,i.e CPU/GPU ;
4. Residual solder removal ,Remove residual solder from board and component pads;
5. BGA reballing, Attach new soldering balls if the BGA is to be re-used;
6. Alignment, Using RW-E6250U CCD camera to assemble a new BGA or re-used BGA to board ,
The camera and 1080P LCD can help you to monitor it .
7. Solder, Need a proper temperature profile to weld BGA;
What's BGA Rework Station,Generally used in where ?
A reliable rework solutions should incorporate high accuracy and perfect heat management.
RW-E6250U can provide perfect heat management and process to protect your PCB from broken.
Besides, it have high accuracy CCD camera alignment system and 1080P HD display LCD.
Shuttle Star offers free lifelong maintenance in our office and training for maintenance
Shuttle Star 17 years expert in BGA Total Solution and customerized Automation Equipment. We own successful cooperation experience with many well-known domestic and global enterprise, and we have garnered a high reputation from clients and consumers; We can offer free BGA solution for our customer,good after service and lifelong maintenance in our office and training for maintenance through telephone, email and online webcam.
PACKAGE:
Standard export carton packing.
SHIPPING:
