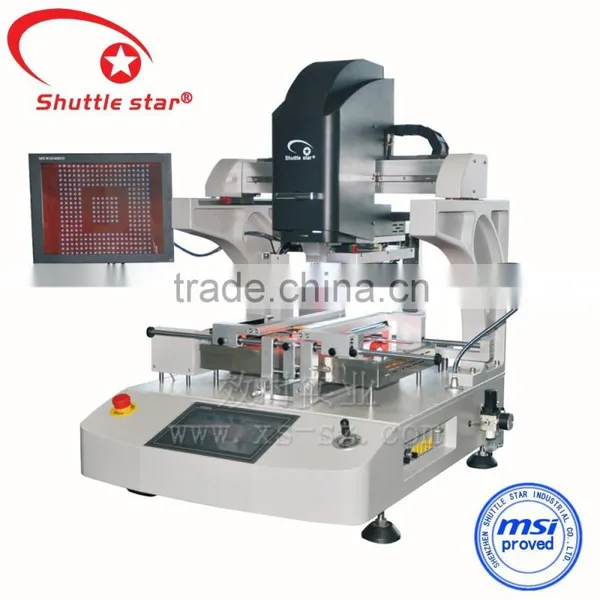

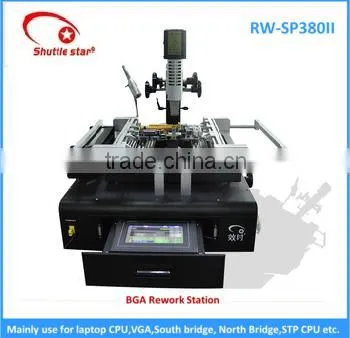

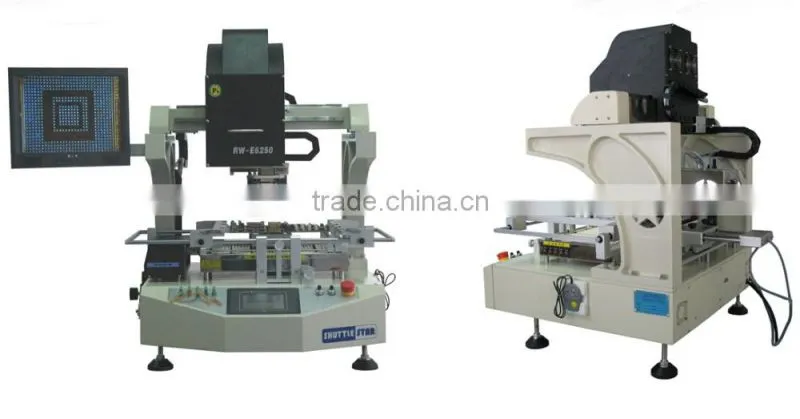

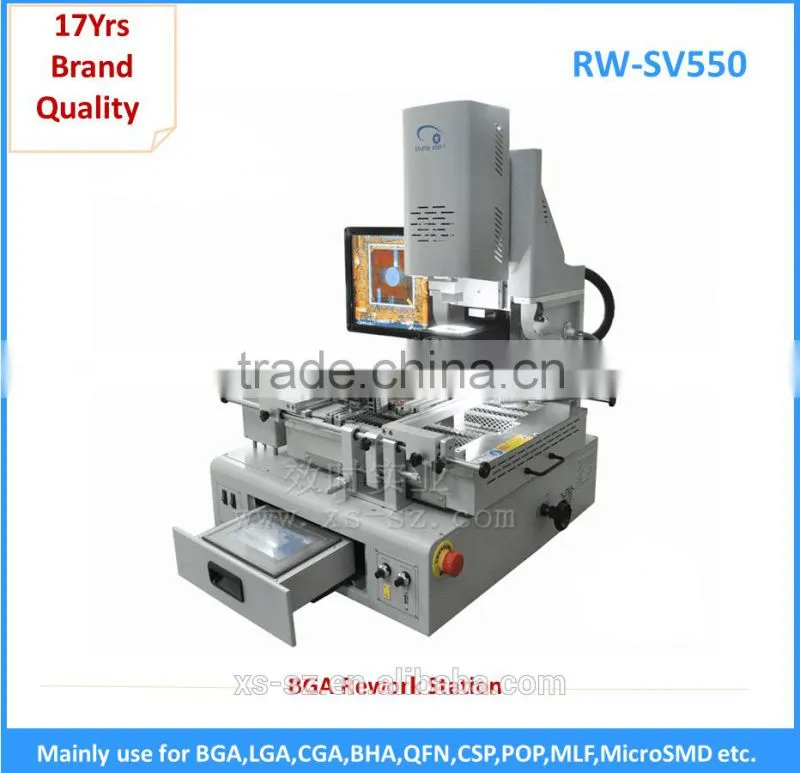

Factory price bga chips soldering station welding machine mobilephone/playstation 4 motherboard
Product Application
Laptop, smart phone, ps4,ps3,XBOX,routers，desktop,iphone
Main Features

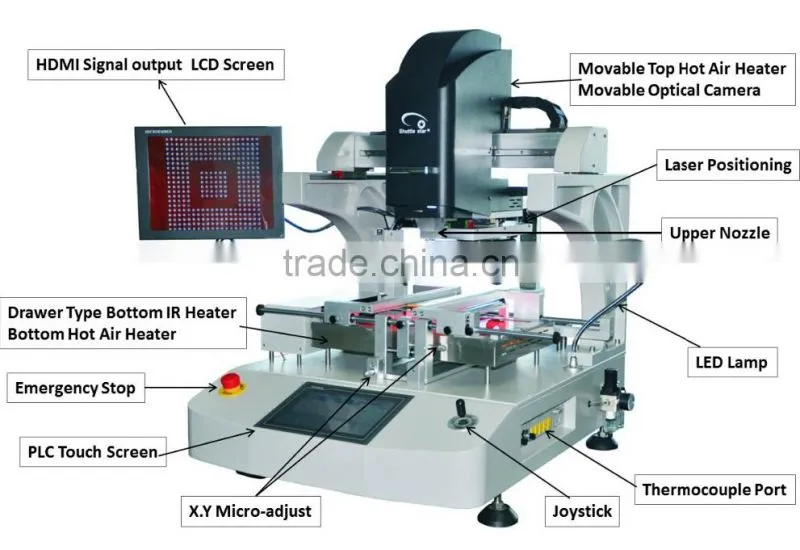

1)Hot air head and mounting head are designed 2 in 1, and have both the auto soldering and mounting function;
2)Color optical system with functions of split vision, zoom - in and micro-
adjustment,equipped with aberration detection device; with auto focus and software
operation function,22X optical zoom; able to rework BGA sized up to 70mm×70mm;

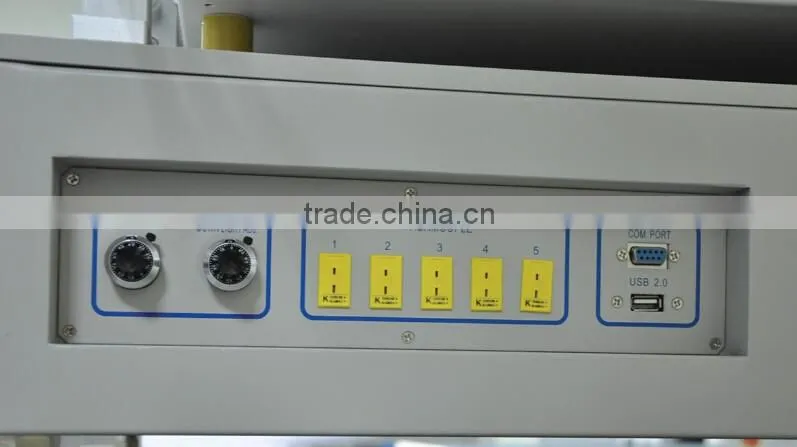

3)Touch screen interface, PLC control; able to display temperature curves and five detecting curves at the same time;
4)Color LCD monitor;
5)Built-in vacuum pump; 360° rotation in Φ angle; mounting nozzle is micro-adjustable;
6) 6 segments of temperature up (down) and 6 segments constant temperature control, 200
groups of temperature curve are stored; Curve analysis can be carried out on the touch
screen and has the communication function as computers ,with software attached;
7) Able to arrive at three independent temperature zones,temperature and time can be
displayed digitally on the touch screen;able to rework CGA;

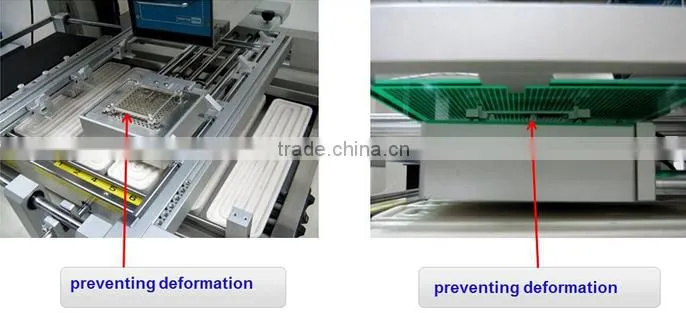

8)The supports rack can be adjusted to restrain the local sinkage of the BGA soldering area;
9)Suction nozzle can identify material and mounting height automatically, and can control the
air pressure within a small range;
10)Both upper and lower hot-air heating head are movable on the IR preheating area to fit for
reworking BGA in different positions on PCB;
11) Equipped with different alloy hot air nozzles, easy to replace and able to locate in any angle.

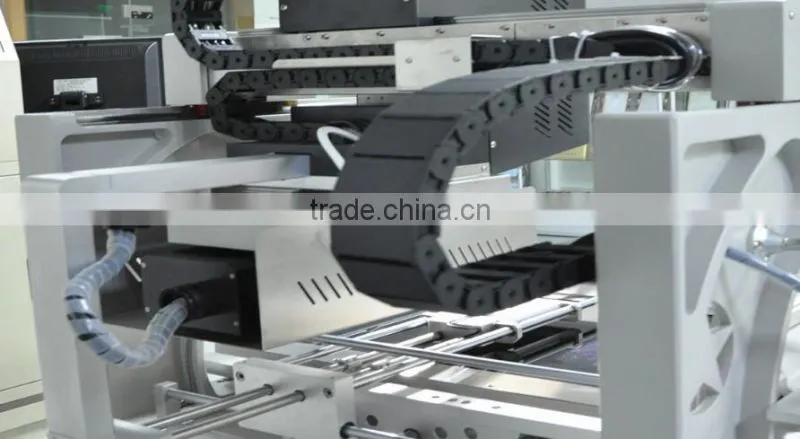

12)Driven by the servo motor,the integrative hot air head can store 20 groups of different BGA
heating points and register marks.
Machine Parts

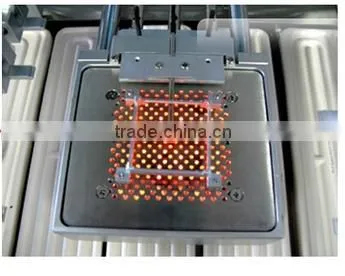

Name: Lower mix heater
Original: China
Bottom heating is mixed heation system with hot gas and IR,
In vacuum pump,360' rotation in any angle by motor.
Machine parts

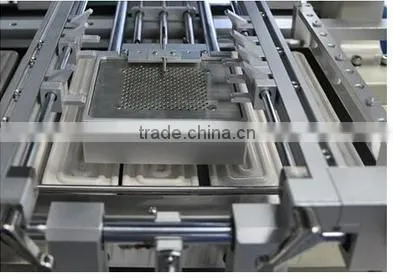

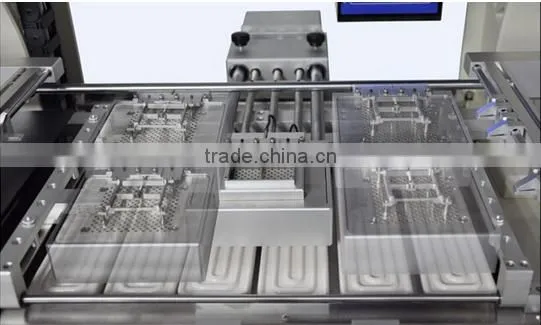

Name: Bottom heating zone
Original: China
Large IR area heater from the bottom will heat the PCB evenly to avoid deformation.
Machine Parts
Name: Nitregen&Air port
Original: China
leave nitrogen protection, saving nitrogen to save cost .
Machine parts

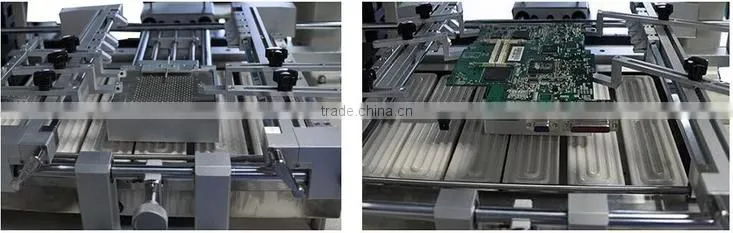

Name: Flexile jigs
Original: China
Easy to fix the PCB with different components
Automatic soldering and mounting
Flexible and PC irregular clamps

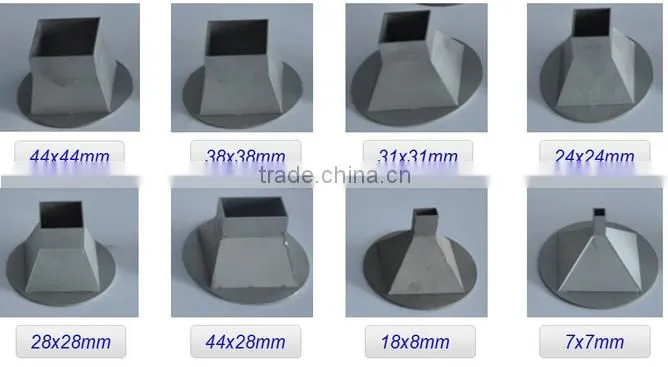

Equipped with different nozzles for your choose
Brand Shuttle Star since 2000, it is the first one to do China-made BGA Rework Station;
Shuttle Star is the only BGA rework machine manufacturer who can offer digital signal/digital imaging system;
Shuttle Star can reach 0.002mm mounting precision,i think it is world's advanced level;
Shuttle Star have hundreds brand customers and awards;
Shuttle Star know well the design struction and principal for bga rework. what's more, 80% China suppliers are originated from Shuttlestar;
Shuttle Star always change ,we can do better in the future;
Warranty
1 Year Manufacturers warranty except for wear items like nozzles, tips and elements. Service is done in China .
Call us if you have any questions :
+86 15112437255
Payments
TT/ PayPal / Western Union is our preferred method of payment. After your payment, we will deliver machines within 7 working days.
Packed in wooden cases.
Transportation way can choose, express, shipping, air freight, freight charges shall be borne by buyer.
1.Are you factory?
Yes , we are factory.
2.How about warranty?
One year
3.Why should I choose you?
Shuttler star , the first one bga rework station in China ,expert in this field 17 years, the quality and technology have been recognized by home and aboard.
4.How to contact you?
Wechat: 15112437255
Whatsapp: +86 15112437255
Tel: +86 15112437255
