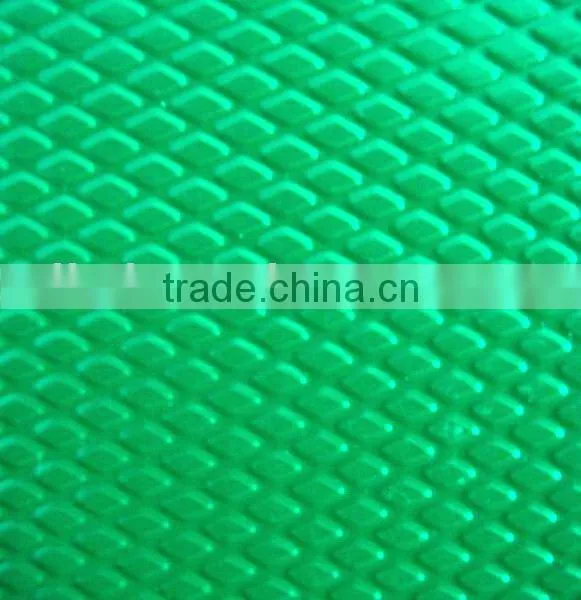

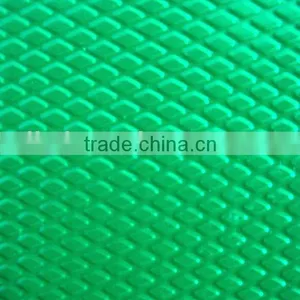

Help CenterDiamond Embossed Aluminum Coil
Related Products
-
Aluminum Roofing Coil Mill Finish Aluminum CoilUS$ 2,500 - 4,000MOQ: 10 Tons -
PE Coated Aluminum Coil for Aluminum Composite PanelUS$ 2,500 - 4,500MOQ: 5 Tons
-
Color Coated Aluminium Coil 1100US$ 2,500 - 4,500MOQ: 10 Tons
-
Pre Painted Aluminum Coil for ACPUS$ 2,500 - 4,500MOQ: 5 Tons
-
Embossed Coated Aluminum Coil for Roofing SheetUS$ 2,500 - 4,500MOQ: 10 Tons
Specifications
thickness:0.024mm-0.8mmwidth:1240mm
different colors
variety of paint available; Acrylic, PE ,PVDF
high erosim resistance
Specifications:
01) Alloy: A3003 A1100 A8011 A1050etc
02) Aluminum thickness: 0.024mm~0.80mm
03) Aluminum max width:1600mm
Standard width: 1240mm
Special width such as 1300mm, 1520mm, 1570mm, 1595mm are also available
04) Coil's standard diameter: 1200mm
Interior diameter:150mm,405mm or 505mm
05) weight: 2.5T/coil 3.0 T/coil
06) Coating finish: PVDF, POLYESTER, ACRYLIC
07) Gloss: meet the customer requirement
08) Total coating thickness:
PVDF coating: more than 25 micron
Polyester coating: more than 18 micron
09) Coating hardness (pencil hardness) more than 2H
10) coating adhesive : no lower than first grade
11) Impact resistance: No cracking and peeling (50kg/cm ,ASTMD-2794:1993)
12) Flexibility (T-bend): 2T
13) MEK resistance: more than 100
14) Bottom side aluminum sheet is coated with protective polyester material, thickness more than 6 micron
15) outer packing ;export standard , wooden plate .
Applications:
Used to manufacture decorative materials, such as aluminum veneers, aluminum plastic panels, perforated panels, and clean plates, etc:
1) Exterior applications: wall cladding, facades, roofs and canopies, tunnels, column covers or renovations
2) Interior applications: wall cladding, ceilings, bathrooms, kitchens and balconies
3) Advertisement and market applications: display platforms
