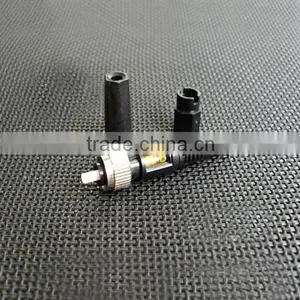

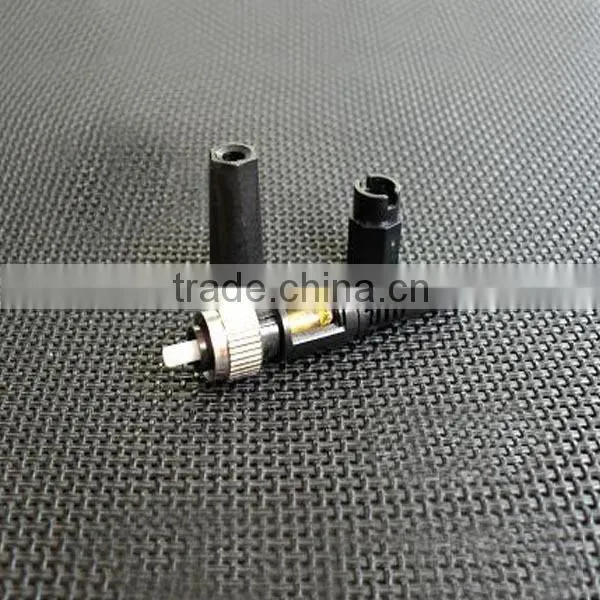

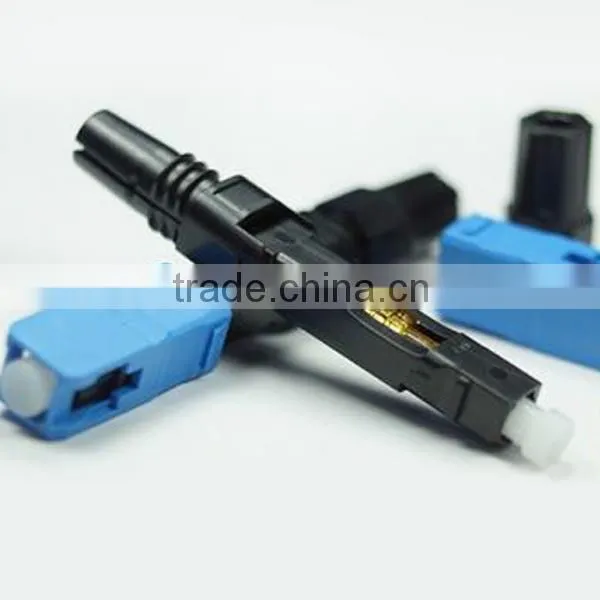

Help CenterFiber Optic Field Installation Ftth Fast Connector
Related Products
-
FTTH Fiber Optic Cable Termination Box FCST02102US$ 0.45 - 0.56MOQ: 50 Pieces -
China Factory Supply FTTH Fiber Optical CableUS$ 1 - 20MOQ: 1 Piece
-
FCST02106 FTTH Indoor Fiber Optic Function Of Terminal Box, Fiber Optic Distribution Box, Fiber Box, Fiber Optical Joint BoxUS$ 1 - 5MOQ: 1 Piece
-
Fiber Optic Rack Mounting Termination Box FTT-H202/fiber Optic Termination Box/Fiber BoxUS$ 1 - 6MOQ: 1 Piece
-
FCST02201 FTTH Fiber Optical Cable Connection Box , Terminal Box, Optical Fiber Terminal BoxUS$ 1 - 6MOQ: 1 Piece
Features:
1. Field assemble; use few tool; easy to operate; only need less than one minute for installation.
2. The whole progress can be visualized. Optic fiber run in controlled range. Successful rate can reach the limit value 100%.
3. Can make the patch cord at any length on site, and no need to adhesive and polish.
4. No need to hot melt and save the power supplies. With excellent optical properties, it can be installed repeated over 10 times.
Application:
1.Applicable to the 0.9 tight boot and 2.0x3.0 drop cable.
2.The field assembling time <1.0 minute
3.Tensile strength: 0.9 boot ≥15N; 2.0x3.0 cable ≥20N
4.Working temperature: -40°C~+65°C
5.Sufficiently tolerant the low temperature, high temperature, moist heat, salt fog, and also endures the test for vibration, drop, and mechanical durability.
6.Can be dropped from 3-5 m high. The index is stable after repeated 3 times.
Specifications:
Item |
FTT-FCP-FUP3x2 |
FTT-FCP-SUP3x2 |
FTT-FCP-LUP3x2 |
FTT-FCP-TUP3x2 |
|||
Applicable cable |
3.0mm, 2.0mm; 0.9mm; 0.25mm; 3.1x2.0 drop cable |
||||||
fiber diameter |
125um |
||||||
Coating diameter |
250um |
||||||
Fiber mode |
Single mode or multimode |
||||||
Operating time |
≤60S |
||||||
Insertion loss |
≤0.5dB(1310nm or 1550nm) |
||||||
Return loss |
≥45dB |
||||||
Working temperature |
-40°C ~+70°C |
||||||
Strength tension |
>30N |
>20N |
/ |
/ |
|||
- Packing: By carton
- Shipping: BY AIR, BY SEA,BY TNT,BY DHL,BY FEDEX.
OEM,FTTH consultant, after--sale service,Micro cable Solution consultant(design).
- Principle: Professional; Accurate; Prompt; Reliable.
- Manufacturing Capacity:200000 pieces/week.
- Equipment:Injection molding machine;Punching machine;Guillotine Shear;CNC punching machine; CNC bending machine;
- Exhibition: ECOC,OFC, Local Exhibition.
- R & D department:System Engineer; Technical Support Engineer; Communication Engineer; Test Engineer.;Data-Base Administrator;Program Engineer;
- Partner: China Mobile.HuaWei. China Telecom.ZTE.Tyco,3M.
- Market: Europe, South American,North American,Asia,South Africa.
- Payment item:L/C,T/T,Western Union,Paypal.
- Transaction item:FOB,C&F,CIF,EXW.
