Embedded type Field Assembly Optical Connector,Field Connector/fiber optic connector

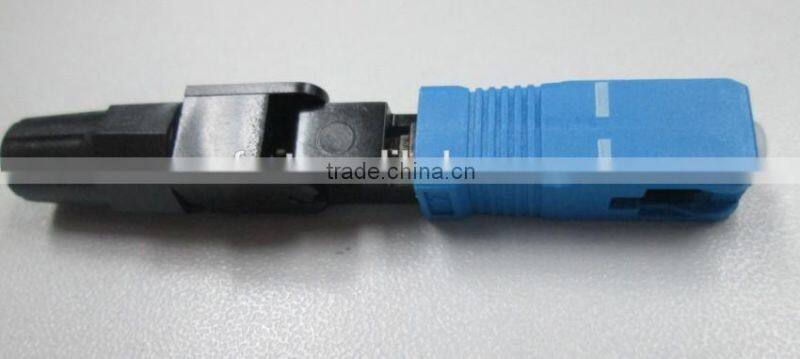

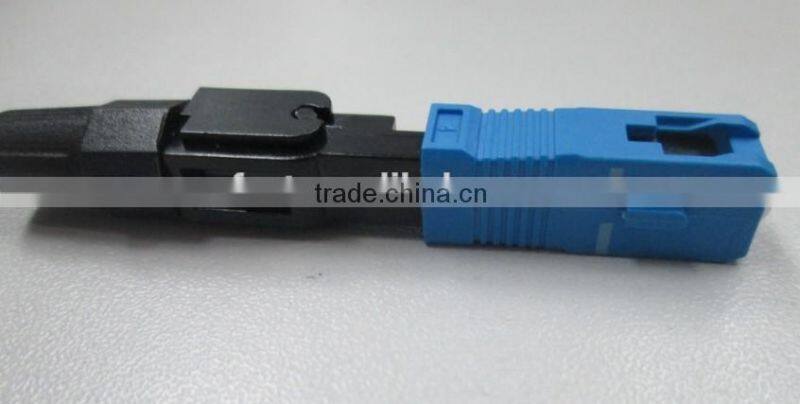

This optical SC fast connector has a piece of prepared single mode fiber installed in ferrule.
The advantage of such design is a possibility to reinstall the connector in case of unsuccessful installation. The connector is also universal - it can be used for 3mm round cable and for 2x3.1mm flat cable.
Features:
- Applicable for 3.1 x 2.0 mm Drop cable
- Optical fiber diameter 125μm (657A & 657B)
- Tight buffer diameter (μm) 250μm
- Fiber mode Single mode
- Adopt pre-set fiber to ensure the performance
- Access point fine-tuning technology to ensure the success rate and the I.L and R.L
- The adjustable and exclusive mechanic splice methods ensure the stability of the splice fiber node and the performance will be same if the matching liquid is lost.
Specifications:
Item |
FTT-FCH-SA300 |
FTT-FCH-SU300 |
FTT-FCY-SU302 |
Applicable cable |
3.1x2.0 drop cable; 3.0mm |
3.1x2.0 drop cable 3.0mm |
|
fiber diameter |
125um |
||
Coating diameter |
250um |
||
Fiber mode |
Single mode or multimode |
||
Operating time |
≤30S |
||
Insertion loss |
≤0.5dB(1310nm or 1550nm) |
≤0.3dB(1310nm or 1550nm) |
|
Return loss |
≥55dB |
≥45dB |
|
Working temperature |
-40°C ~+70°C |
||
Repeatability |
Can be repeated |
||
Repeated times |
≥5 times |
||
- Packing: By carton
- Shipping: BY AIR, BY SEA,BY TNT,BY DHL,BY FEDEX.
OEM,FTTH consultant, after--sale service,Micro cable Solution consultant(design).
- Principle: Professional; Accurate; Prompt; Reliable.
- Manufacturing Capacity:200000 pieces/week.
- Equipment:Injection molding machine;Punching machine;Guillotine Shear;CNC punching machine; CNC bending machine;
- Exhibition: ECOC,OFC, Local Exhibition.
- R & D department:System Engineer; Technical Support Engineer; Communication Engineer; Test Engineer.;Data-Base Administrator;Program Engineer;
- Partner: China Mobile.HuaWei. China Telecom.ZTE.Tyco,3M.
- Market: Europe, South American,North American,Asia,South Africa.
- Payment item:L/C,T/T,Western Union,Paypal.
- Transaction item:FOB,C&F,CIF,EXW.
